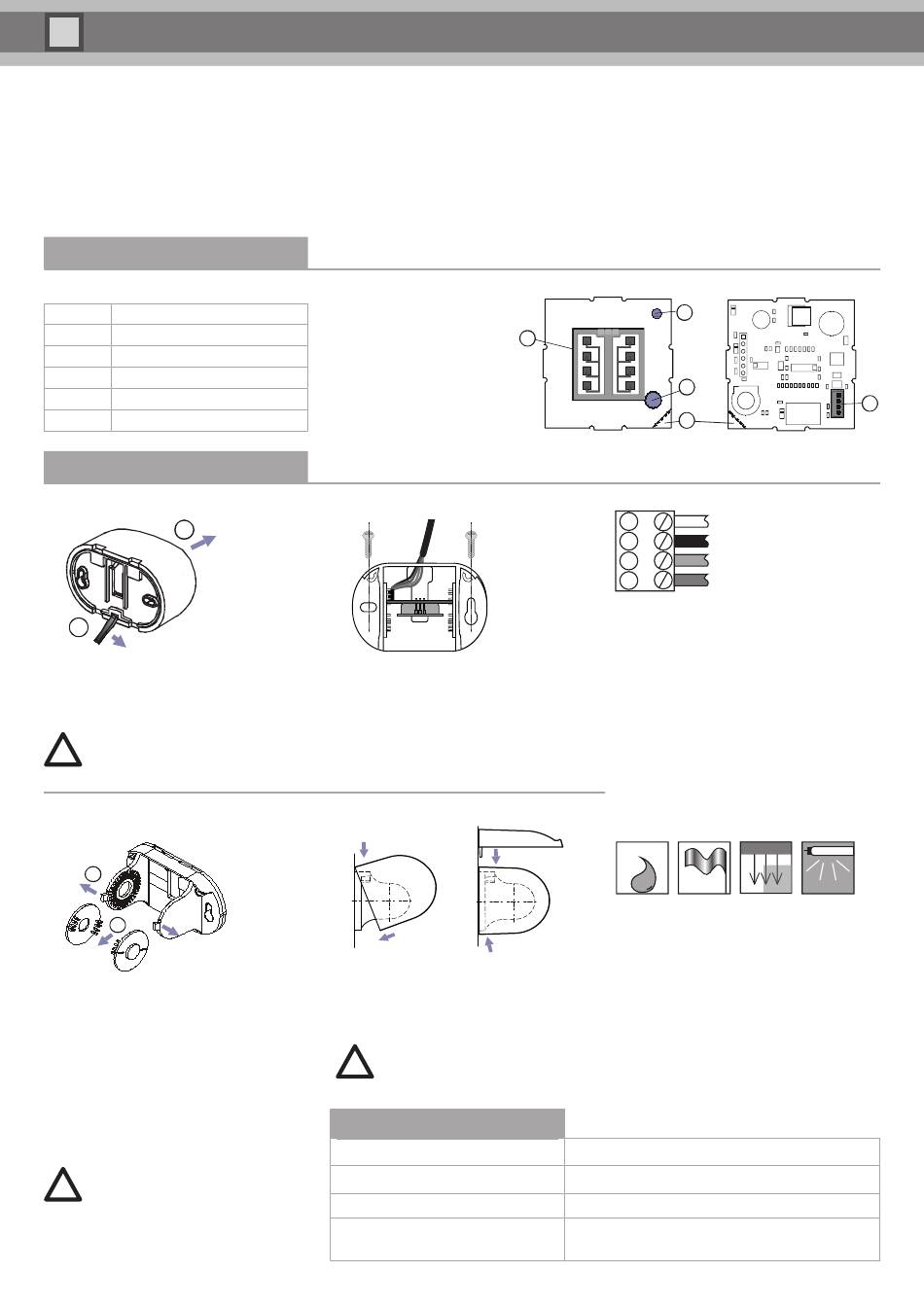

Radec-M-T
Brief Instructions: Radar Motion Sensor for Detecting People at Automatic Doors
General Information for Your Safety
This device must be installed and maintained only by qualified, trained personnel.
Observe the safety requirements of EN 60950-1. Operate the sensor only with an SELV supply with a limited
output of up to 100 W. Use a T2.5 A fuse, for example, to reliably limit the power output.
Product Information
Scope of Delivery
Quantity
Designation
1
Sensor RaDec-M...
1
Connection cable with plug
2
Screws for mounting
1
Mounting instructions
1
Self-adhesive drilling template
Installation
Opening the Device
2
1
1.
Insert the screwdriver into the opening
provided and carefully push open the cover.
2.
Pull the cover forward and remove.
!
Do not open the housing from the top.
Replacing or Turning the Antenna
to change the antenna characteristics
1
2
1.
Push apart the tabs on the arms of the base
plate.
2.
Carefully remove the PCB and locking discs.
3.
Move the locking discs to the new position
on the PCB.
4.
Push apart the tabs on the arms of the base
plate.
5.
Re-insert the PCB with locking discs. The
locking discs must engage.
Do not touch any electronic components.
!
Do not use any metallic tools.
Operating Elements
Antenna
LED (red)
Potentiometer
Predetermined breakaway
Relay switching mode
Connecting plug
Mounting the Device
1.
Attach the self-adhesive template and drill
according to the markings on the template.
2.
Pull the cable through the opening provided.
3.
Fasten the base plate using the screws
(screws are in the housing).
4.
Insert and connect the cable.
Closing the Device
1.
Attach the cover on the top and press down
until it snaps into place.
2.
Attach weather protective cover if required
(see accessories).
* Installation of the RaDec Weather Cap
!
is recommended (see accessories).
Troubleshooting
Fault
Door is detected
LED not lit up
Sensor reacts to the slightest influences such
as rain, vibrations, or reflections.
60,69
72,79
Door opens for no apparent reason
2
1
3
4
Connecting the Radar
1
2
3
5
4
Connector assignment for RaDec-M-T:
AC/DC supply (white)
AC/DC supply (black)
Relay contact 1 (red)
Relay contact 2 (green)
Installation Information
•
Protect the radar from rain*.
•
Avoid placing moving objects in the detec-
tion area (fans, plants, trees, flags).
•
Do not cover the radar. Only install the radar
behind appropriate covers. Mechanically
operated drive components may affect the
radar.
•
Avoid fluorescent lights in the detection field.
Corrective action
Decrease the size of the detection area
Change inclination angle
No power supply, device not functioning
Decrease the size of the detection area
English
2
1
3
4
5
Connect the
pre-assembled radar plug
to the connection socket.
