WF-T738H/E
Power Indicator
2. FM Stereo Indicator
3. Tape Mode Indicators
Tape Mode Switch
4.
Tape 2) Pause Button
5.
6. Tape 1, 2) Stop/Eject
7. Tape 2) Fast Forward
8. Tape 2) Rewind Button
9. Tape I, 2) Play Button
10. Tape 2) Record Button
Tape Running and Tape 2 Pause Indicators
II.
12. Cassette Compartment
13. Volume Control
14. Balance Control
Graphic Equalizer
15.
Power Switch
16.
Mixing Microphone Socket
17.
18. Headph ones Socket
19. Tape Selector Switch
20. Dubbing Speed Switch
21. Built-in Microphone
22. Function Switches
(Do not press more than two FUNCTION switches at
once.)
23.
Radio Band Selector
24. FM Mode Switch
25.
Tuning Control
Speaker Release Lever
26.
FM/SW Telescopic Rod Antenna
27.
28. External Speaker Terminals
29. Speaker Release Lever
CD/Line Input Sockets
30.
31. Battery Compartment
32. Beat Cancel Switch
33. AC Power Supply Socket
Before operating the unit on mains, check the preset voltage.
If the vol tage is different from your local voltage, adjust the
voltage as follows: Slide the AC power supply socket cover by
slightly loosing the screw to the visible indication
of your local voltage.

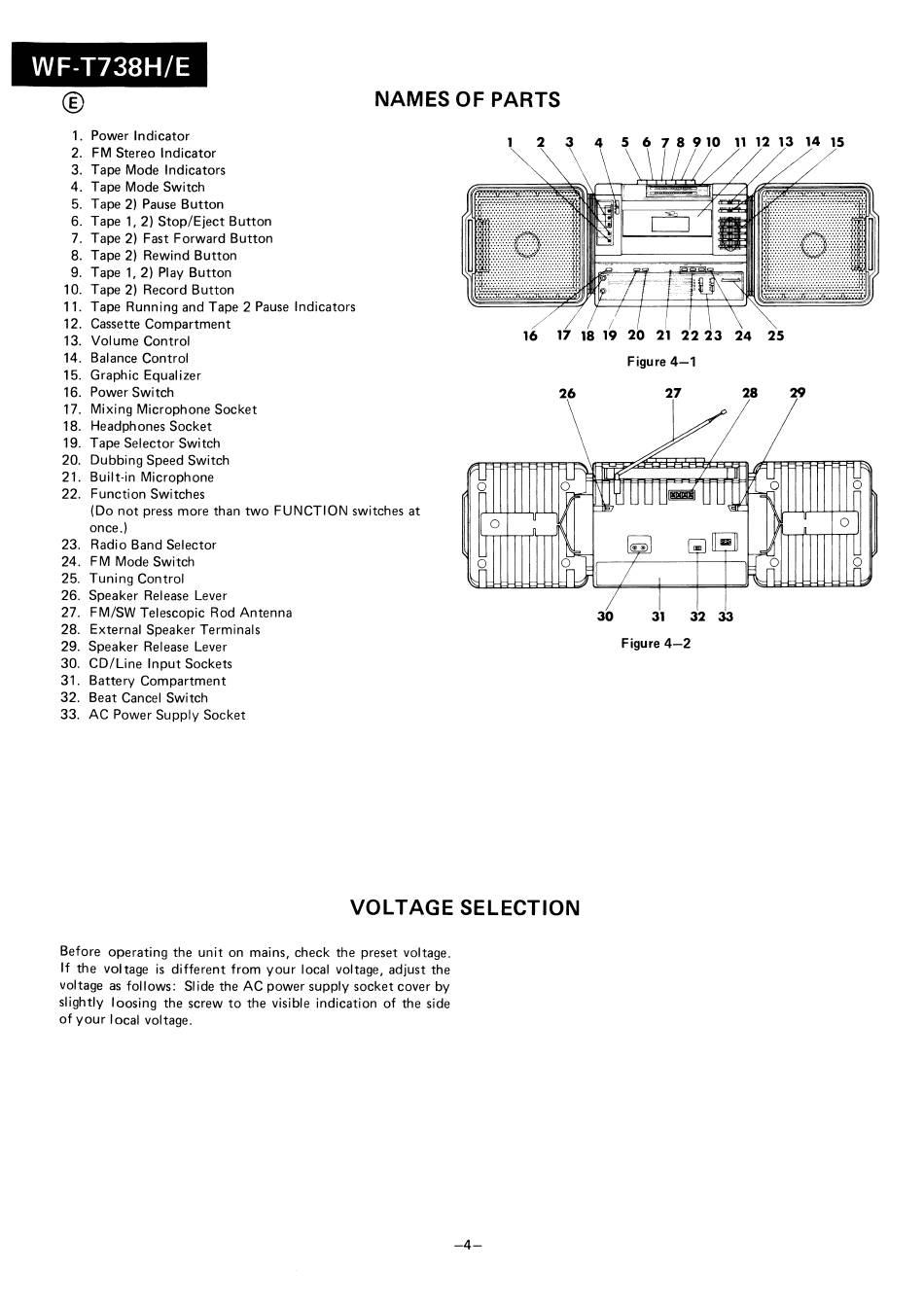

NAMES
Button
Button
VOLTAGE
of the side
OF PARTS
