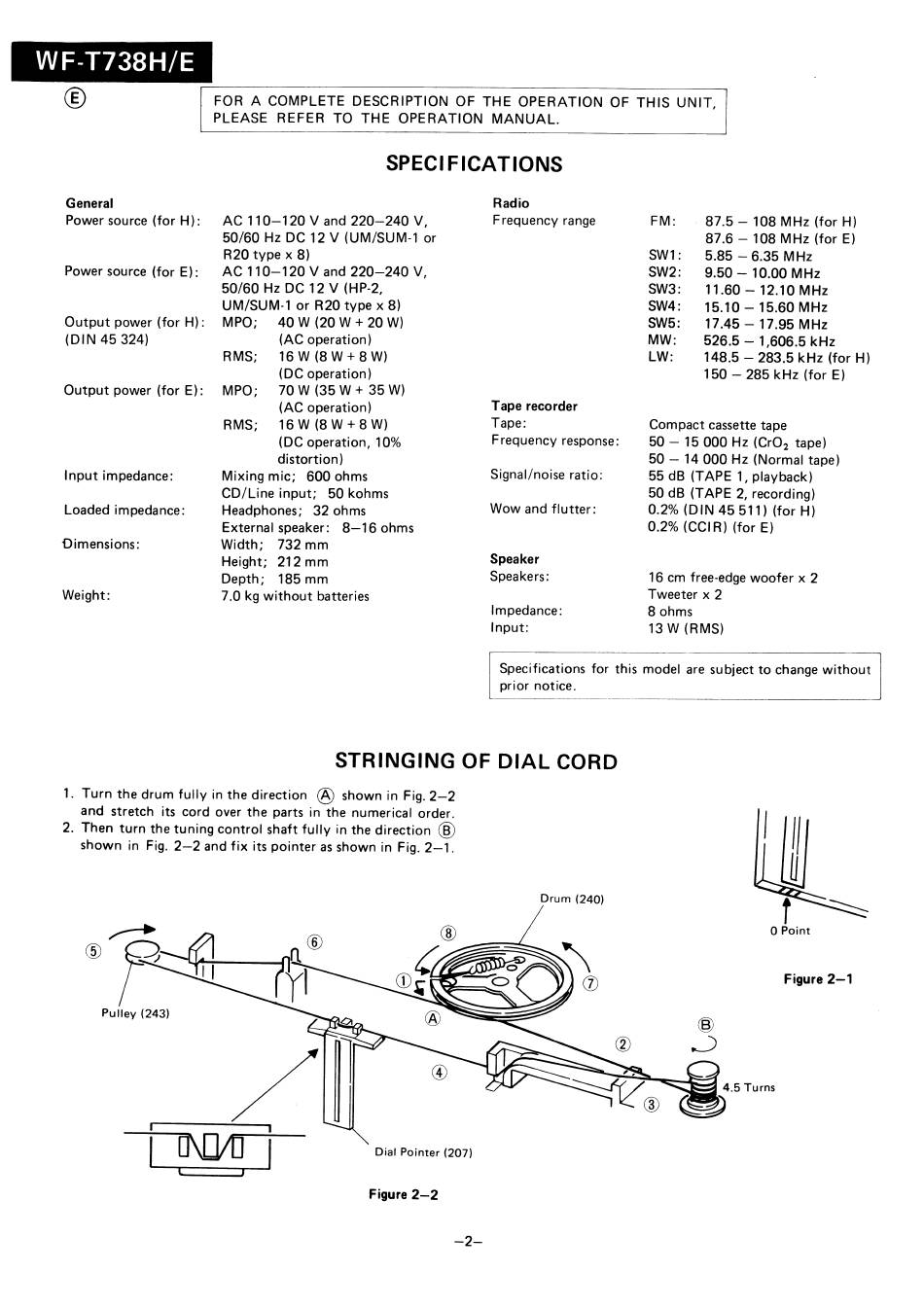

WF-T738H/E
General
Power source (for H):
Power source (for E) •
Output power (for H) :
(DIN 45 324)
Output power (for E):
Input impedance:
Loaded impedance:
Dimensions:
Weight:
1. Turn the drum fully in the direction A shown in Fig.2—2
and stretch its cord over the parts in the numerical order.
2. Then turn the tuning control shaft fully in the direction
shown in Fig. 2—2andfix its pointer asshown in Fig. 2—1
II
Pulley (243)
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT,
PLEASE REFER TO THE
SPECIFICATIONS
AC 110-120 V and 220-240
50/60 Hz DC 12 V (UM/SUM-I
R20 type x 8)
AC 110—120 V and 220-240
50/60 Hz DC 12 V (HP-2,
UM/SUM-I or R20 type x 8)
MPO; 40 w (20 w + 20 W)
(AC operation)
RMS; 16 w (8W+8W)
(DC operation)
MPO; 70 w (35 w+ 35 w)
(AC operation)
16 w (8 w +8 W)
RMS;
(DC operation, 10%
distortion)
Mixing mic; 600 ohms
CD/ Line input; 50 kohms
Headphones; 32 ohms
External speaker: 8—16 ohms
Width; 732 mm
Height; 212 mm
Depth; 185 mm
7.0 kg without batteries
STRINGING
Dial Pointer (207)
Figure 2-2
OPERATION MANUAL.
Radio
Frequency range
V,
or
V,
Tape recorder
Tape:
Frequency response:
Signal/noise ratio:
Wow and flutter:
Speaker
Speakers:
Impedance:
Input:
Specifications
prior notice.
OF DIAL CORD
B
Drum (240)
O)
-2-
87.5 - 108 MHz (for H)
87.6 — 108 MHz (for E)
SWI : 5.85 — 6.35 MHz
SW2: 9.50 — 10.00
SW3:
11.60 — 12.10
SW4:
15.10 - 15.60
SW5:
17.45 - 17.95 MHz
MW: 526.5 - 1,606.5 kHz
LW:
148.5 - 283.5 kHz (for H)
150 — 285 kHz (for E)
Compact cassette tape
50 — 15 OOOHz (Cr02 tape)
50 — 14 000 Hz (Normal tape)
55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording)
0.2% (DIN 45 511) (for H)
0.2% (CCIR) (for E)
16 cm free-edge woofer x 2
Tweeter x 2
8 ohms
13 w (RMS)
for this model are subject to change without
(9
4.5 Turns
MHz
MHz
MHz
O Point
Figure 2—1
