TDS CALIBRATION (MC810 with MA811 probe)
Preparation
Always use fresh calibration solutions and perform
electrode maintenance prior to calibration.
Calibration can be performed using one of the standard
solutions: 1382 ppm for TDS factor 0.5 or 1500 ppm for TDS
factor 0.7.
If possible, use plastic beakers to minimize any EMC
interferences. For accurate calibration and to minimize
cross-contamination, use two clean beakers, one for rinsing
the probes and one for calibration.
Pour sufficient calibration solution to cover the sensing
portion of the probes (4 cm / 1 ½").
Procedure
1. Immerse the probes in the rinse beaker. Raise and lower
several times to ensure the entire cell area is filled with
solution. Discard this solution.
2. Pour calibration solution into the calibration beaker.
3. Dislodge any bubbles off the two electrodes (prongs).
4. Center the probes in beaker away from beaker walls.
5. Wait a few minutes for the measurement to stabilize.
6. Use the calibration screwdriver to adjust the ppm trimmer
until the reading shows "1380" ppm (with factor 0.5) or
"1500" ppm (with factor 0.7).
EC CALIBRATION (MC811 with MA812 probe)
Follow the TDS calibration procedure steps and use
1413 µS/cm (M10031 ) calibration solution.
When the mS readout shows "1.41", calibration is complete.
MEASUREMENTS
1. Remove the pH electrode protective cap.
2. Immerse the tips of the probes at least 4cm (1½") into the
sample. Center the probes in beaker away from beaker walls.
4 cm
(1 ")
3. The three readouts will display all parameters values
simultaneously.
Note: Initial variation in readings may be due to the pH
electrode conditioning and to the temperature compensation
of TDS / EC measurements. Allow readings to stabilize!
CARE & MAINTENANCE
pH Probe
 Inspect the BNC connector for corrosion. Replace the probe
if necessary.
 Inspect the electrode for scratches or cracks. If any present,
replace the probe.
 Remove the protective cap. If the bulb or junction are dry,
soak in MA9015 Electrode storage solution overnight.
If any salt deposits are present, rinse the probe with water.
 To ensure a quick response, the glass bulb and the junction
should not be allowed to dry. Store the electrode with a
few drops of MA9015 storage solution (or MA9004, pH 4.01
buffer solution) in the protective cap.
 Clean the electrode (at least once a week) by soaking it
for 30 minutes in MA9016 Electrode cleaning solution (or
M10016).
 After cleaning, rinse with tap water, then soak the electrode
in MA9015 storage solution for one hour before calibration.
 Never use distilled or deionized water to store pH electrodes.
TDS & EC Probes
Clean the sensor (at least once a month) by soaking it for 30
minutes in MA9016 Electrode cleaning solution (or M10016).
For a more thorough cleaning:
1. Clean the pins with fine sandpaper to loosen any debris.
2. Flush with tap water after cleaning.
After every series of measurements, rinse with tap water.
ACCESSORIES
Double junction, plastic body pH electrode
MA911B/2
with 2 m (6.6') cable and BNC connector
MA9004 pH 4.01 buffer solution (230 mL)
MA9007 pH 7.01 buffer solution (230 mL)
MA9010 pH 10.01 buffer solution (230 mL)
MA9015 Electrode storage solution (230 mL)
MA9016 Electrode cleaning solution (230 mL)
MA9061 1413 µS/cm calibration solution (230 mL)
MA9062 1382 ppm TDS calibration solution (230 mL)
M10004B pH 4.01 buffer solution (20 mL sachet, 25 pcs.)
M10007B pH 7.01 buffer solution (20 mL sachet, 25 pcs.)
M10010B pH 10.01 buffer solution (20 mL sachet, 25 pcs.)
1413 µS/cm calibration solution
M10031B
(20 mL sachet, 25 pcs.)
1382 ppm TDS calibration solution
M10032B
(20 mL sachet, 25 pcs.)
1500 ppm TDS calibration solution
M10442B
(20 mL sachet, 25 pcs.)
M10016B Electrode cleaning solution (20 mL sachet, 25 pcs.)
MA9310 12 Vdc adapter, 220 V
MA9311 12 Vdc adapter, 110 V
CERTIFICATION
Milwaukee instruments conform to the CE European
Directives.
Disposal of Electrical and Electronic Equipment. The
product should not be treated as household waste. Instead,
hand it over to the appropriate collection point for the
recycling of electrical and electronic equipment, which will
conserve natural resources.
Please note: proper product disposal prevents potential
negative consequences for the environment and human
health. For more information, contact your city, your local
household waste disposal service, or the place of purchase.
RECOMMENDATIONS FOR USERS
Before using this product, make sure it is entirely suitable for
your specific application and for the environment in which it
is used. Any variation introduced by the user to the supplied
equipment may degrade the instrument's performance. For
your and the instrument's safety do not use or store it in
hazardous environments.
WARRANTY
These instruments are warranted against defects in
materials and manufacturing for a period of 2 years from the
date of purchase. Electrodes and probes are warranted for
6 months. This warranty is limited to repair or free of charge
replacement if the instrument cannot be repaired. Damage
due to accidents, misuse, tampering or lack of prescribed
maintenance is not covered by warranty. If service is
required, contact your local Milwaukee Instruments
Technical Service. If the repair is not covered by the
warranty, you will be notified of the charges incurred. When
shipping any product, make sure it is properly packaged for
complete protection.
All rights are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner, Milwaukee
Instruments Inc., Rocky Mount, NC 27804 USA.
Milwaukee Instruments reserves the right to make improvements
in design, construction and appearance of its products without
advance notice.
SATISFACTION
GUARANTEED
ISTMC811 01/22-1
USER MANUAL

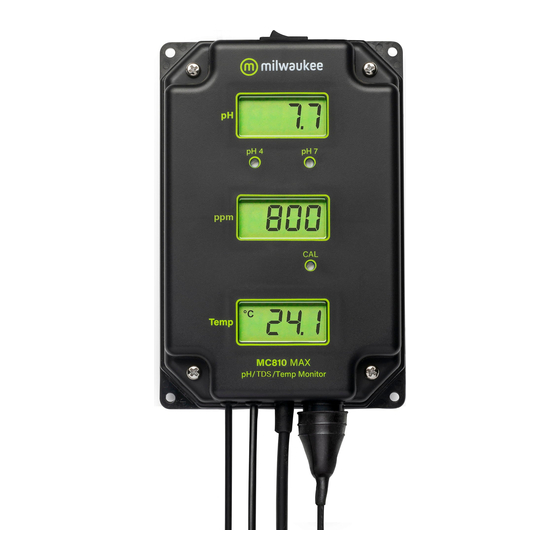

MC810 MAX
pH/TDS/Temperature
MC811 MAX
pH/EC/Temperature
Monitors
pH 4 pH 7
800
pH/TDS/Temp Monitor
pH 4
pH 7
pH/EC/Temp Monitor
