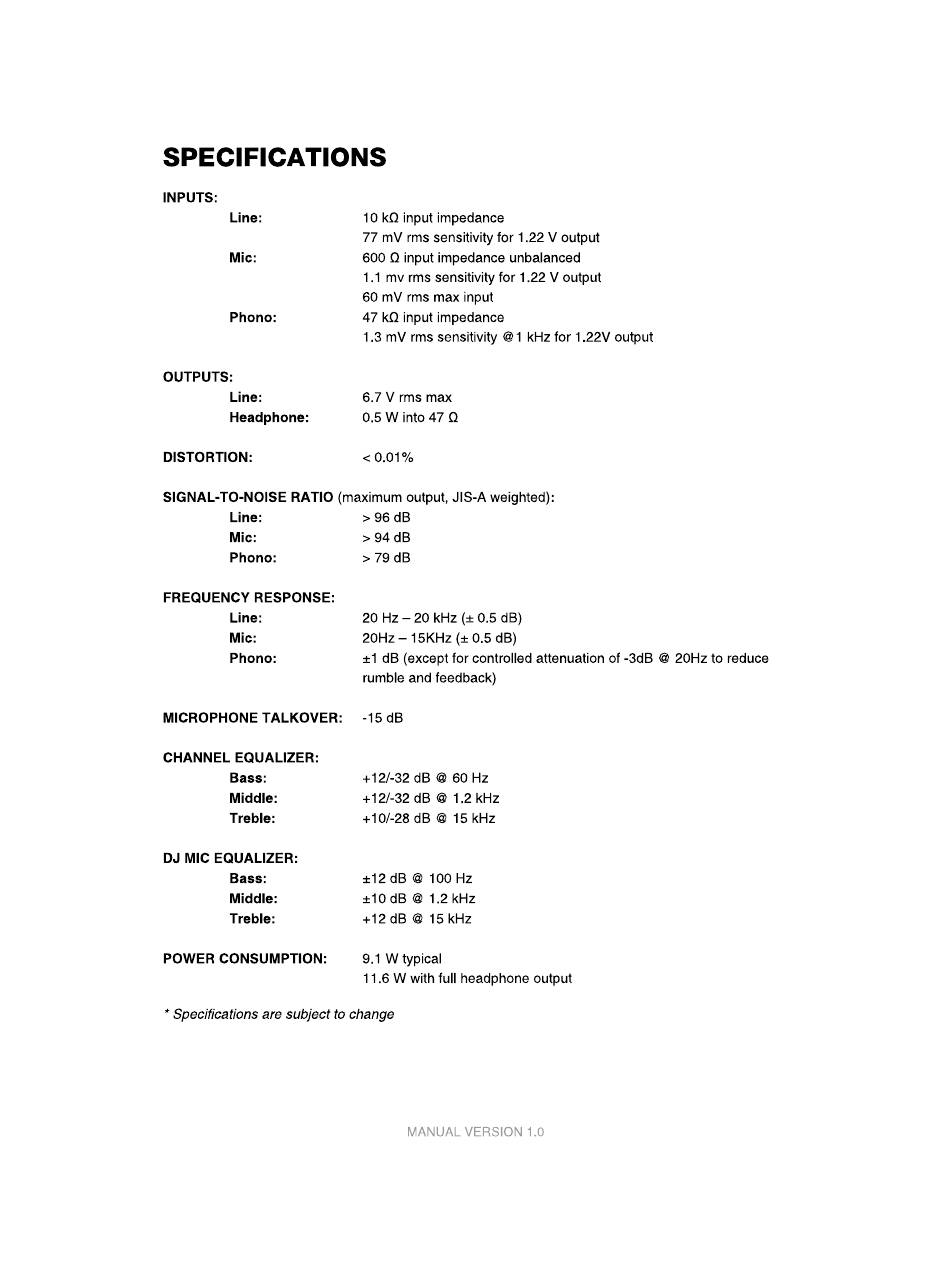

SPECIFICATIONS
INPUTS:
Line:
Mic:
Phono:
OUTPUTS:
Line:
Headphone:
DISTORTION:
SIGNAL-TO-NOISE RATIO (maximum output, JIS-A weighted):
Line:
Mic:
Phono:
FREQUENCY RESPONSE:
Line:
Mic:
Phono:
MICROPHONE TALKOVER:
CHANNEL EQUALIZER:
Bass:
Middle:
Treble:
DJ MIC EQUALIZER:
Bass:
Middle:
Treble:
POWER CONSUMPTION:
Specifications are subject to change
10 kQ input impedance
77 mV rms sensitivity for 1.22 V output
600 Q input impedance unbalanced
1.1 mv rms sensitivity for 1.22 V output
60 mV rms max input
47 kQ input impedance
1.3 mV rms sensitivity @1 kHz for 1.22V output
6.7 V rms max
0.5 W into 47 Q
< 0.01%
> 96 dB
> 94 dB
> 79 dB
20 Hz 20 kHz (±05 dB)
20Hz 15KHz 0.5 dB)
±I dB (except for controlled attenuation of -3dB @ 20Hz to reduce
rumble and feedback)
-15 dB
+12/-32 dB @ 60 Hz
+12/-32 dB @ 1.2 kHz
+10/-28 dB @ 15 kHz
dB @ 100 Hz
dB @ 1.2 kHz
+12 dB @ 15 kHz
9.1 W typical
11.6 W with full headphone output
MANUAL VERSION 1.0
