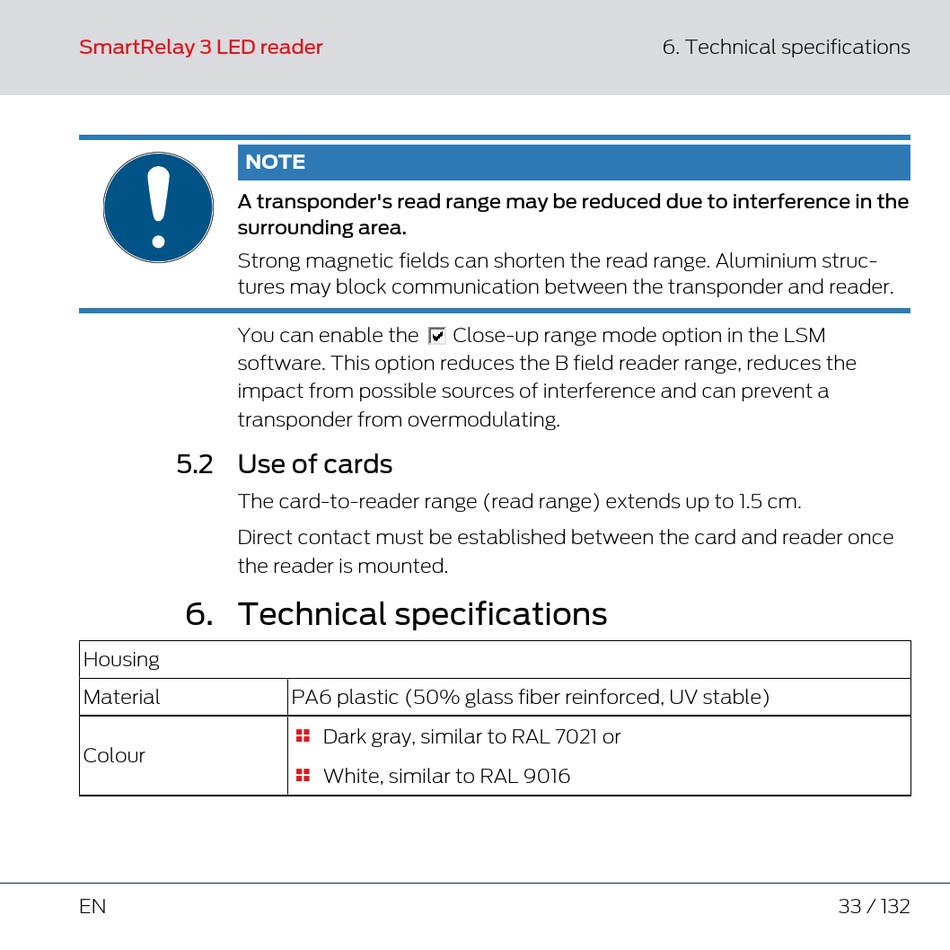

SmartRelay 3 LED reader
NOTE
A transponder's read range may be reduced due to interference in the
surrounding area.
Strong magnetic fields can shorten the read range. Aluminium struc-
tures may block communication between the transponder and reader.
You can enable the
software. This option reduces the B field reader range, reduces the
impact from possible sources of interference and can prevent a
transponder from overmodulating.
5.2 Use of cards
The card-to-reader range (read range) extends up to 1.5 cm.
Direct contact must be established between the card and reader once
the reader is mounted.
6. Technical specifications
Housing
Material
Colour
EN
Close-up range mode option in the LSM
PA6 plastic (50% glass fiber reinforced, UV stable)
Dark gray, similar to RAL 7021 or

White, similar to RAL 9016

6. Technical specifications
