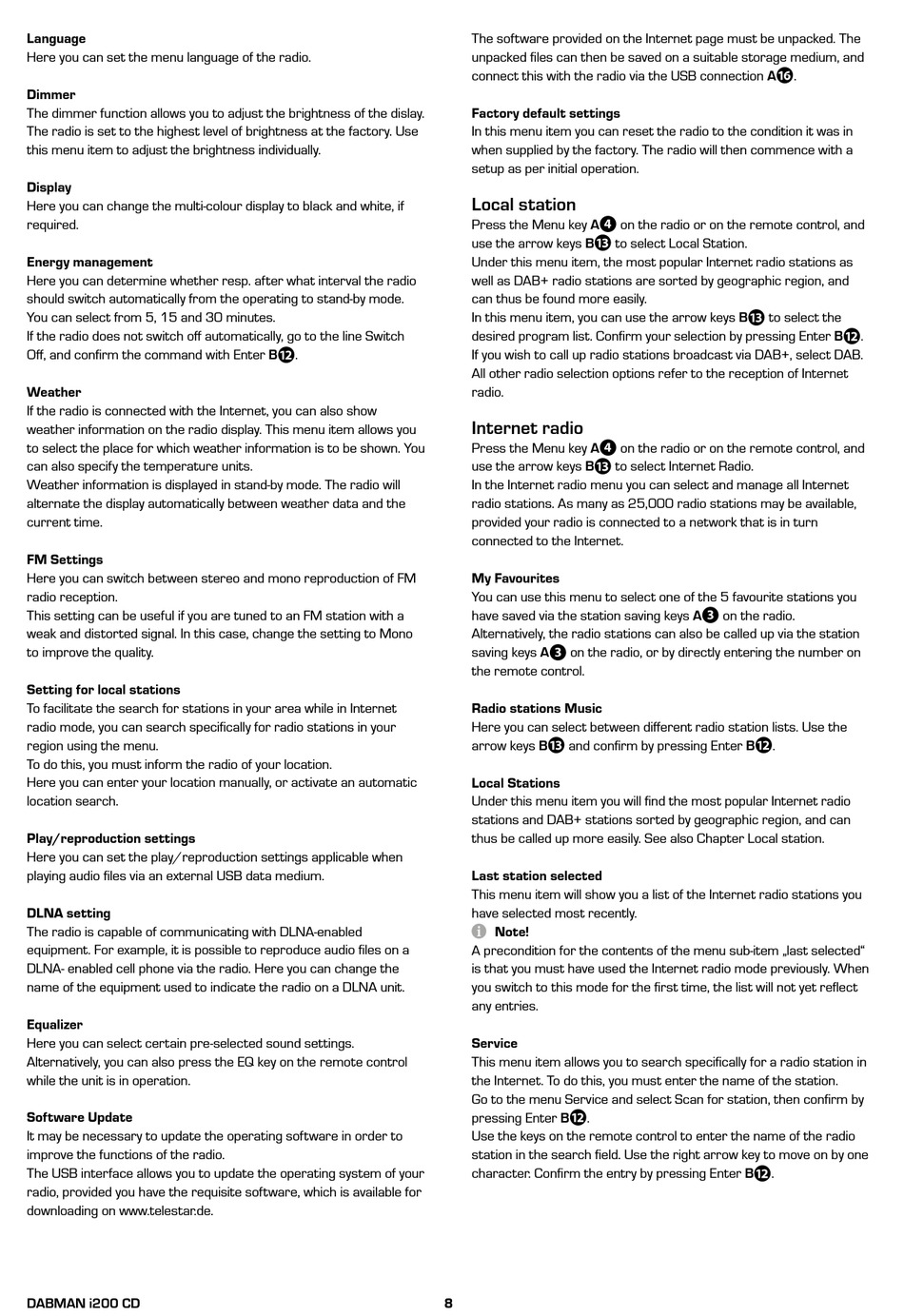

Imperial DABMAN i200 CD Betriebsanleitung Seite 8

Language
Here you can set the menu language of the radio.
Dimmer
The dimmer function allows you to adjust the brightness of the dislay.
The radio is set to the highest level of brightness at the factory. Use
this menu item to adjust the brightness individually.
Display
Here you can change the multi-colour display to black and white, if
required.
Energy management
Here you can determine whether resp. after what interval the radio
should switch automatically from the operating to stand-by mode.
You can select from 5, 15 and 30 minutes.
If the radio does not switch off automatically, go to the line Switch
Off, and confirm the command with Enter B
Weather
If the radio is connected with the Internet, you can also show
weather information on the radio display. This menu item allows you
to select the place for which weather information is to be shown. You
can also specify the temperature units.
Weather information is displayed in stand-by mode. The radio will
alternate the display automatically between weather data and the
current time.
FM Settings
Here you can switch between stereo and mono reproduction of FM
radio reception.
This setting can be useful if you are tuned to an FM station with a
weak and distorted signal. In this case, change the setting to Mono
to improve the quality.
Setting for local stations
To facilitate the search for stations in your area while in Internet
radio mode, you can search specifically for radio stations in your
region using the menu.
To do this, you must inform the radio of your location.
Here you can enter your location manually, or activate an automatic
location search.
Play/reproduction settings
Here you can set the play/reproduction settings applicable when
playing audio files via an external USB data medium.
DLNA setting
The radio is capable of communicating with DLNA-enabled
equipment. For example, it is possible to reproduce audio files on a
DLNA- enabled cell phone via the radio. Here you can change the
name of the equipment used to indicate the radio on a DLNA unit.
Equalizer
Here you can select certain pre-selected sound settings.
Alternatively, you can also press the EQ key on the remote control
while the unit is in operation.
Software Update
It may be necessary to update the operating software in order to
improve the functions of the radio.
The USB interface allows you to update the operating system of your
radio, provided you have the requisite software, which is available for
downloading on www.telestar.de.
DABMAN i200 CD
.
e
8
The software provided on the Internet page must be unpacked. The
unpacked files can then be saved on a suitable storage medium, and
connect this with the radio via the USB connection A
Factory default settings
In this menu item you can reset the radio to the condition it was in
when supplied by the factory. The radio will then commence with a
setup as per initial operation.
Local station
Press the Menu key A
on the radio or on the remote control, and
4
use the arrow keys B to select Local Station.
r
Under this menu item, the most popular Internet radio stations as
well as DAB+ radio stations are sorted by geographic region, and
can thus be found more easily.
In this menu item, you can use the arrow keys B
desired program list. Confirm your selection by pressing Enter B
If you wish to call up radio stations broadcast via DAB+, select DAB.
All other radio selection options refer to the reception of Internet
radio.
Internet radio
Press the Menu key A
on the radio or on the remote control, and
4
use the arrow keys B
to select Internet Radio.
r
In the Internet radio menu you can select and manage all Internet
radio stations. As many as 25,000 radio stations may be available,
provided your radio is connected to a network that is in turn
connected to the Internet.
My Favourites
You can use this menu to select one of the 5 favourite stations you
have saved via the station saving keys A
Alternatively, the radio stations can also be called up via the station
saving keys A
on the radio, or by directly entering the number on
3
the remote control.
Radio stations Music
Here you can select between different radio station lists. Use the
arrow keys B and confirm by pressing Enter B
r
Local Stations
Under this menu item you will find the most popular Internet radio
stations and DAB+ stations sorted by geographic region, and can
thus be called up more easily. See also Chapter Local station.
Last station selected
This menu item will show you a list of the Internet radio stations you
have selected most recently.
Note!
4
A precondition for the contents of the menu sub-item „last selected"
is that you must have used the Internet radio mode previously. When
you switch to this mode for the first time, the list will not yet reflect
any entries.
Service
This menu item allows you to search specifically for a radio station in
the Internet. To do this, you must enter the name of the station.
Go to the menu Service and select Scan for station, then confirm by
pressing Enter B
.
e
Use the keys on the remote control to enter the name of the radio
station in the search field. Use the right arrow key to move on by one
character. Confirm the entry by pressing Enter B
.
u
to select the
r
.
e
on the radio.
3
.
e
.
e
