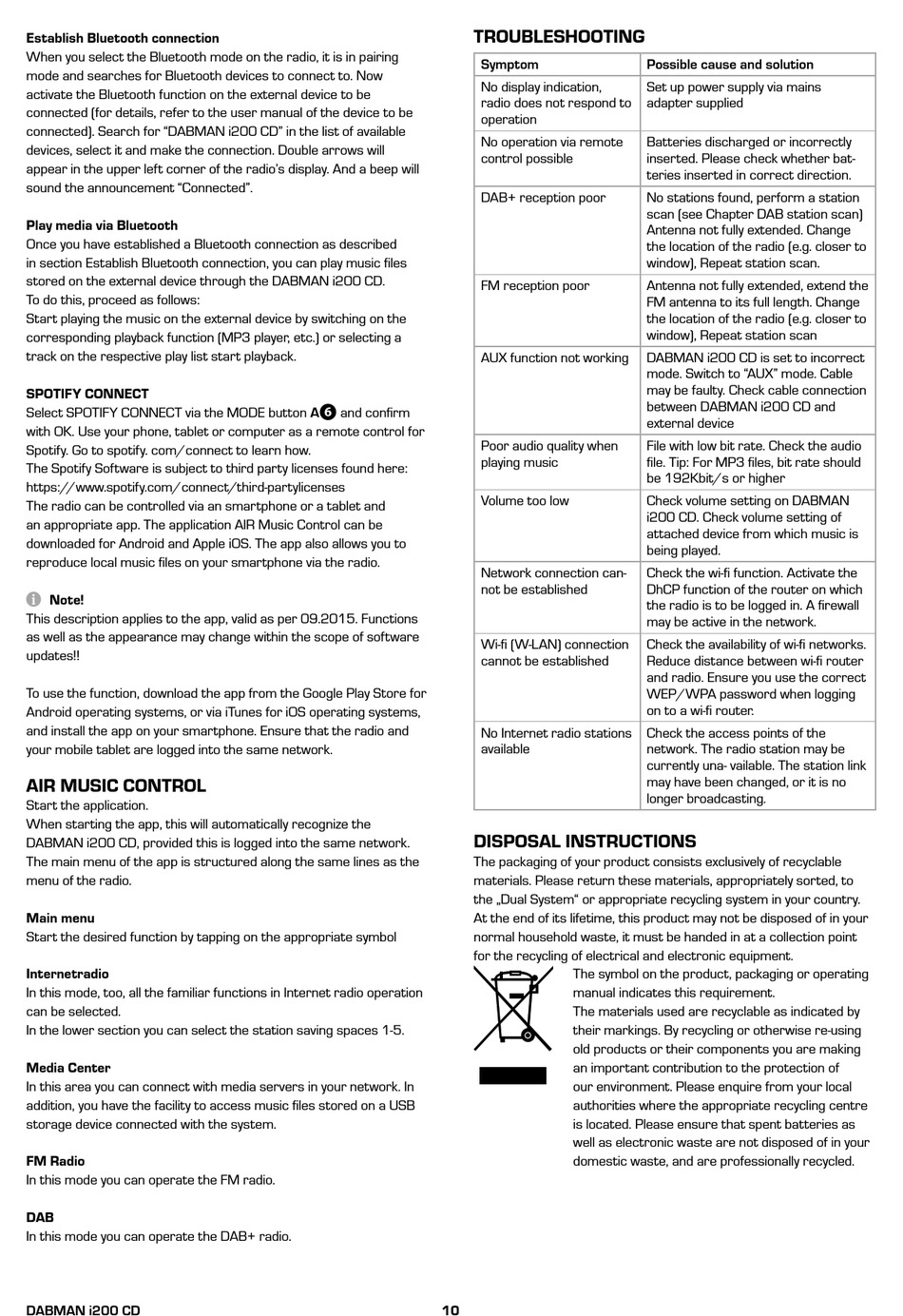

Establish Bluetooth connection
When you select the Bluetooth mode on the radio, it is in pairing
mode and searches for Bluetooth devices to connect to. Now
activate the Bluetooth function on the external device to be
connected (for details, refer to the user manual of the device to be
connected). Search for "DABMAN i200 CD" in the list of available
devices, select it and make the connection. Double arrows will
appear in the upper left corner of the radio's display. And a beep will
sound the announcement "Connected".
Play media via Bluetooth
Once you have established a Bluetooth connection as described
in section Establish Bluetooth connection, you can play music files
stored on the external device through the DABMAN i200 CD.
To do this, proceed as follows:
Start playing the music on the external device by switching on the
corresponding playback function (MP3 player, etc.) or selecting a
track on the respective play list start playback.
SPOTIFY CONNECT
Select SPOTIFY CONNECT via the MODE button A
with OK. Use your phone, tablet or computer as a remote control for
Spotify. Go to spotify. com/connect to learn how.
The Spotify Software is subject to third party licenses found here:
https://www.spotify.com/connect/third-partylicenses
The radio can be controlled via an smartphone or a tablet and
an appropriate app. The application AIR Music Control can be
downloaded for Android and Apple iOS. The app also allows you to
reproduce local music files on your smartphone via the radio.
Note!
4
This description applies to the app, valid as per 09.2015. Functions
as well as the appearance may change within the scope of software
updates!!
To use the function, download the app from the Google Play Store for
Android operating systems, or via iTunes for iOS operating systems,
and install the app on your smartphone. Ensure that the radio and
your mobile tablet are logged into the same network.
AIR MUSIC CONTROL
Start the application.
When starting the app, this will automatically recognize the
DABMAN i200 CD, provided this is logged into the same network.
The main menu of the app is structured along the same lines as the
menu of the radio.
Main menu
Start the desired function by tapping on the appropriate symbol
Internetradio
In this mode, too, all the familiar functions in Internet radio operation
can be selected.
In the lower section you can select the station saving spaces 1-5.
Media Center
In this area you can connect with media servers in your network. In
addition, you have the facility to access music files stored on a USB
storage device connected with the system.
FM Radio
In this mode you can operate the FM radio.
DAB
In this mode you can operate the DAB+ radio.
DABMAN i200 CD
TROUBLESHOOTING
Symptom
No display indication,
radio does not respond to
operation
No operation via remote
control possible
DAB+ reception poor
FM reception poor
AUX function not working
and confirm
6
Poor audio quality when
playing music
Volume too low
Network connection can-
not be established
Wi-fi (W-LAN) connection
cannot be established
No Internet radio stations
available
DISPOSAL INSTRUCTIONS
The packaging of your product consists exclusively of recyclable
materials. Please return these materials, appropriately sorted, to
the „Dual System" or appropriate recycling system in your country.
At the end of its lifetime, this product may not be disposed of in your
normal household waste, it must be handed in at a collection point
for the recycling of electrical and electronic equipment.
10
Possible cause and solution
Set up power supply via mains
adapter supplied
Batteries discharged or incorrectly
inserted. Please check whether bat-
teries inserted in correct direction.
No stations found, perform a station
scan (see Chapter DAB station scan)
Antenna not fully extended. Change
the location of the radio (e.g. closer to
window), Repeat station scan.
Antenna not fully extended, extend the
FM antenna to its full length. Change
the location of the radio (e.g. closer to
window), Repeat station scan
DABMAN i200 CD is set to incorrect
mode. Switch to "AUX" mode. Cable
may be faulty. Check cable connection
between DABMAN i200 CD and
external device
File with low bit rate. Check the audio
file. Tip: For MP3 files, bit rate should
be 192Kbit/s or higher
Check volume setting on DABMAN
i200 CD. Check volume setting of
attached device from which music is
being played.
Check the wi-fi function. Activate the
DhCP function of the router on which
the radio is to be logged in. A firewall
may be active in the network.
Check the availability of wi-fi networks.
Reduce distance between wi-fi router
and radio. Ensure you use the correct
WEP/WPA password when logging
on to a wi-fi router.
Check the access points of the
network. The radio station may be
currently una- vailable. The station link
may have been changed, or it is no
longer broadcasting.
The symbol on the product, packaging or operating
manual indicates this requirement.
The materials used are recyclable as indicated by
their markings. By recycling or otherwise re-using
old products or their components you are making
an important contribution to the protection of
our environment. Please enquire from your local
authorities where the appropriate recycling centre
is located. Please ensure that spent batteries as
well as electronic waste are not disposed of in your
domestic waste, and are professionally recycled.
