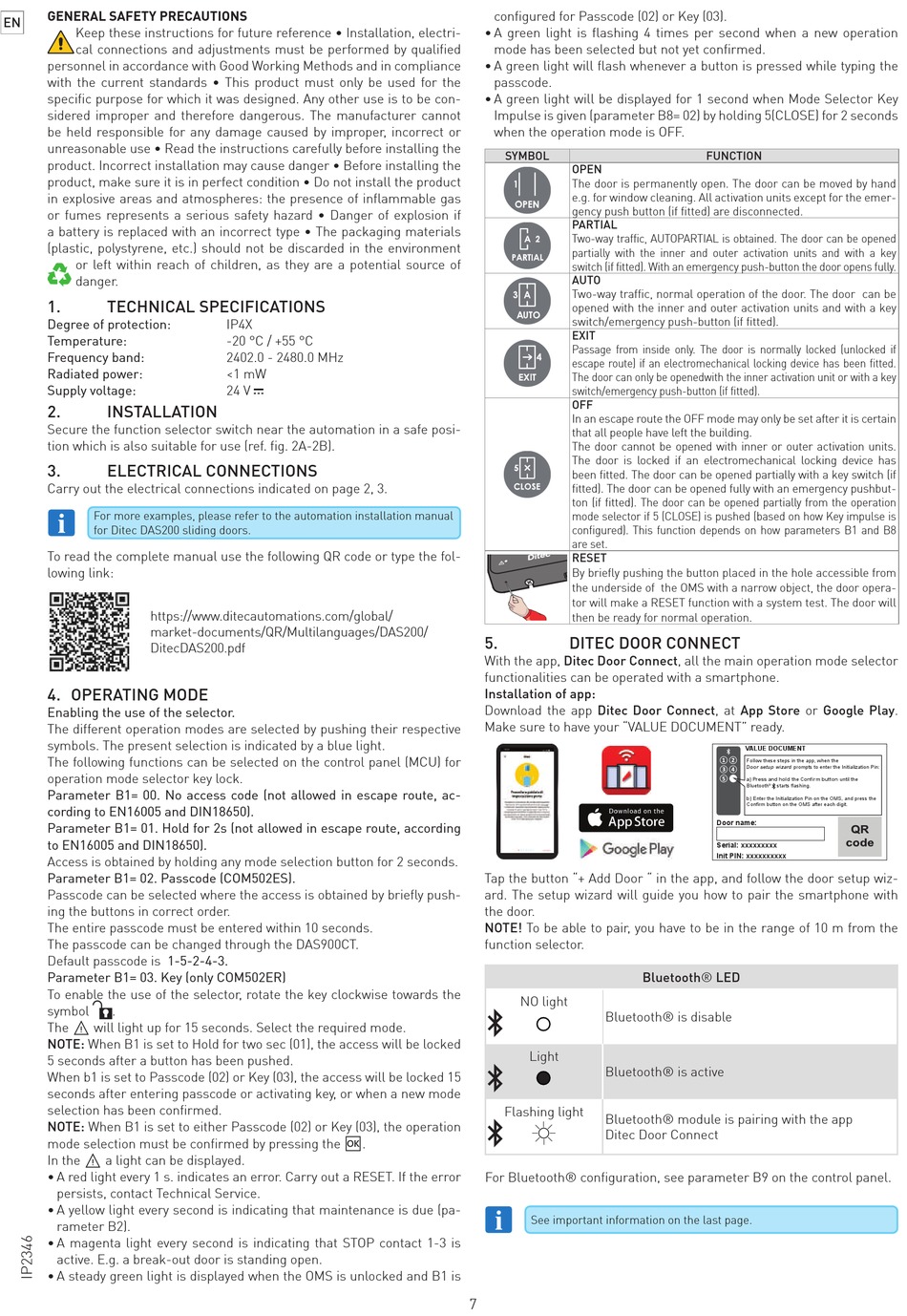

DITEC COM502ES Montageanleitung Seite 7

GENERAL SAFETY PRECAUTIONS
EN
Keep these instructions for future reference • Installation, electri-
cal connections and adjustments must be performed by qualified
personnel in accordance with Good Working Methods and in compliance
with the current standards • This product must only be used for the
specific purpose for which it was designed. Any other use is to be con-
sidered improper and therefore dangerous. The manufacturer cannot
be held responsible for any damage caused by improper, incorrect or
unreasonable use • Read the instructions carefully before installing the
product. Incorrect installation may cause danger • Before installing the
product, make sure it is in perfect condition • Do not install the product
in explosive areas and atmospheres: the presence of inflammable gas
or fumes represents a serious safety hazard • Danger of explosion if
a battery is replaced with an incorrect type • The packaging materials
(plastic, polystyrene, etc.) should not be discarded in the environment
or left within reach of children, as they are a potential source of
danger.
1. TECHNICAL SPECIFICATIONS
Degree of protection:
Temperature:
Frequency band:
Radiated power:
Supply voltage:
2. INSTALLATION
Secure the function selector switch near the automation in a safe posi-
tion which is also suitable for use (ref. fig. 2A-2B).
3. ELECTRICAL CONNECTIONS
Carry out the electrical connections indicated on page 2, 3.
For more examples, please refer to the automation installation manual
for Ditec DAS200 sliding doors.
To read the complete manual use the following QR code or type the fol-
lowing link:
https://www.ditecautomations.com/global/
market-documents/QR/Multilanguages/DAS200/
DitecDAS200.pdf
4. OPERATING MODE
Enabling the use of the selector.
The different operation modes are selected by pushing their respective
symbols. The present selection is indicated by a blue light.
The following functions can be selected on the control panel (MCU) for
operation mode selector key lock.
Parameter B1= 00. No access code (not allowed in escape route, ac-
cording to EN16005 and DIN18650).
Parameter B1= 01. Hold for 2s (not allowed in escape route, according
to EN16005 and DIN18650).
Access is obtained by holding any mode selection button for 2 seconds.
Parameter B1= 02. Passcode (COM502ES).
Passcode can be selected where the access is obtained by briefly push-
ing the buttons in correct order.
The entire passcode must be entered within 10 seconds.
The passcode can be changed through the DAS900CT.
Default passcode is 1-5-2-4-3.
Parameter B1= 03. Key (only COM502ER)
To enable the use of the selector, rotate the key clockwise towards the
symbol .
The ⚠ will light up for 15 seconds. Select the required mode.
NOTE: When B1 is set to Hold for two sec (01), the access will be locked
5 seconds after a button has been pushed.
When b1 is set to Passcode (02) or Key (03), the access will be locked 15
seconds after entering passcode or activating key, or when a new mode
selection has been confirmed.
NOTE: When B1 is set to either Passcode (02) or Key (03), the operation
mode selection must be confirmed by pressing the ��.
In the ⚠ a light can be displayed.
• A red light every 1 s. indicates an error. Carry out a RESET. If the error
persists, contact Technical Service.
• A yellow light every second is indicating that maintenance is due (pa-
rameter B2).
• A magenta light every second is indicating that STOP contact 1-3 is
active. E.g. a break-out door is standing open.
• A steady green light is displayed when the OMS is unlocked and B1 is
IP4X
-20 °C / +55 °C
2402.0 - 2480.0 MHz
<1 mW
24 V
configured for Passcode (02) or Key (03).
• A green light is flashing 4 times per second when a new operation
mode has been selected but not yet confirmed.
• A green light will flash whenever a button is pressed while typing the
passcode.
• A green light will be displayed for 1 second when Mode Selector Key
Impulse is given (parameter B8= 02) by holding 5(CLOSE) for 2 seconds
when the operation mode is OFF.
SYMBOL
OPEN
The door is permanently open. The door can be moved by hand
e.g. for window cleaning. All activation units except for the emer-
gency push button (if fitted) are disconnected.
PARTIAL
Two-way traffic, AUTOPARTIAL is obtained. The door can be opened
partially with the inner and outer activation units and with a key
switch (if fitted). With an emergency push-button the door opens fully.
AUTO
Two-way traffic, normal operation of the door. The door can be
opened with the inner and outer activation units and with a key
switch/emergency push-button (if fitted).
EXIT
Passage from inside only. The door is normally locked (unlocked if
escape route) if an electromechanical locking device has been fitted.
The door can only be openedwith the inner activation unit or with a key
switch/emergency push-button (if fitted).
OFF
In an escape route the OFF mode may only be set after it is certain
that all people have left the building.
The door cannot be opened with inner or outer activation units.
The door is locked if an electromechanical locking device has
been fitted. The door can be opened partially with a key switch (if
fitted). The door can be opened fully with an emergency pushbut-
ton (if fitted). The door can be opened partially from the operation
mode selector if 5 (CLOSE) is pushed (based on how Key impulse is
configured). This function depends on how parameters B1 and B8
are set.
RESET
By briefly pushing the button placed in the hole accessible from
the underside of the OMS with a narrow object, the door opera-
tor will make a RESET function with a system test. The door will
then be ready for normal operation.
5. DITEC DOOR CONNECT
With the app, Ditec Door Connect, all the main operation mode selector
functionalities can be operated with a smartphone.
Installation of app:
Download the app Ditec Door Connect, at App Store or Google Play.
Make sure to have your "VALUE DOCUMENT" ready.
Tap the button "+ Add Door " in the app, and follow the door setup wiz-
ard. The setup wizard will guide you how to pair the smartphone with
the door.
NOTE! To be able to pair, you have to be in the range of 10 m from the
function selector.
NO light
Bluetooth® is disable
Light
Bluetooth® is active
Flashing light
Bluetooth® module is pairing with the app
Ditec Door Connect
For Bluetooth® configuration, see parameter B9 on the control panel.
See important information on the last page.
7
FUNCTION
Bluetooth® LED
