IP I/O module ET 8E8A-IP
Connection
Inputs 1 to 8
E.g. door opener
Power supply
Mounting
ET 8E8A-IP
IP I/O Interface Module
Installation instructions
• Use shielded Ethernet cables only.
• The module must be connected to a grounded PoE switch.
• To mount the module vertically, turn the top hat rail bracket at the rear of the module.
ET 8E8A-IP
IP I/O Interface Module
Outputs 1 to 8

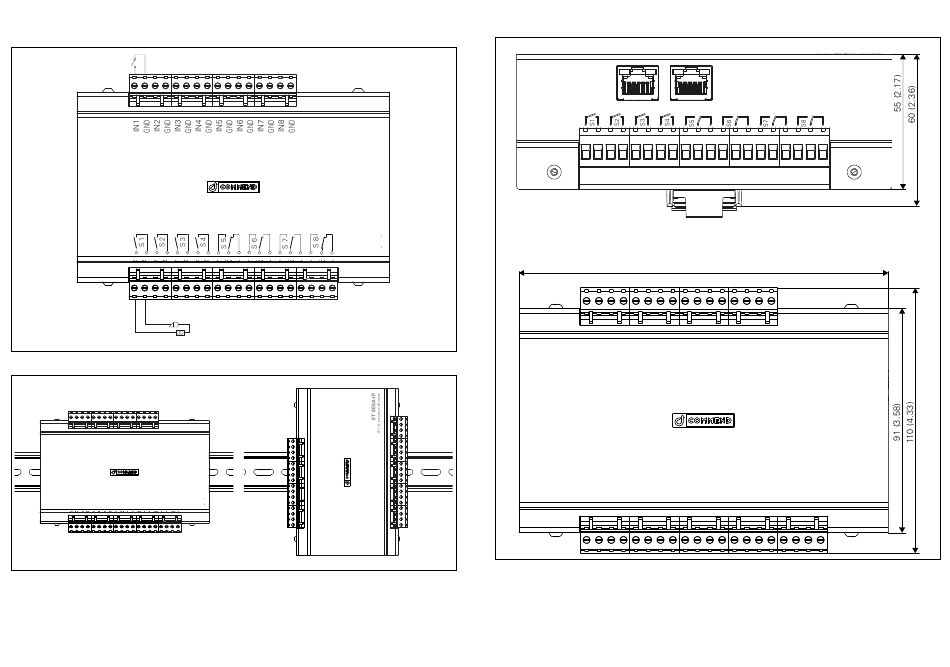

Dimensions
Measuring units in mm (in), not to scale!
Extent of supply
• IP I/O module incl. pre-assembled top hat rail bracket
• Wall mount kit
• Short reference
150 (5.91)
ET 8E8A-IP
IP I/O Interface Module
