Commend EM 301 Kurzanleitung

Direct dialling module EM 301, EM 302
Connection
The module can be connected to the base stations EE 380A and EE 380C.
Mounting

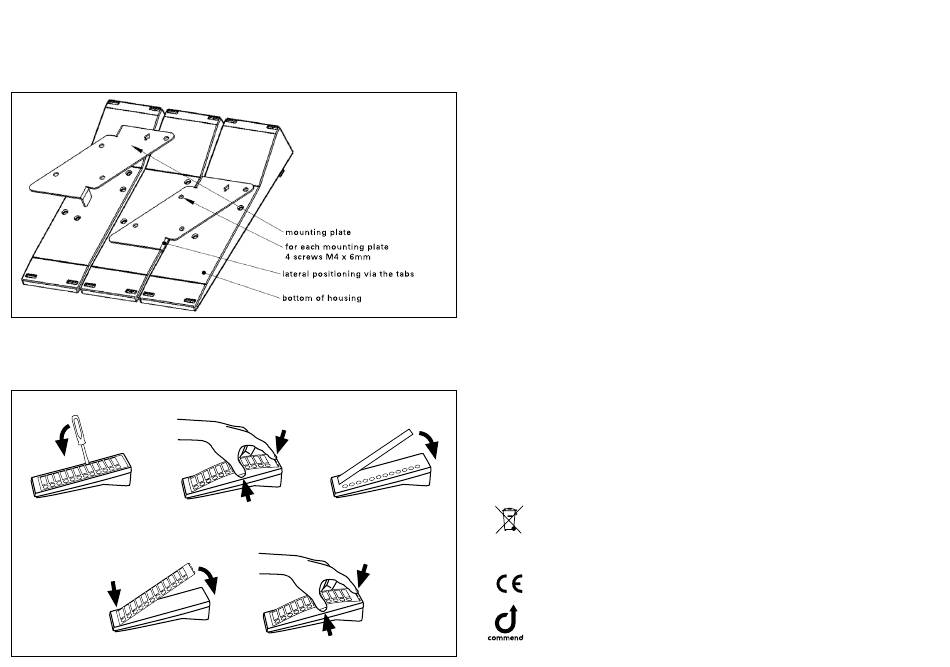

• The modules are mounted to the base terminal as shown in the illustration.
• The unused screws must not be removed, as this might cause acoustic problems and allow dust to
enter.
Changing the labelling sheet
Mounting instructions
• Do not place the device in areas where it may become wet or damp, and avoid particularly dusty,
humid or high-temperature environments.
• Before using the device, ensure all cables are connected correctly and are not damaged.
Safety instructions
• This device shall be installed or replaced by trained and qualified personnel only.
• Devices belonging to another earthing network must not be connected to the device's connectors.
• All connected circuits shall fulfill the following requirements:
• Safety Extra Low Voltage (SELV) and Limited Power Source (LPS) according to IEC/EN 60950-1 or
• ES1, PS2 circuits and Annex Q (Limited Power Source) according to IEC/EN/UL 62368-1
• The device is intended for appropriate installation in locations where possible high transient volt-
age surges are not likely to occur.
• Only accessories that comply with the device's technical specifications shall be used.
• The DC power supply of the device must comply with the requirements for LPS (acc. to IEC/
EN 60950-1) or PS2 (acc. to IEC/EN 62368-1) (max. 30 W). If one power supply (> 30 W) is used for
multiple devices, an overcurrent protective device must be installed in each device's supply line.
• Disconnect all cables for any maintenance.
• All changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
• There must be no direct connection to a cable outside of a building.
• When opening the station, ESD precautions must be observed.
• The station may only be opened by authorised service engineers.
Extent of supply
• Connection cable, 5 cm (1.97 in), pluggable at both sides
• Short reference and operating instructions
Handling
Use the original packaging when transporting the device to prevent damage.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical data and configuration, see the respective data sheet.
Keep this description in safe custody.
Type: D-BZ-EM30x, Version: 1.4/0624 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
