ETI SOU-2 Bedienungsanleitung Seite 36

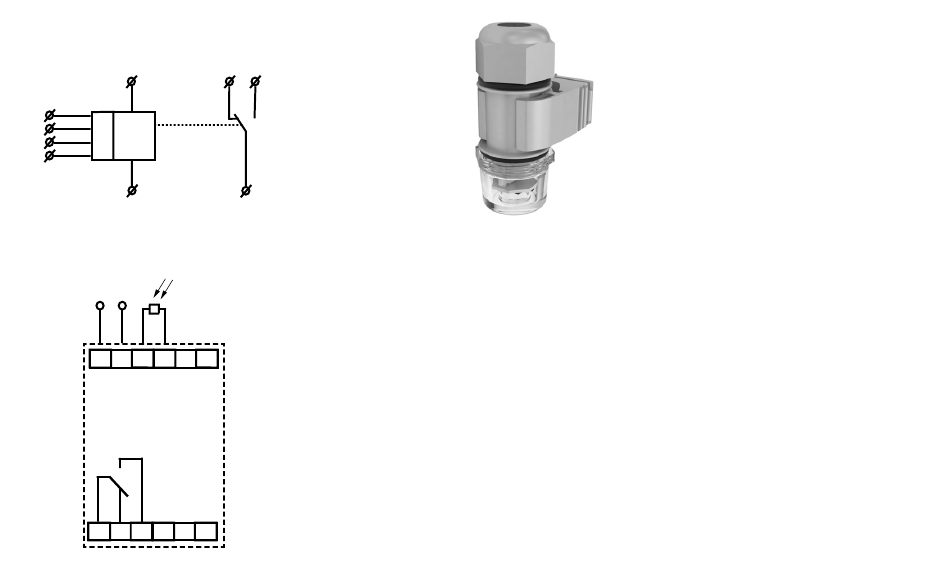

Symbol
A1
T1
T1
G
G
A2
Connection
Un Sensor
A1 A2 T1 T1 G G
15 16 18
16 18
15
Photosensor SKS-200
Photosensor SKS-200 is external and is connected to terminals
T1. Sensor is installable to panel (by screw-able transparent
cover) to opening with diameter 20 mm. A part of the sensor
is a plastic holder for placing into the wall or to another place.
Length of a line connector to the sensor cannot be more than
50 m. Doublecure cable can be used as wire diameter min. 0.2
- 0.75 mm 2 / with sleeve: 0.25 - 0.34 mm
Protection degree is IP65.
To keep this protection:
• photosensor SKS-200 cover must be sealed by a rubber circle
(part of the sensor)
• cable must be of round cross-selection
• the opening must be tight to the used cable
