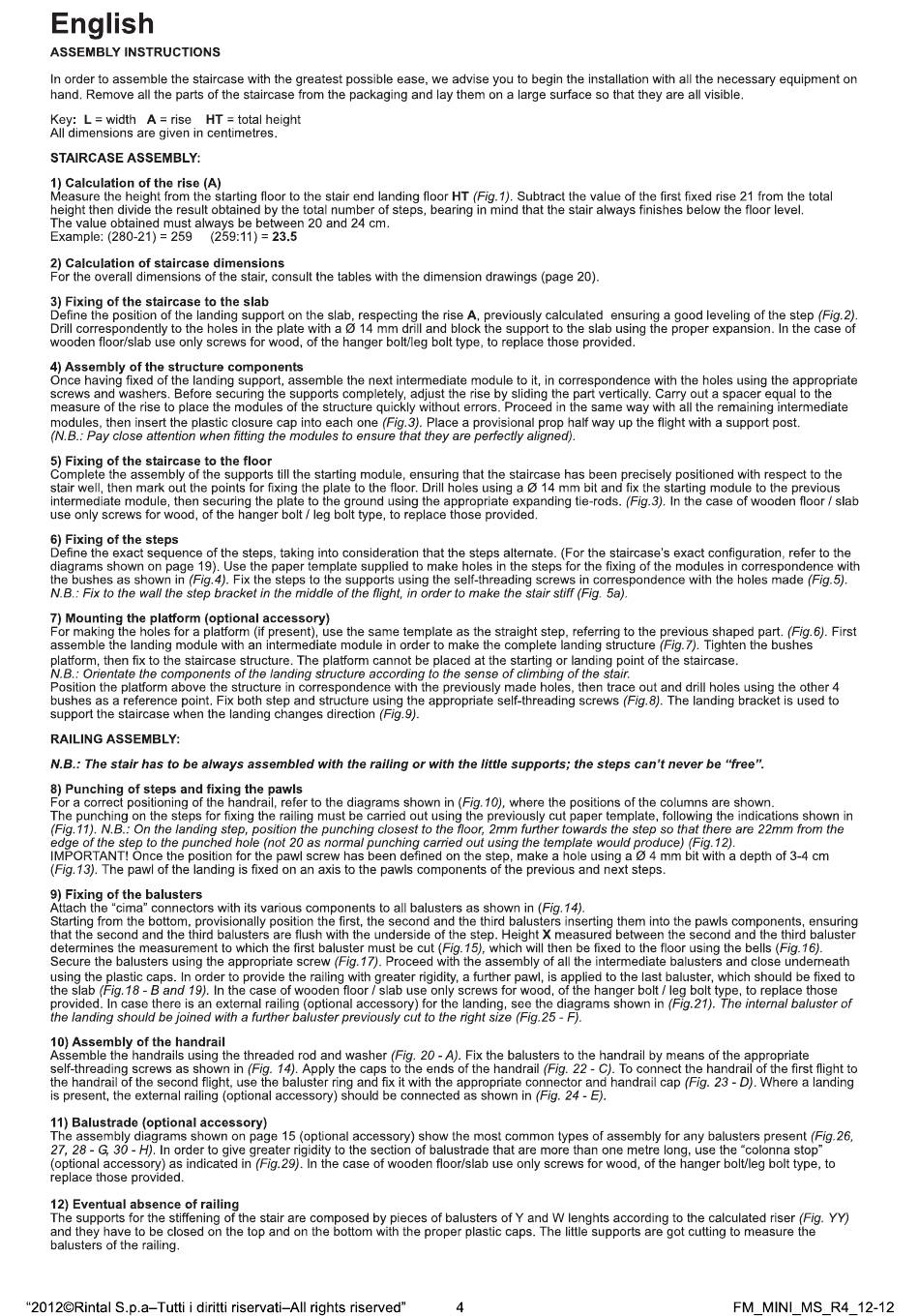

ASSEMBLY INSTRUCTIONS
In order to assemble the staircase
hand. Remove all the parts of the staircase from the packaging and lay them on a large surface so that they are all visible.
Key: L = width A = rise
All dimensions are given in centimetres.
STAIRCASE ASSEMBLY:
I) Calculation of the rise (A)
Measure the height from the starting floor to the stair end landing floor HT (Fig. I). Subtract
height then divide the result obtained by the total number of steps, bearing in mind that the stair always finishes below the floor level
The value obtained must always be between 20 and 24 cm.
Example: (280-21) = 259
2) Calculation of staircase dimensions
For the overall dimensions
3) Fixing of the staircase to the slab
Define the position of the landing support on the slab, respecting
Drill correspondently to the holes in the plate with a Ø 14 mm drill and block the support to the slab using the proper expansion.
wooden floor/slab use only screws for wood, of the hanger bolt/leg bolt type, to replace those provided.
4) Assembly of the structure
Once having fixed of the landing support, assemble the next intermediate module to it, in correspondence with the holes using the appropriate
screws and washers. Before securing the supports
measure of the rise to place the modules of the structure quickly without errors. Proceed
modules, then insert the plastic closure cap into each one (Fig.3). Place a provisional prop half way up the flight with a support post
(N.B.: Pay close attention when fitting the modules to ensure that they are perfectly aligned).
5) Fixing of the staircase to the floor
Complete the assembly of the supports till the starting module, ensuring that the staircase has been precisely positioned with respect to the
stair well, then mark out the points for fixing the plate to the floor. Drill holes using a Ø 14 mm bit and fix the starting module to the previous
intermediate module, then securing the plate to the ground using the appropriate
use only screws for wood, of the hanger bolt / leg bolt type, to replace those provided
6) Fixing of the steps
Define the exact sequence of the steps, taking into consideration that the steps alternate. (For the staircase's exact configuration, refer to the
diagrams shown on page 19). Use the paper template supplied to make holes in the steps for the fixing of the modules in correspondence with
the bushes as shown in (Fig.4). Fix the steps to the supports
N.B.: Fix to the wall the step bracket in the middle of the flight, in order to make the stair stiff (Fig. 5a).
7) Mounting the platform
For making the holes for a platform
assemble the landing module with an intermediate
platform, then fix to the staircase structure.
N.B.: Orientate the components
Position the platform above the structure
bushes as a reference point. Fix both step and structure using the appropriate self-threading screws (Fig. 8). The landing bracket is used to
support the staircase when the landing changes direction (Fig.9).
RAILING ASSEMBLY:
N.B.: The stair has to be always assembled
8) Punching of steps and fixing
For a correct positioning of the handrail,
The punching on the steps for fixing the railing must be carried out using the previously cut paper template, following the indications shown in
(Fig. 11). N.B.: On the landing step, position the punching closest to the floor, 2mm further towards the step so that there are 22mm from the
edge of the step to the punched hole (not 20 as normal punching carried out using the template would produce) (Fig. 12).
IMPORTANT! Once the position for the pawl screw has been defined on the step, make a hole using a Ø 4 mm bit with a depth of 3-4 cm
(Fig. 13). The pawl of the landing is fixed on an axis to the pawls components of the previous and next steps
9) Fixing of the balusters
Attach the "cima" connectors with its various components to all balusters as shown in (Fig. 14).
Starting from the bottom, provisionally
that the second and the third balusters
determines the measurement
Secure the balusters using the appropriate screw (Fig. 17). Proceed with the assembly of all the intermediate balusters and close underneath
using the plastic caps. In order to provide the railing with greater rigidity, a further pawl, is applied to the last baluster, which should be fixed to
the slab (Fig. 18 - B and 19). In the case of wooden floor / slab use only screws for wood, of the hanger bolt / leg bolt type, to replace those
provided. In case there is an external railing (optional accessory) for the landing, see the diagrams shown in (Fig.21). The internal baluster of
the landing should be joined
10) Assembly of the handrail
Assemble the handrails using the threaded
self-threading screws as shown in (Fig. 14). Apply the caps to the ends of the handrail (Fig. 22 - C). To connect the handrail of the first flight to
the handrail of the second flight, use the baluster ring and fix it with the appropriate connector and handrail cap (Fig. 23 - D). Where a landing
is present, the external railing (optional accessory) should be connected as shown in (Fig. 24 - E).
11) Balustrade (optional accessory)
The assembly diagrams shown on page 15 (optional
27, 28 - G, 30 - H). In order to give greater rigidity to the section of balustrade that are more than one metre long, use the "colonna stop"
(optional accessory) as indicated in (Fig.29). In the case of wooden floor/slab use only screws for wood, of the hanger bolt/leg bolt type, to
replace those provided
12) Eventual absence of railing
The supports for the stiffening of the stair are composed by pieces of balusters of Y and W lenghts according to the calculated riser (Fig. YY)
and they have to be closed on the top and on the bottom with the proper plastic caps. The little supports
balusters of the railing.
