ENGLISH
QXE6.2C
QXE6.2C
8,5 mm
Ø 50 mm
mm
10

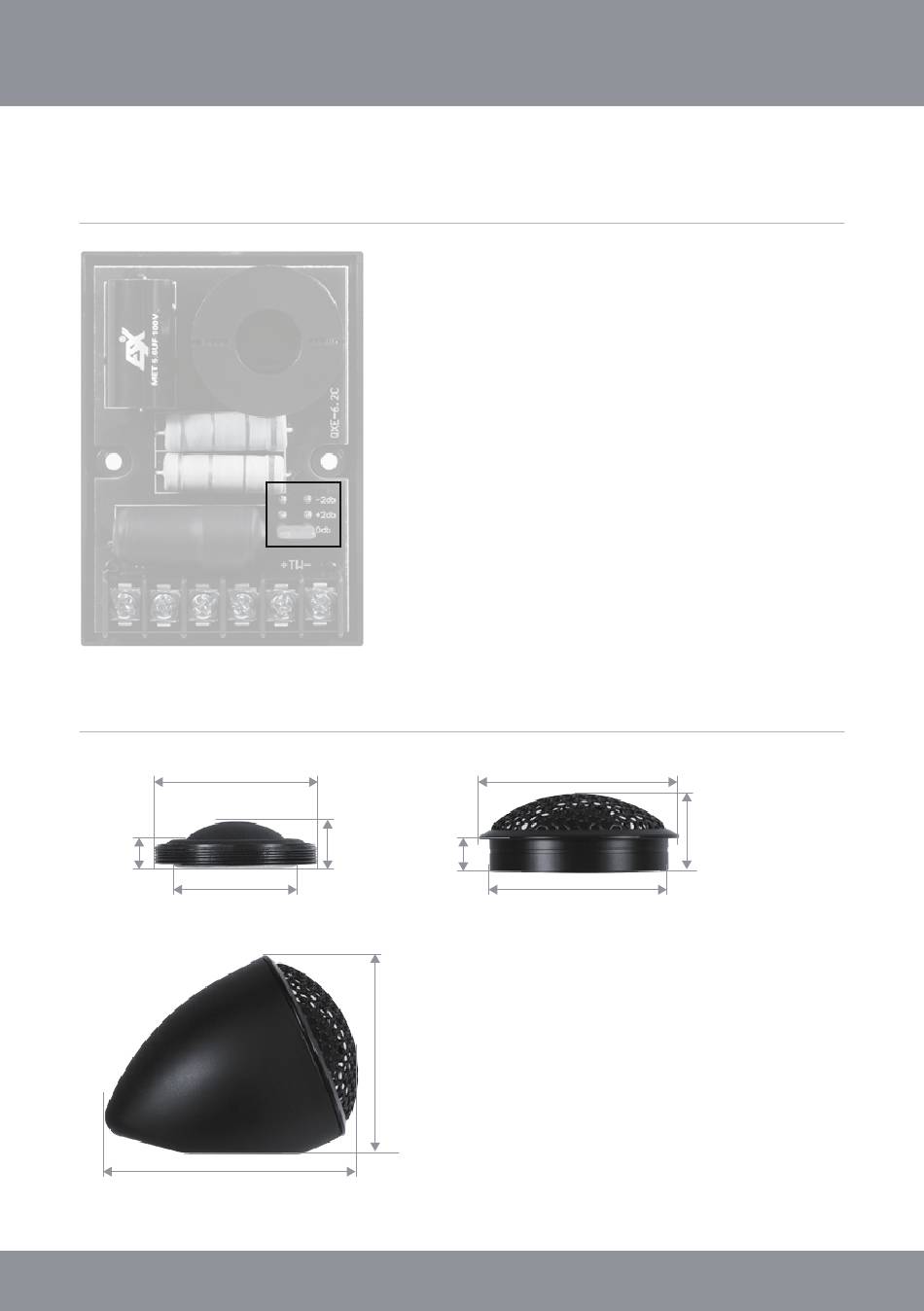

TWEETER LEVEL ADJUSTMENT
V2
/ QXE6.2T TWEETERS
V2 V2
41 mm
12 mm
31 mm
64 mm
Optional:
Carefully remove the crossover housing cover.
On the crossover there is a jumper on the right, which can
be plugged-in in three positions (-2dB / +2dB / 0dB).
To adjust the tweeter level, place the jumper in the appropri-
ate position.
49,5 mm
8,5 mm
44 mm
50 mm
Ø 50 mm
20 mm
6
