3.0 LIQUID PUSH-PULL HOOK UP

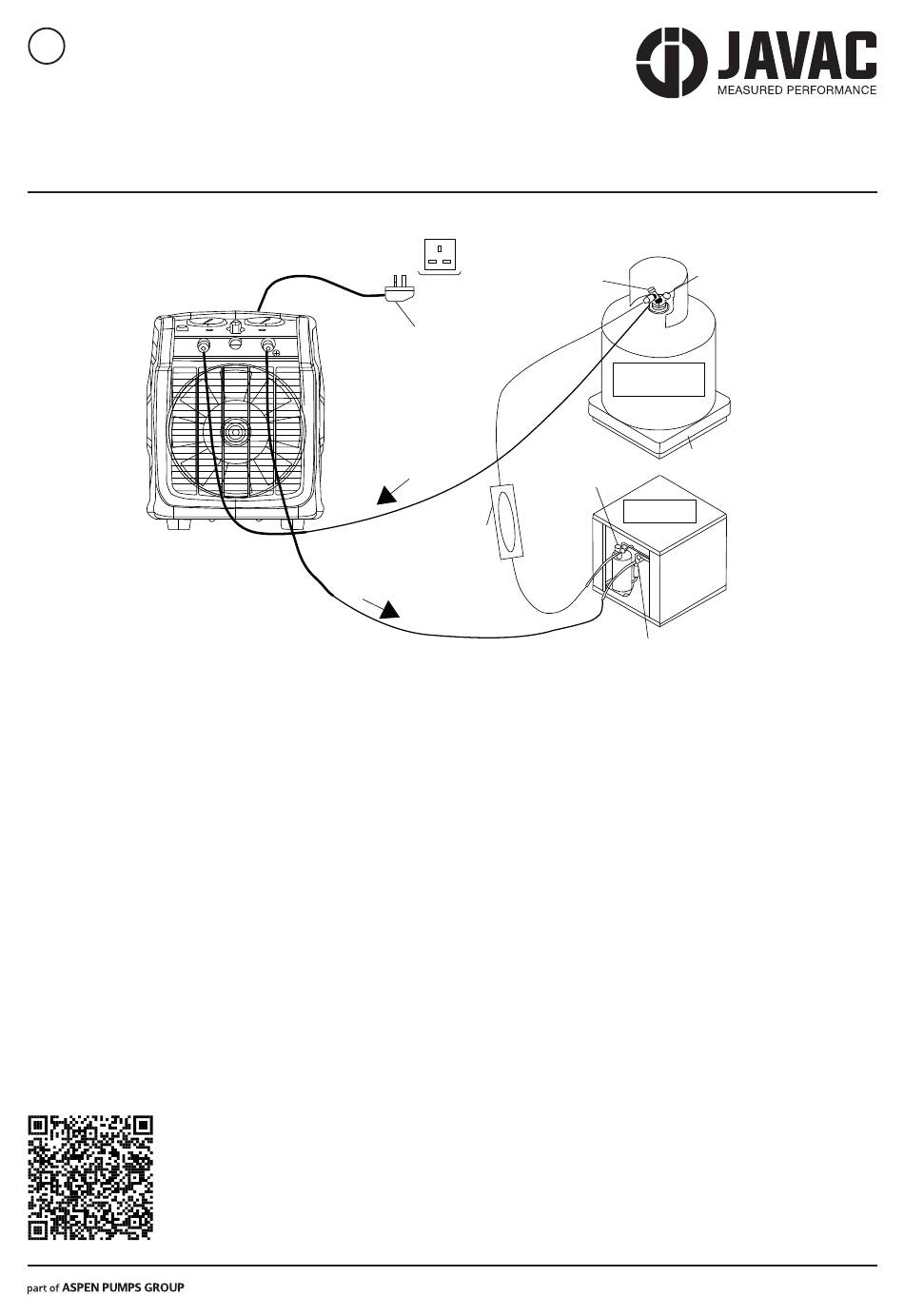

Liquid Push-Pull Hook up Diagram
1. Make sure the control valve is in the OFF position, connect refrigerant hoses and sight glass as
shown in Liquid Push-Pull diagram.
2. Open the refrigerant storage tanks Vapour and Liquid valves.
3. Plug unit into grounded power source. The status LED will flash GREEN.
4. Push the START button.
5. Once the unit has started, turn the Control Valve to the Recovery position.
6. Monitor both the liquid sight glass and storage tank weight (Caution, do not overfill storage tank).
7. Once liquid is no longer present in sight glass, turn Control Valve to OFF. Push START button to
turn off.
8. Go to the Direct Liquid or Vapour recovery instructions to complete the recovery of residual
vapours in the system being recovered.
For use on A3 please scan the
QR code to read the A3 safety
instructions. Do not use unless
fully qualified for A3.
LIQUID
(OPEN)
INCOMING
POWER
LIQUID
SERVICE
PORT
PRESSURE
RATED
SIGHT GLASS
LIQUID
VAPOUR
4
VAPOUR
(CLOSED)
RECOVERY
TANK
SCALE
HVAC UNIT OR
APPLIANCE
VAPOUR
SERVICE
PORT
