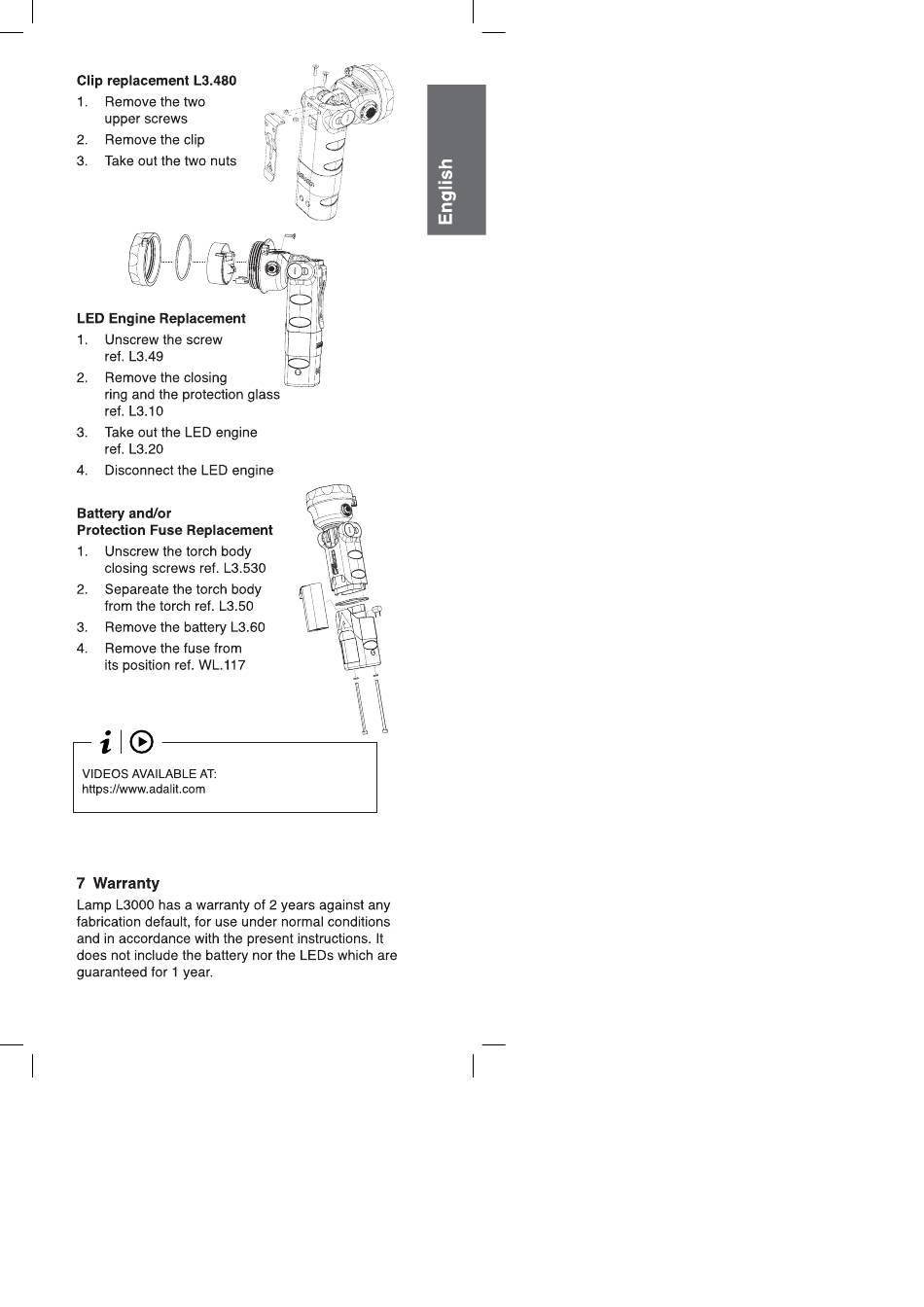

Clip replacement L3.480
1. Remove the two
upper screws
Remove the clip
2.
3. Take out the two nuts
LED Engine Replacement
1. Unscrew the screw
ref. L3.49
2. Remove the closing
ring and the protection glass
ref. L3.10
3. Take out the LED engine
ref. L3.20
4. Disconnect the LED engine
Battery and/or
Protection Fuse Replacement
Unscrew the torch body
1.
closing screws ref. L3.530
Separeate the torch body
2.
from the torch ref. L3.50
3. Remove the battery L3.60
4. Remove the fuse from
its position ref. WL.117
VIDEOS AVAILABLE AT:
https://www.adalit.com
7 Warranty
Lamp L3000 has a warranty of 2 years against any
fabrication default, for use under normal conditions
and in accordance with the present instructions. It
does not include the battery nor the LEDs which are
guaranteed for 1 year.
