I REAR PANEL

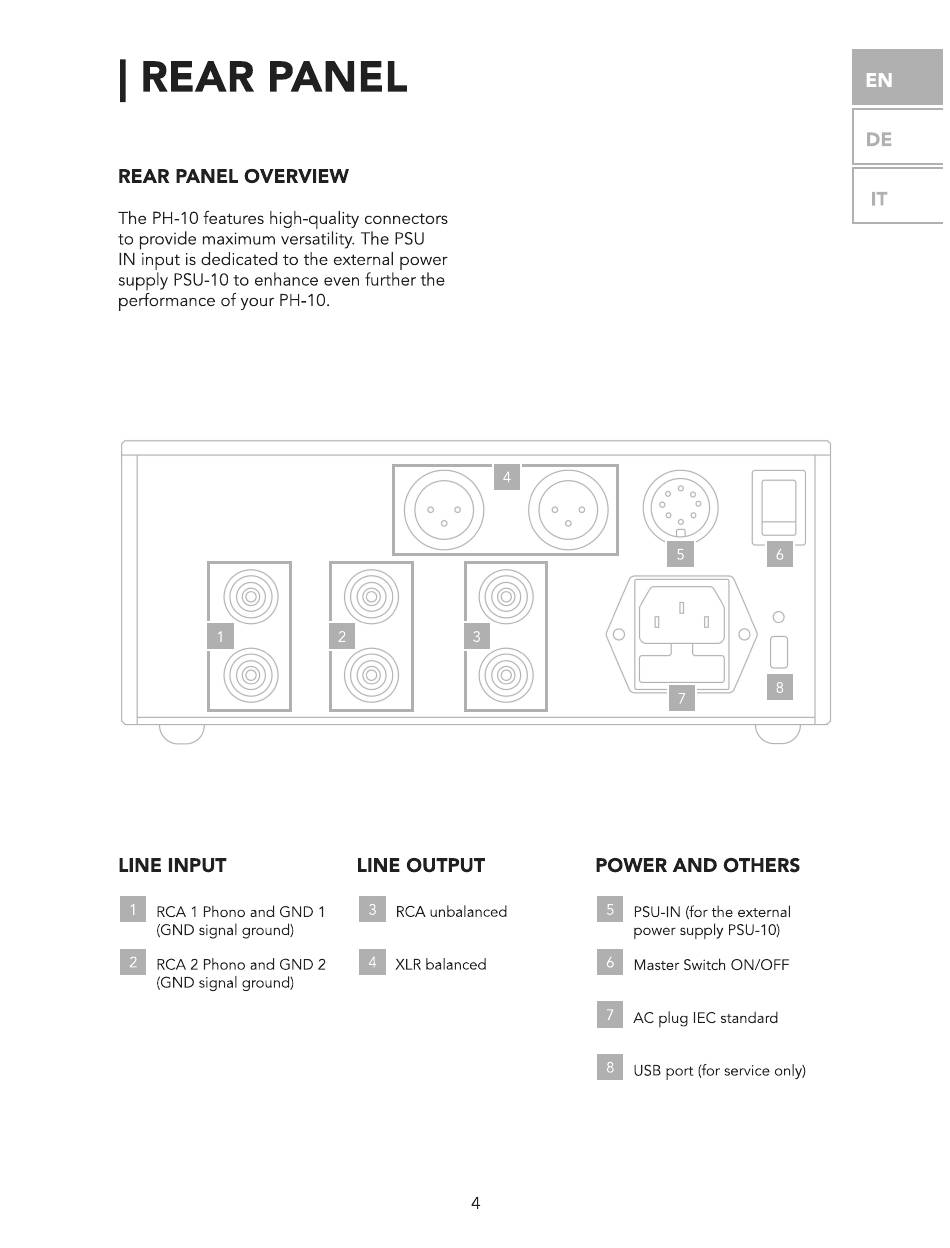

REAR PANEL OVERVIEW
The PH-10 features high-quality connectors
to provide maximum versatility. The PSU
IN input is dedicated to the external power
supply PSU-IO to enhance even further the
performance of your PH-I O.
LINE INPUT
RCA 1 Phono and GND
(GND signal ground)
RCA 2 Phono and GND
(GND signal ground)
LINE OUTPUT
RCA unbalanced
1
2 XLR balanced
4
O
O
O
POWER AND OTHERS
PSU-IN (for the external
power supply PSU 10)
Master Switch ON/OFF
o
AC plug IEC standard
USB port (for service only)
