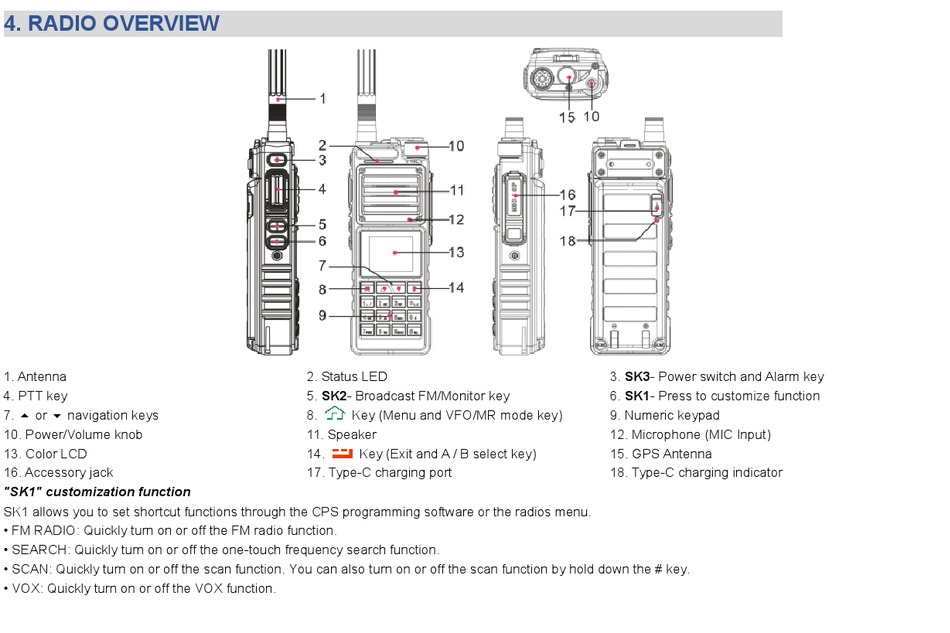

4. RADIO OVERVIEW
1. Antenna
4. PTT key
7. or navigation keys
10. Power/Volume knob
13. Color LCD
16. Accessory jack
"SK1" customization function
SK1 allows you to set shortcut functions through the CPS programming software or the radios menu.
• FM RADIO: Quickly turn on or off the FM radio function.
• SEARCH: Quickly turn on or off the one-touch frequency search function.
• SCAN: Quickly turn on or off the scan function. You can also turn on or off the scan function by hold down the # key.
• VOX: Quickly turn on or off the VOX function.
2. Status LED
5. SK2- Broadcast FM/Monitor key
8.
Key (Menu and VFO/MR mode key)
11. Speaker
14.
Key (Exit and A / B select key)
17. Type-C charging port
3. SK3- Power switch and Alarm key
6. SK1- Press to customize function
9. Numeric keypad
12. Microphone (MIC Input)
15. GPS Antenna
18. Type-C charging indicator
