4. Design and function

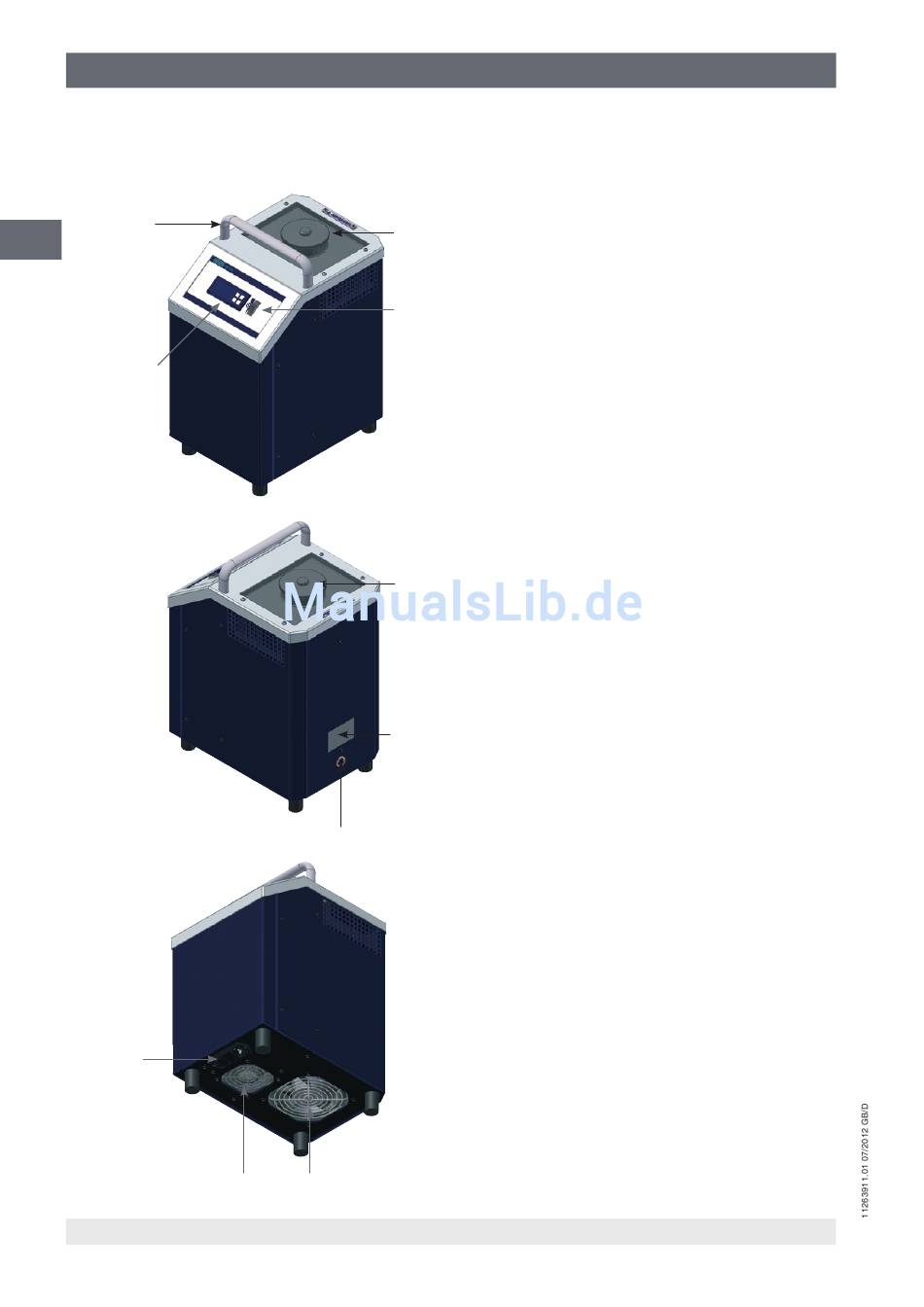

4.5 Isometric views of the CTB9100 series micro calibration baths

Handle
GB
Controller
Mains
connection
socket with
power switch
14
Block
Control-
ler for the
stirrer
Block
Product
label
RS-485 interface
Fan 2 Fan 1
Front and top of the model CTB9100
On the top of the micro calibration bath are the block opening
for filling (Ø 60 mm x 150 mm).
The controller, with display and controls, is located on the
front of the calibrator.
Rear of the instrument
On the rear of the equipment is the product label with the key
information about the particular model.
Furthermore, the individual serial number (e.g.
S/N 550 33 44) as well as the mains voltage and the fuse
rating is given.
You will also find the connector for the RS-485 interface here.
Underside of the instrument
On the underside of the instrument are the mains connection
socket and the power switch with its fuse-holder.
These are located in the centre, at the front. Furthermore,
depending on the model, there are one or two air intakes
located on the underside of the instrument.
The air intakes must not be obstructed in any way.
