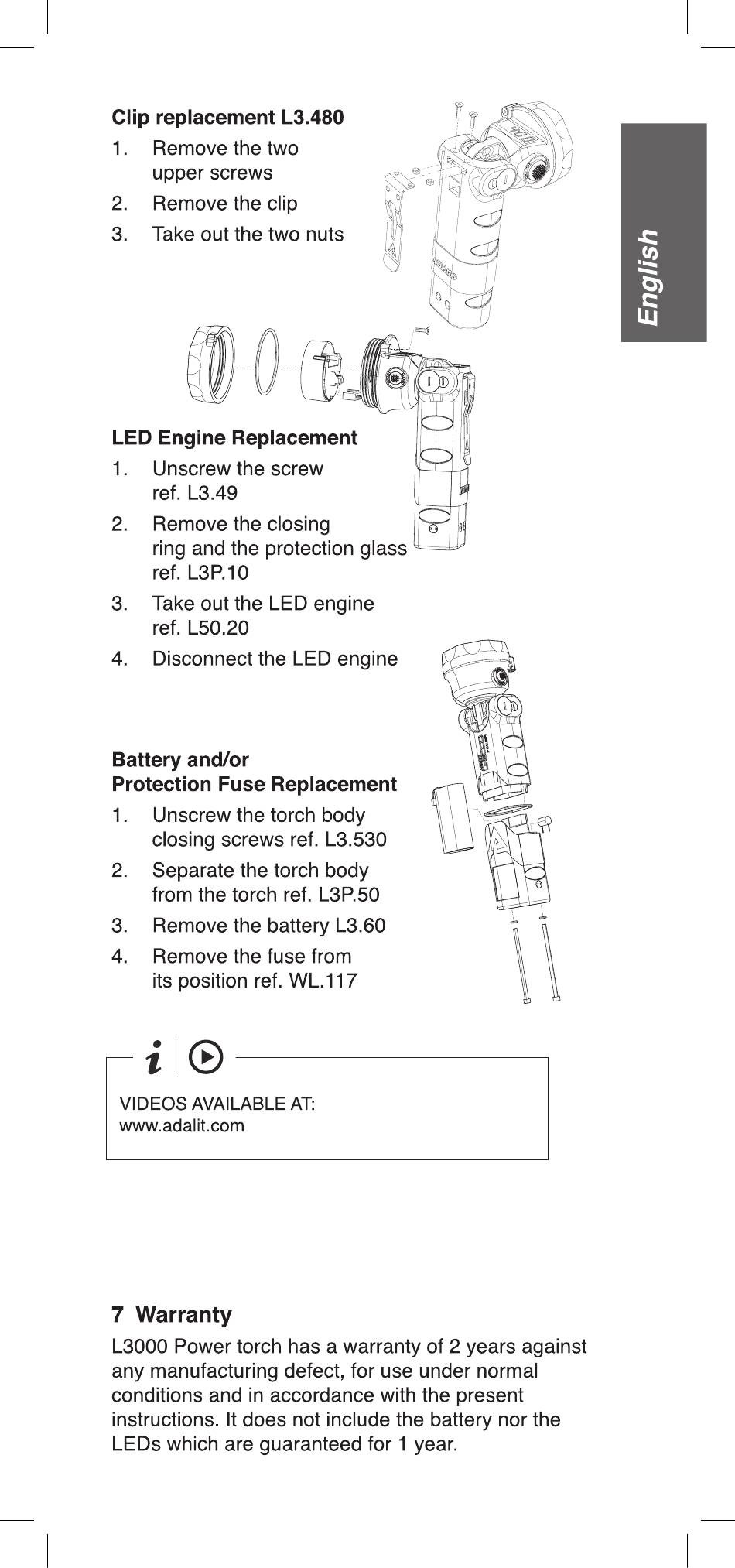

Clip replacement
1. Remove the two
upper screws
Remove the clip
2.
3. Take out the
LED Engine Replacement
I. Unscrew the
ref. L3.49
2. Remove the closing
ring and the protection glass
ref. L3P.10
3. Take out the LED engine
ref. L50.20
4. Disconnect the LED engine
Battery and/or
Protection Fuse Replacement
Unscrew the torch body
I.
closing screws ref. L3.530
Separate the torch body
2.
from the torch
3. Remove the battery L3.60
4. Remove the fuse from
its position ref. WL.117
VIDEOS AVAILABLE
www.adalit.com
7 Warranty
L3000 Power torch has a warranty of 2 years against
any manufacturing defect, for use under normal
conditions and in accordance
instructions. It does not include the battery nor the
LEDs which are guaranteed for 1 year.
L3.480
two nuts
screw
ref. L3P.50
AT:
with the present
