ENGLISH
To ensure safe operations and service of the instrument, follow these
instructions. Failure to observe these warnings can result in fire,
electric shock, severe injury or death.
The Probe-Pro is designed for use on extra-low voltage cabling
•
systems (less than 60 volts) for testing when NOT energized.
DO NOT use instrument if wet, as it could pose a shock hazard.
•
DO NOT use instrument if damaged in any way.
•
Turn off instrument before attempting to replace batteries.
•
The battery door must be in place and secure before you operate the
•
instrument.
DO NOT open the case, other than the battery compartment.
•
READ ALL INSTRUCTIONS BEFORE OPERATING AND RETAIN
INSTRUCTIONS FOR FUTURE REFERENCE

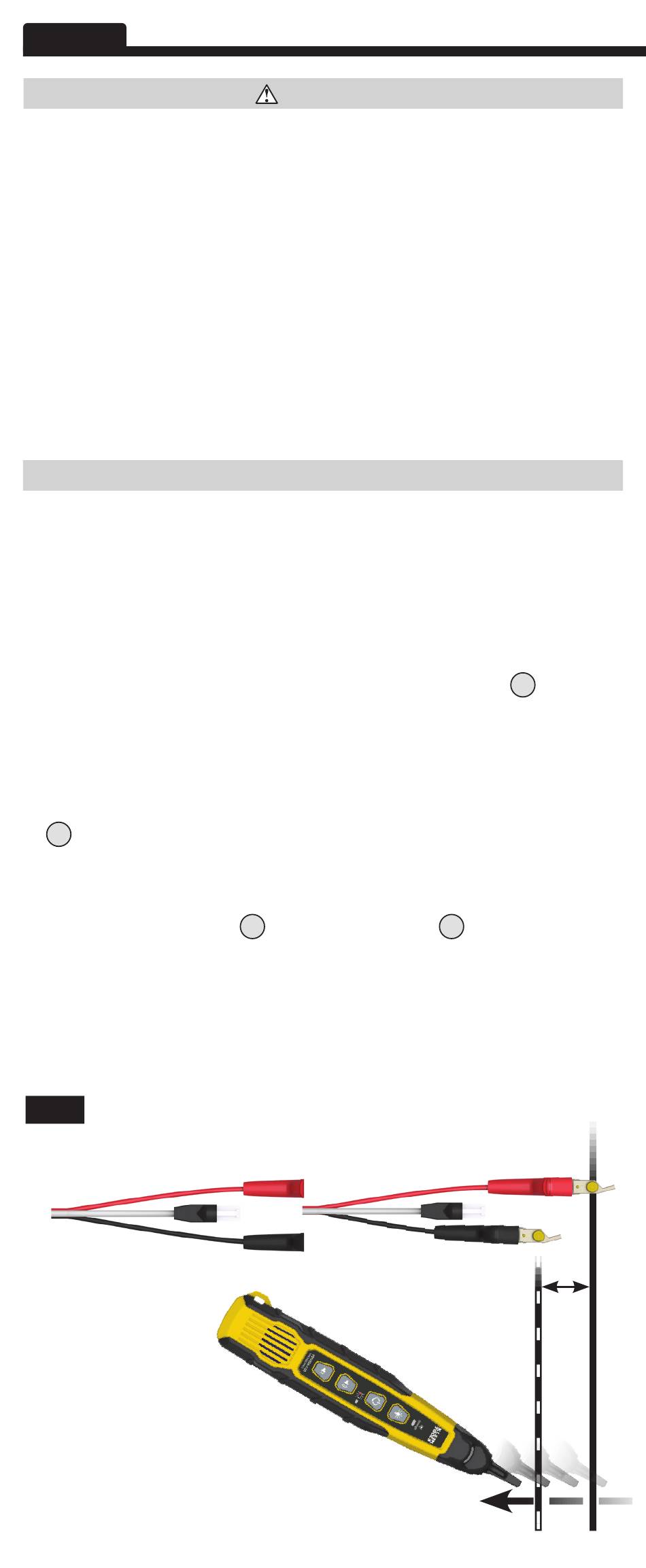

TRACING PAIRED WIRES (FIG. 1)
1. Connect tone generator (VDV500-063 Toner-Pro recommended, sold
seperately) to the wires of the pair to be traced, following the tone
generator's instructions.
2. Turn the Probe-Pro on by pressing the Power On/Off button
3. At the far end of the cable, spread the wires apart at least 2" (51 mm),
if possible. If the wires are shorted or connected to a device (such as a
switch or router), the signal is sent to ground and the Probe-Pro will be
unable to trace the signal.
4. Use the Probe-Pro to scan the cable's wire pairs. Move the Probe-Pro's tip
slowly across the wires (FIG. 1). The Probe-Pro's volume will increase
P1
as it approaches the toned pair. When the Probe-Pro's volume is high
over the first wire, low in the middle (between) the two wires, and high
over the second wire, you have located the pair of wires you are tracing.
Use the Volume Increase
the volume.
FIG. 1
VDV500-063
(sold seperately)
4
WARNINGS
OPERATING INSTRUCTIONS
and Volume Decrease
P6
.
P5
buttons to adjust
P7
2"
(51 mm)
