RP-RM83F Hochbelastbarer Seilzug-Not-Halt-Schalter

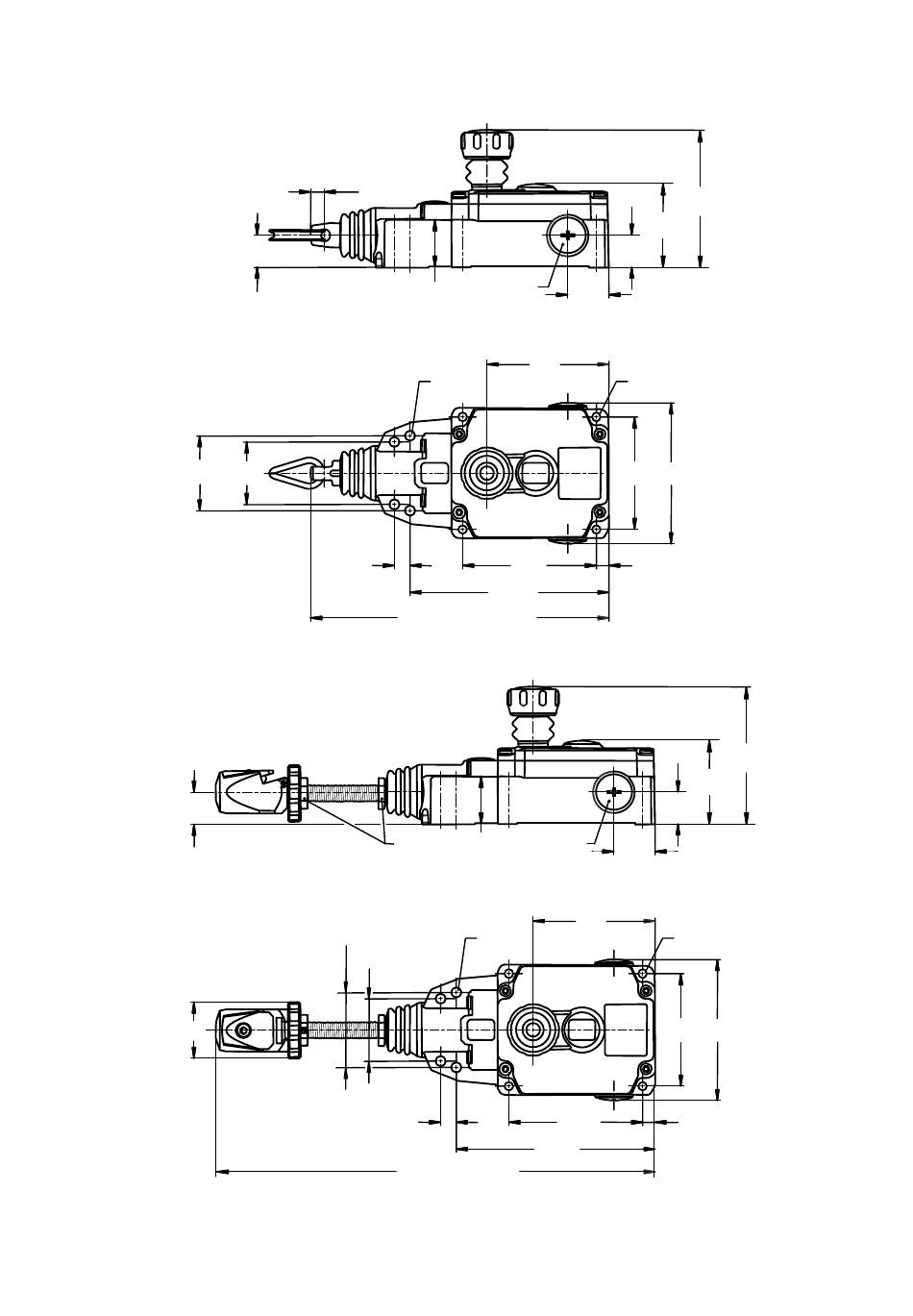

Abmessungen

48 mm 40 mm
(1.9")
20.5 mm
(0.80")
Ø 36 mm
(1.4")
page 8 of 11
8.5 mm
(0.33")
20.5 mm
(0.80")
(1.6")
10 mm
(0.4")
max. 197 mm / min. 185 mm
SW17
48 mm
(1.9")
40 mm
(1.6")
10 mm
(0.4")
max. 282 mm / min. 237 mm
