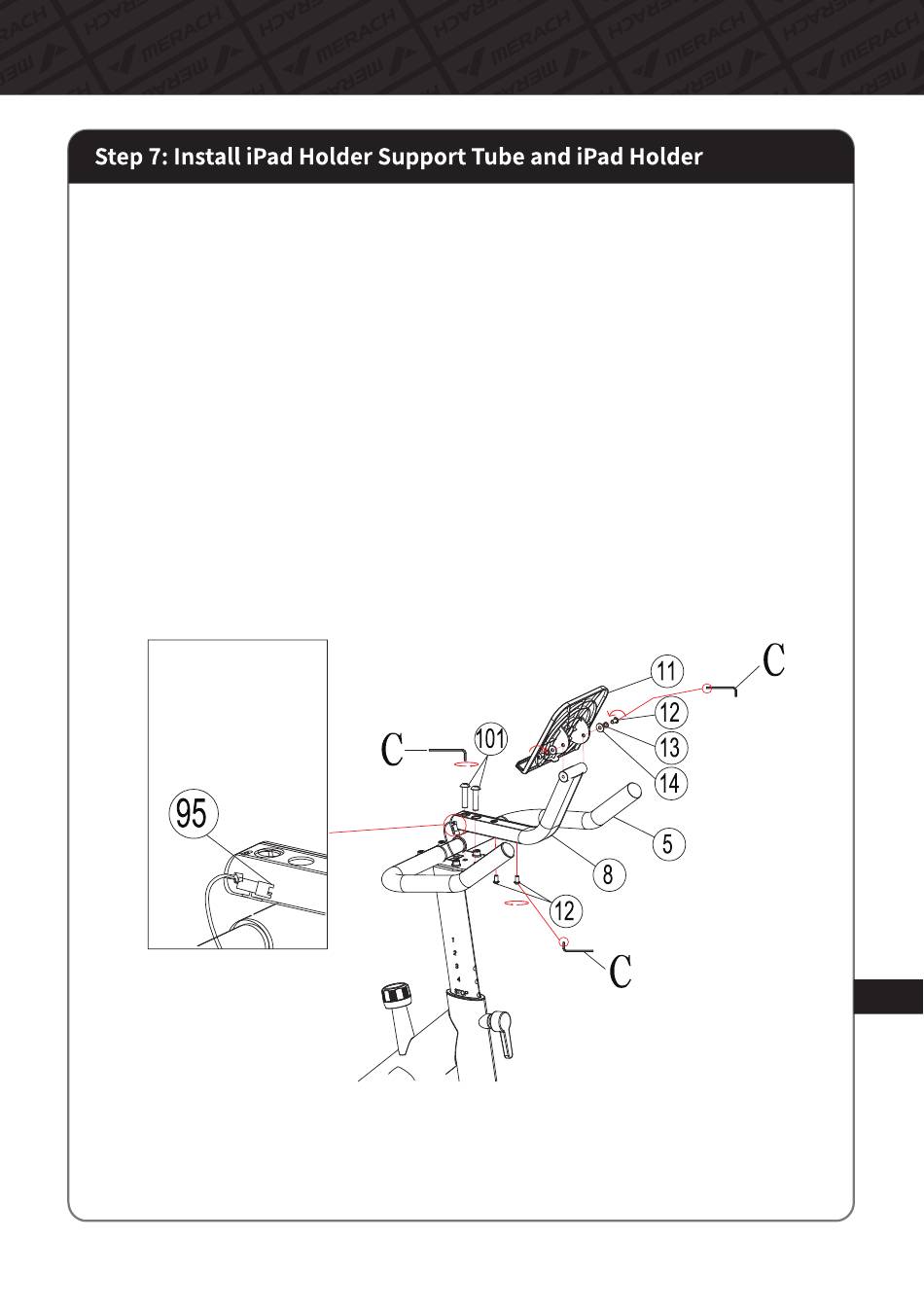

A. Take out the iPad Holder Support Tube (8) from the inner package, and remove the
2PCS Hexagon Socket Flat Round Head Screw (101) on the tube and the 2PCS
Hexagon Socket Flat Round Head Screw (12) at the backward of the tube and put
them aside.
B. Place the iPad Holder Support Tube (8) on the Handlebar (5). Then lock it by using
tool C and 2PCS Hexagon Socket Flat Round Head Screw (101).
C. Then remove the 2PCS Hexagon Socket Flat Round Head Screw (12), 2PCS Elastic
Pad (13) and 2PCS Washers (14) from the top of the iPad Holder Support Tube (8)
with tool C.
D. Align the holes in the back of the iPad Holder (11) with the holes on the top of the
iPad Holder Support Tube (8). Then secure it by using tool C and 2PCS Hexagon
Socket Flat Round Head Screw (12), 2PCS Elastic Pad (13), and 2PCS Washers (14)
as shown in the figure.
Place the Sensor Middle
Wire (95) into the slot
behind the iPad Holder
Support Tube (8) to hold
it in place, and then
untie and discard the
steel wire.
