Step 5:Install Sensor Middle Wire and Handlebar Post
Assembly Instructions
PARTS LIST

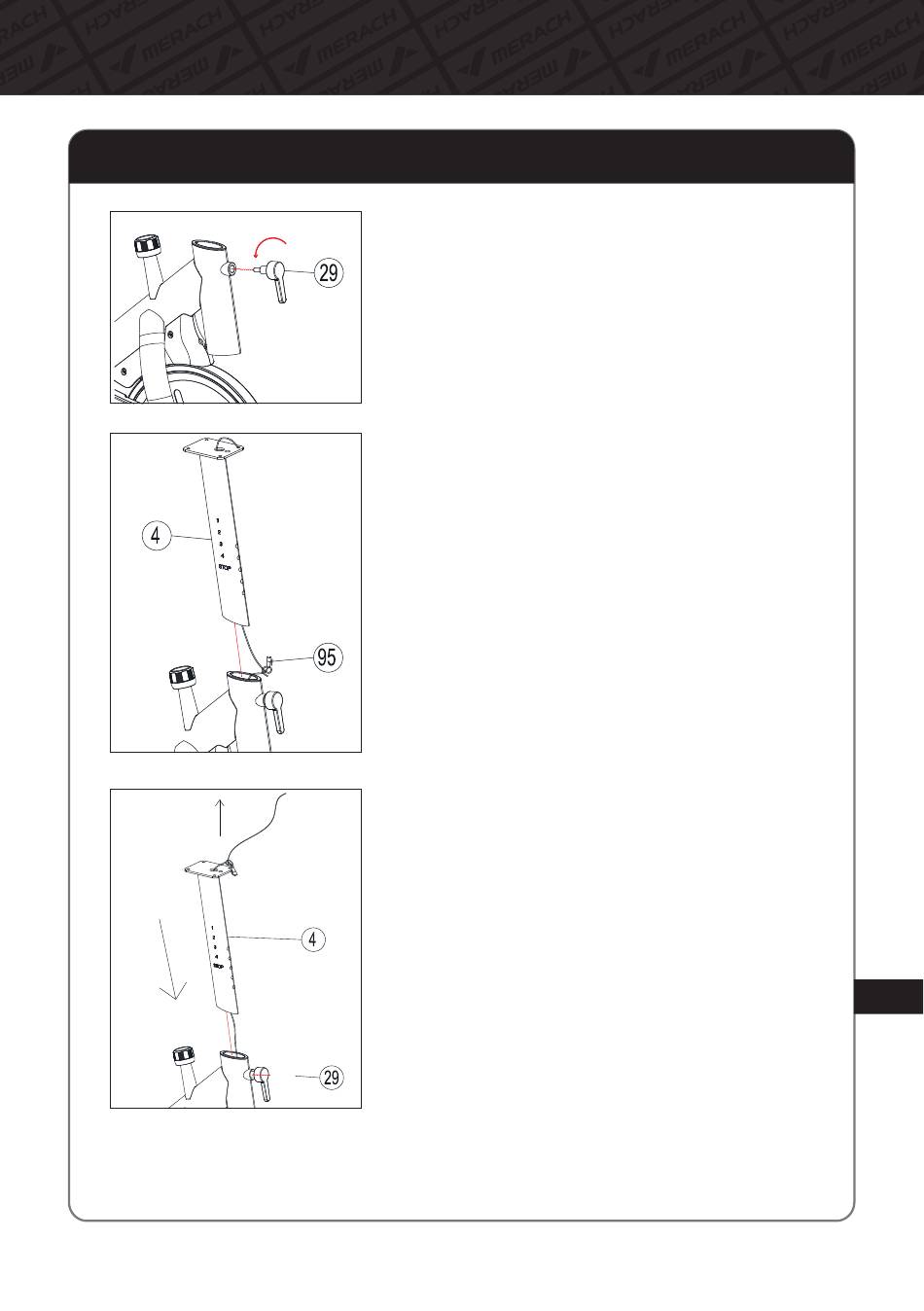

A. Take out 1PCS L-shape Pop Pin Knob (29) from
inner package and rotate 3 turns to fix it to the
frame.
B. Then untie the steel wire fixed at the bottom of
the Handlebar Post (4). Secure the Sensor Middle
Wire (95) with the end of the steel wire.
C. Pull the upper most end of the steel wire to drive
the Sensor Middle Wire (95) through out the
inside of the Handlebar Post (4) to the top and
hold it in place.
D. Hold 1PCS L-shape Pop Pin Knob (29) handle and
pull it out ward, while installing the Handlebar
Post (4) into the Main Frame (1) to the proper
position, and rotate the L-shape Pop Pin Knob (29)
to lock the Handlebar Post (4).
