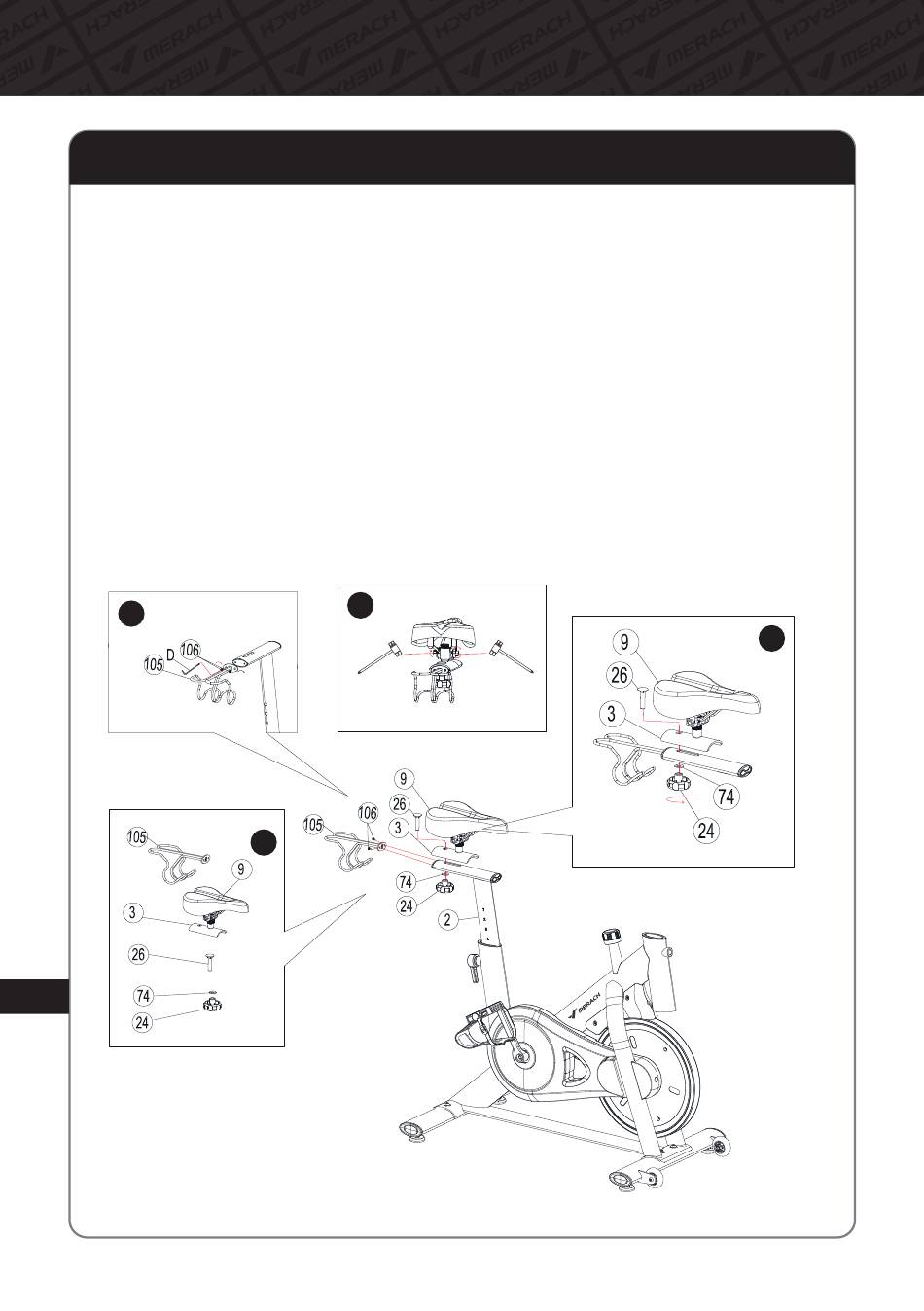

Step 4: Install Seat Slider and Seat
A. Take out the Seat Slider Assembly (3) and Seat (9), 1PC Carriage Bolt (26), 1PCS Washer
(74), 1PCS Lock Knob (24) and Dumbbell Rack (105) from the inner packaging foam and
set aside for later use. As shown in Figure A
B. As shown in Figure B, align the screw hole of the Dumbbell Rack (105) with the rear hole
of the Seat Post (2), insert the 2PCS Cross Recessed Pan Head Screws M5*12 (106), and
lock it with tool C
C. As shown in Figure C, place assembled the Seat (9) and Seat Slider Assembly (3) on the
Seat Post (2), and then use 1PC Carriage Bolt (26) & Washer (74) & Lock Knob (24) to
lock it.
D. As shown in Figure D, check whether the Seat is locked. If it is loose, use the socket
wrench E to tighten the nuts on both sides of the Seat.
