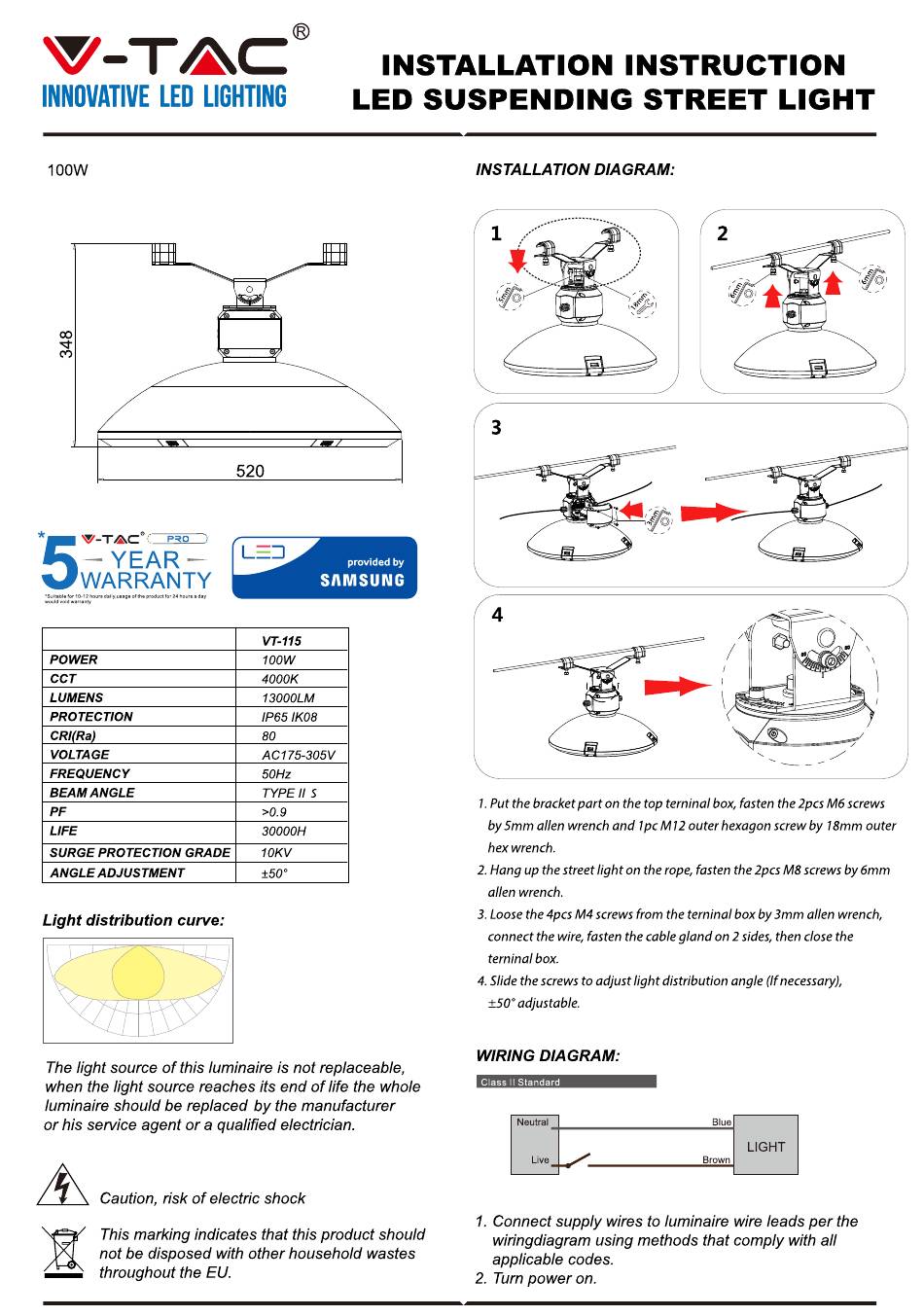

V-TAC VT-115ST Installationsanleitung

E INNOVATIV LED LIGHTING
1 oow
Y-TAC
YEAR
WARRANTY
•Suitable hou product 24
POWER
CCT
LUMENS
PROTECTION
CRI(Ra)
VOLTAGE
FREQUENCY
BEAM ANGLE
LIFE
SURGE PROTECTION GRADE
ANGLE ADJUSTMENT
Light distribution curve:
The light source of this luminaire is not replaceable,
when the light source reaches its end of life the whole
luminaire should be replaced by the manufacturer
or his service agent or a qualified electrician.
Caution, risk of electric
This marking indicates that this product should
not be disposed with other household wastes
throughout the EU.
INSTALLATION
LED
O
520
provided by
SAMSUNG
ST
VT-115ST
100W
4000K
13000LM
IP65 IK08
80
AC175-305V
50Hz
TYPE 11 S
30000H
IOKV
500
shock
SUSPENDING
INSTALLATION DIAGRAM:
1
3
4
1.Put the bracket part on the top terninal box, fasten the 2pcs M6 screws
by 5mm allen wrench and Ipc M 12outer hexagon screw by 18mm outer
hex wrench.
2. Hang up the street light on the rope, fasten the 2pcs M8 screwsby 6mm
allen wrench.
3.Loosethe 4pcs M4 screwsfrom the terninal box by 3mm allen wrench,
connect the wire, fasten the cable gland on 2 sides,then close the
terninal box.
4. Slide the screwsto adjust light distribution angle (If necessary),
±500 adjustable.
WIRING DIAGRAM:
Class II Standard
Neutral
Live
1. Connect supply wires to luminaire wire leads per the
wiringdiagram using methods that comply with all
applicable codes.
2. Turn power on.
INSTRUCTION
STREET LIGHT
2
Blue
LIGHT
Brown
