INSTRUCTION MANUAL

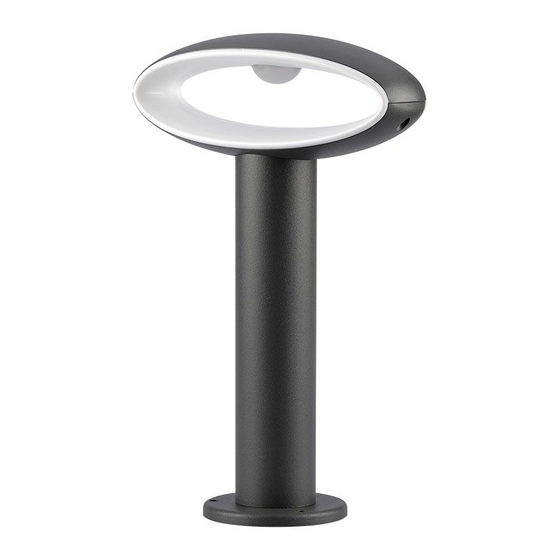

BOLLARD LAMP (VT-909)
TECHNICAL PARAMETERS
Model VT-909
Watts 9W
Lumens 500LM
LED Chip Solution 6V 150mA
No. of LED 8pcs
Beam Angle
300°
CRI >80
PF >0.9
Output Voltage 25.6V
Body Type Di e Ca s t Al umi ni um
Class Type CLASS I
Operation Temperature -20°-+40°
Surge Protection 1500V
Dimension 200Hx80x300mm
Input Power AC: 100-240V 50/60Hz
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and
ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not
apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against
damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12
Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for
manufacturing defects only.
WARNING!
1. Please make sure to turn off the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole
luminaire should be replaced.
4. Proper grounding should be ensured throughout the installation.
5. To comply with all safely standards, the product must be used only for the purpose described in this instruction and
must be installed in accordance with the wiring rules and regulation in the location where it is installed.
6. Check whether the product has been damaged during transport. Do not operate/install any product which appears
damaged in any way. Return the complete product to the place of purchase for inspection, repair orreplacement.
7. Lock out and tag the input circuit before accessing the wiring connections.
8. Hazardous voltage may be present at the wire leads of this product.
9. During and after use, the product may be hot.
Do not touch the product before it has completely cooled down.
10. Failure to follow these instructions can result in minor injuries,
or equipment damage.
11. Take care not to pull any electrical wires during unpacking
as this may damage the connections.
12. Isolate the electrical supply before commencing
any work on this equipment.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.

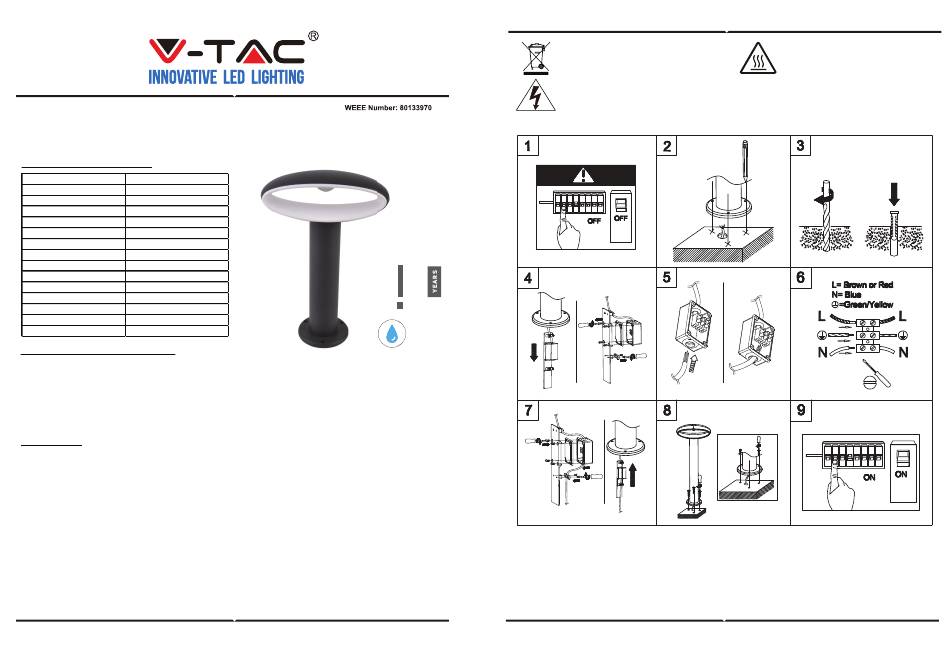

INSTALLATION DIAGRAM
2 2
*
WARRANTY WARRANTY
IP54
RATING
INSTALLATION INSTRUCTIONS
• Remove all packaging material from the product.
• Turn off power to related lighting circuit.
• Mark hole centers from fixing mounting base and drill holes.
• Pick out terminal box from lamp body and open the box for wiring.
• Close the terminal box and put it in lamp body.
• Screw the mounting base.
• Turn on the power and test the light.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
This symbol indicates dangers to the life
and health of persons due to hot surface.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
