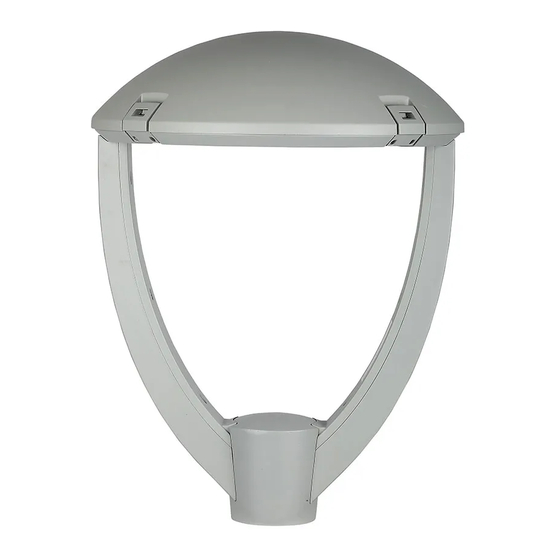

V-TAC VT-55 Einführung Und Gebrauchsanweisung

E INNOVATIV LED LIGHTING
50W
3800
1 oow
5200
y-TAC'
pRO
YEAR
WARRANTY
•suitable 10-12
POWER
CCT
LUMENS
PROTECTION
CRI Ra
VOLTAGE
FREQUENCY
BEAM ANGLE
LIFE
SURGE PROTECTION GRADE
MOUNTING DIAMETER
Light distribution curve:
The light source of this luminaire is not replaceable,
when the light source reaches its end of life the whole
luminaire should be replaced by the manufacturer
or his service agent or a qualified electrician.
Caution, risk of electric
This marking indicates that this product should
not be disposed with other household wastes
throughout the EU.
INSTALLATION
5105
627.0
provided by
SAMSUNG
VT-55 VT-105
50W 1 oow
4000K 4000K
6500LM 13000LM
IP65 IK08 IP65 IK08
80 80
AC175-305V AC175-305V
50Hz 50Hz
TYPE 111M TYPE Ill M
>0.9
30000H 30000B
IOKV IOKV
60MM 60MM
shock

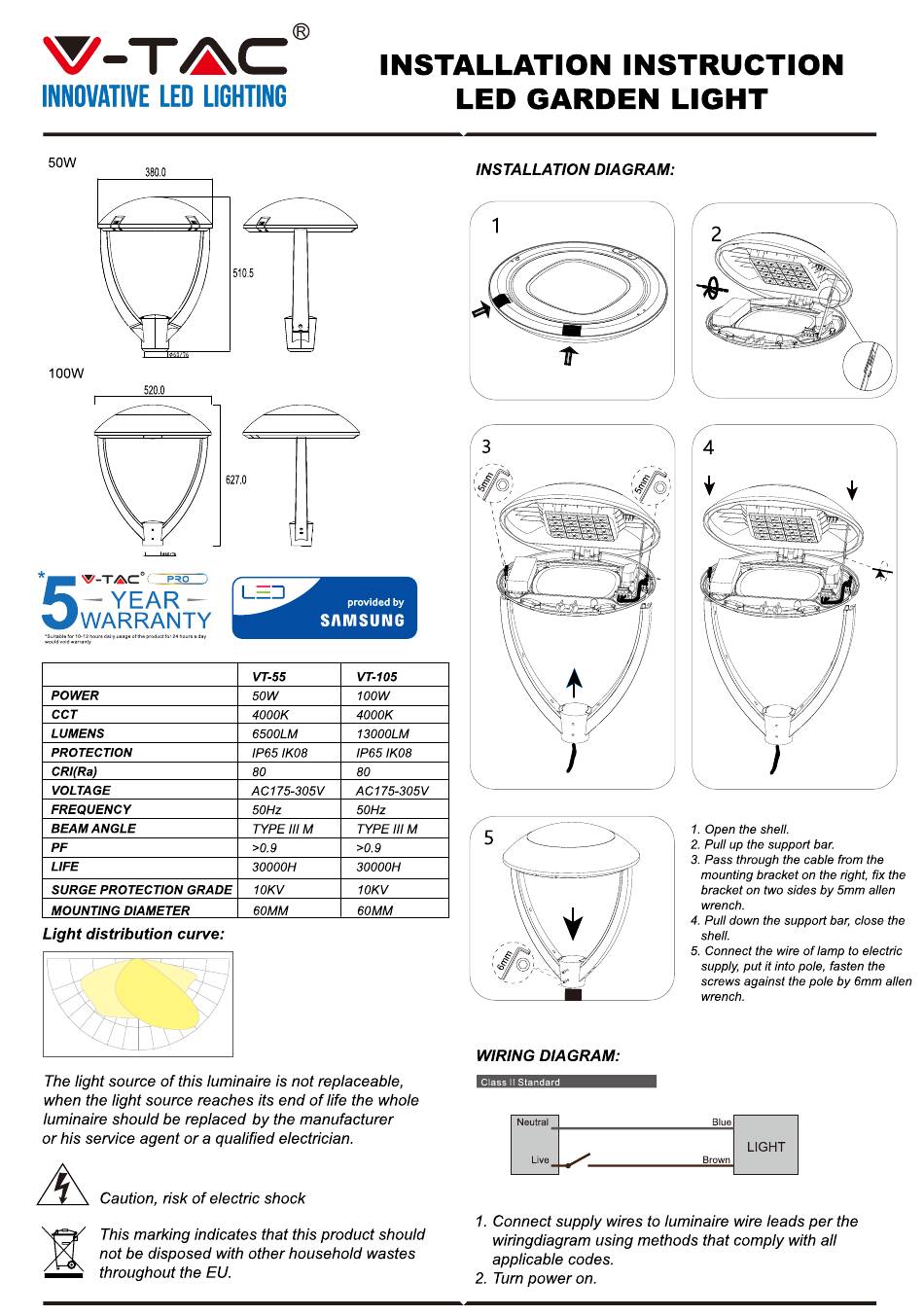

INSTRUCTION
LED GARDEN
INSTALLATION DIAGRAM:
1
3
5
WIRING DIAGRAM:
Class II Standard
Neutral
Live
1. Connect supply wires to luminaire wire leads per the
wiringdiagram using methods that comply with all
applicable codes.
2. Turn power on.
LIGHT
2
4
1. Open the shell.
2. Pull up the support bar.
3. Pass through the cable from the
mounting bracket on the right, fix the
bracket on two sides by 5mm allen
wrench.
4. Pull down the support bar, close the
shell.
5. Connect the wire of lamp to electric
supply, put it into pole, fasten the
screws against the pole by 6mm allen
wrench.
Blue
LIGHT
Brown
