en - WTS 610

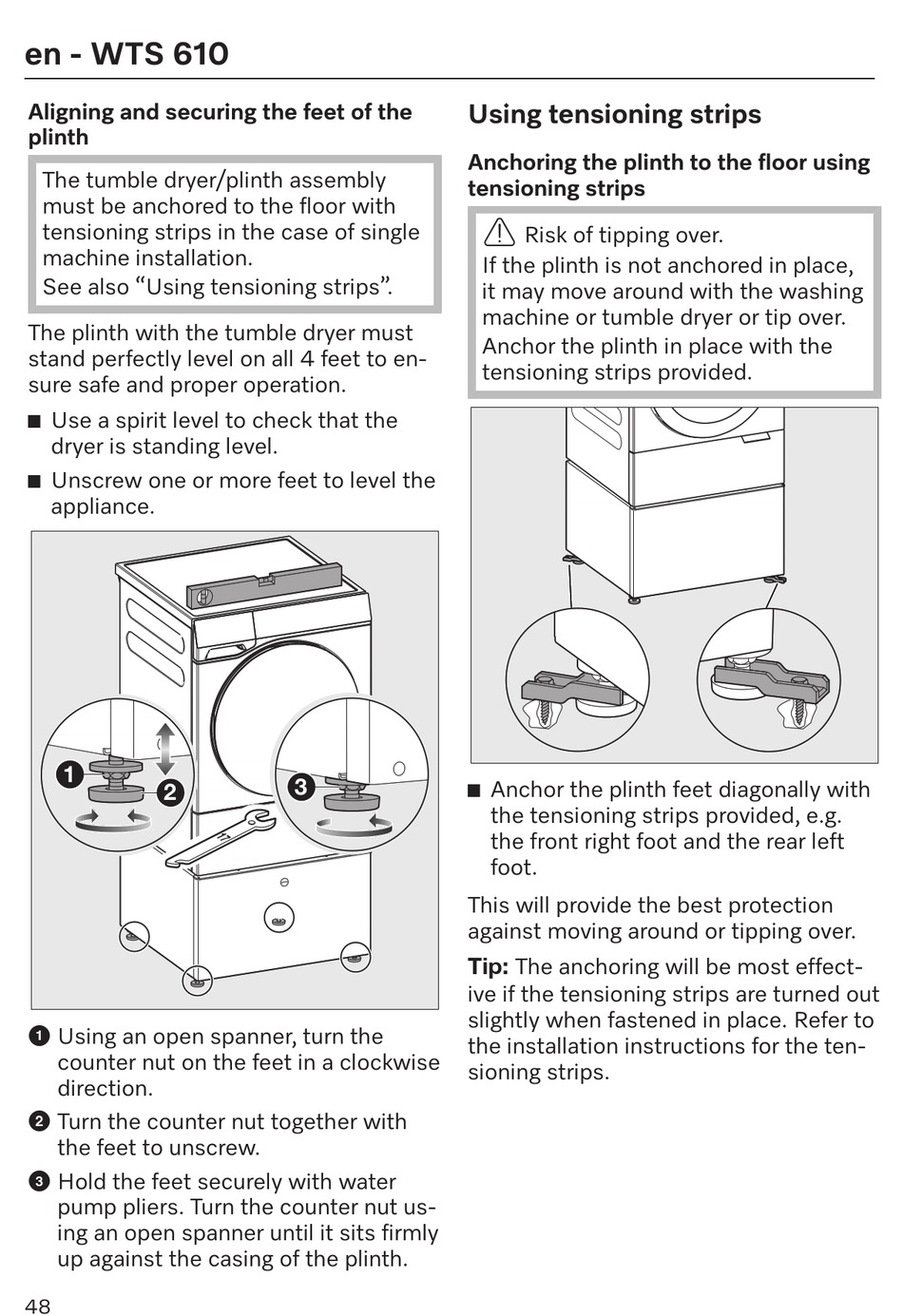

Aligning and securing the feet of the
plinth
The tumble dryer/plinth assembly
must be anchored to the floor with
tensioning strips in the case of single
machine installation.
See also "Using tensioning strips".
The plinth with the tumble dryer must
stand perfectly level on all 4 feet to en-
sure safe and proper operation.
 Use a spirit level to check that the
dryer is standing level.
 Unscrew one or more feet to level the
appliance.
1
2
 Using an open spanner, turn the
counter nut on the feet in a clockwise
direction.
 Turn the counter nut together with
the feet to unscrew.
 Hold the feet securely with water
pump pliers. Turn the counter nut us-
ing an open spanner until it sits firmly
up against the casing of the plinth.
48
3
Using tensioning strips
Anchoring the plinth to the floor using
tensioning strips

Risk of tipping over.
If the plinth is not anchored in place,
it may move around with the washing
machine or tumble dryer or tip over.
Anchor the plinth in place with the
tensioning strips provided.
 Anchor the plinth feet diagonally with
the tensioning strips provided, e.g.
the front right foot and the rear left
foot.
This will provide the best protection
against moving around or tipping over.
Tip: The anchoring will be most effect-
ive if the tensioning strips are turned out
slightly when fastened in place. Refer to
the installation instructions for the ten-
sioning strips.
