GB
J1: AUTO BATTERY INPUT
1. Input + AUTO battery (B1)
J2: SERVICE BATTERY INPUT
1. Input + SERVICE battery (B2)
J3 : NEGATIVE
1. NEGATIVE
J6 : Presence DC-DC
1. Presence DC-DC (connects to the negative)
J7 : NEGATIVE
JP1 : NEGATIVE
1.2.3.4.5.6.7.8.9: NEGATIVE
JP2: LIGHT OUTPUT (YELLOW)
1. output (+) (F8 15A)
2. LIGHTS_1 output (+) (F9 15A)
3. EXTERNAL LIGHT output (+) (F11 7,5A)
4. LIGHTS_2 output (+)(F10 15A)
JP3: SOCKET OUTPUT (RED)
1. output (+) (F4 10A)
2. output (+) (F7 10A)
3. output (+) (F6 10A)
4. output (+) (F5 10A)
JP4: FRIDGE OUTPUT (WHITE)
1.
Direct fridge (+) output
2. Fridge output (+) activated by relay (F2 20A)
3. Supply fridge board (F3 7,5A)
4. NEGATIVE
JP5: POWER OUTPUTS
1,4.
Ignition
2,3,5,7,8. AUX output (+) (F12 15A)
6,9.
output (F13 10A)
10,11.
D+ output (max 1A)
12.
PUMP output (+) (F13 10A)
JP6 : D+ OUTPUT
1.2. Positive output (max. 0.5A) to activate all
charges operating with engine running (e.g.
fridge AES, aerial entry, discharge valves, etc.)
JP7: TANK S3
See detailed table for the type of display control
panel (last page)
JP8: TANK S2
See detailed table for the type of display control
panel (last page)
JP9: TANK S1
See detailed table for the type of display control
panel (last page)
JP11: CONTROL PANEL
4-pole connector to connect the control panel with
the cable provided.
SHUNT NE356_D
(F2 20A)
(F11 7,5A)
JP13
RE7
4
1
2
5
6
3
9
6
12
JP5
8
5
11
4
1
JP11
10 7
4
1
RE6
JP9
6
1
JP2
JP8
YELLOW
6
JP6
2
1
JP7
4
J6
JP4
WHITE
1
JP16
GREEN
2
4 3 2 1
3
4
JP18
BLACK
RE3
9
3
J7
8
2
5
JP1
4
7
1
4
3
2
1
JP17
J3
BLACK
JP13: INPUT CONTROL: D+ , SIDE MARKER,
POWER MAIN
1. +Key-on input (C036L1A -13)
2. D+ input from alternator
3. POWER MAINS ON input from battery charger
4. Side marker positive control input
5. Side Marker negative control input
(C036L1A-11)
6. D+ negative control input (C036L1A -2)
JP14:
Side Marker left output
1. Side Marker sx output (+)
2. NEGATIVE
JP15:
Side Marker right output
1. Side Marker dx output (+)
2. NEGATIVE
JP16: PREDISPOSITION (GREEN)
1. free (F2 20A)
2. free (F3 7,5 A)
3. NEGATIVE
4. SOLAR PANEL +Service Battery (F4 10A)
JP17, JP18 : NEGATIVE (BLACK)
1.2.3.4: NEGATIVE
7
RE8
3

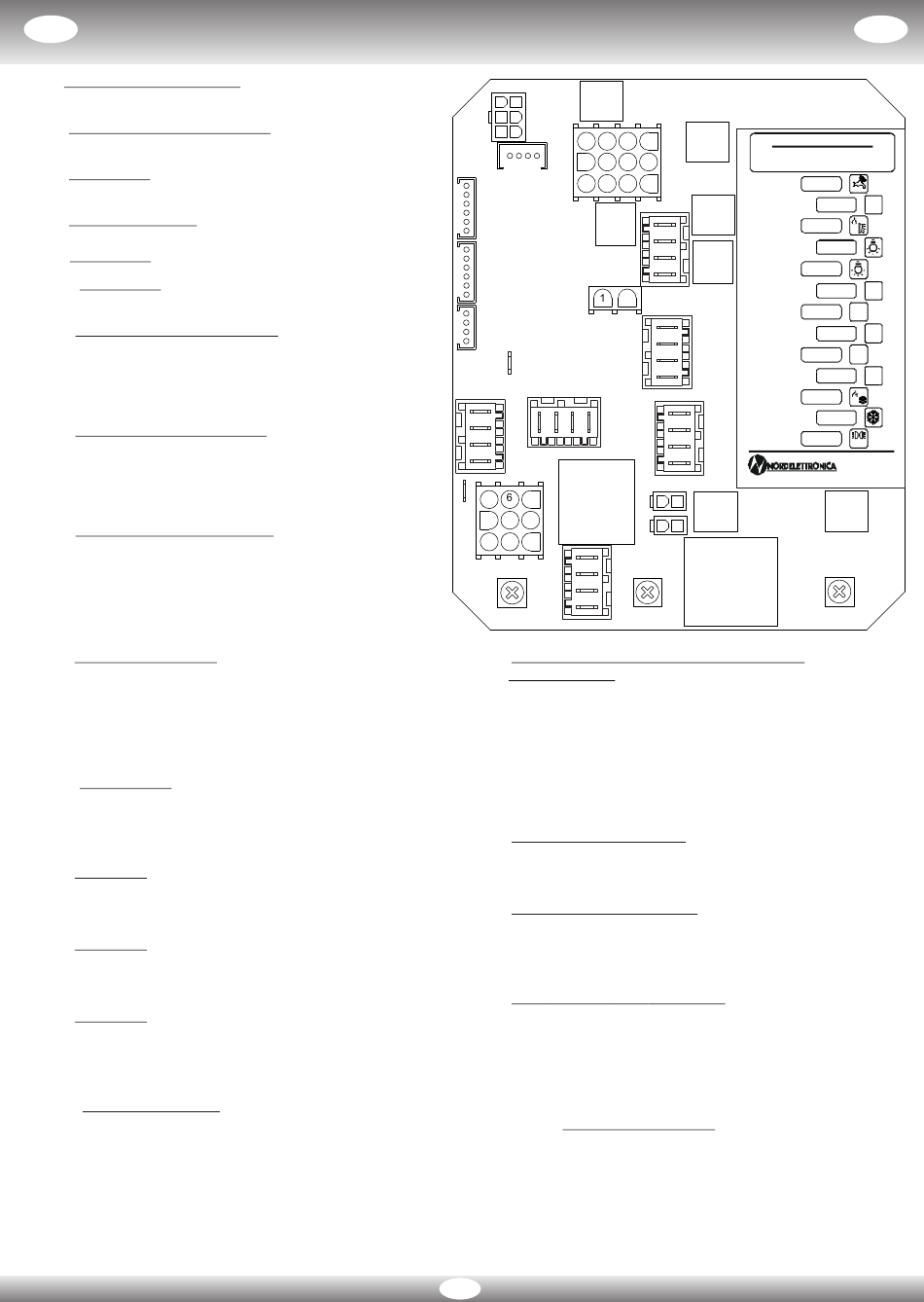

DISTRIBUTION 12V
12V DISTRIBUTION
2
MOD. NE356-D
1
F13
10A
RE4
F12
4
F11
7,5A
3
RE5
F10
2
1
F9
15A
F8
F7
10A
1
F6
2
JP3
F5
10A
3
RED
4
F4
F3
7,5A
4
F2
3
F1
5A
2
1
www.nordelettronica.it
JP15
RE2
2 1
2
1
JP14
RE1
J1
(F1 5A)
(F1 5A)
GB
15A
AUX
2
15A
1
15A
12V
TV
10A
SDB
PC
TV
10A
DEMO
20A
S.M.
NE356DV0
RE9
J2
