5.2. Installation instructions
1) Make sure that nothing is obstructing your support during installation.
2) Place the Dimension sound bar on the front edge of your support. Connect all the required cables to Dimension
(HDMI , optical, RCA, power) except for the dedicated cable for connecting Dimension Sub to the sound bar.
TM

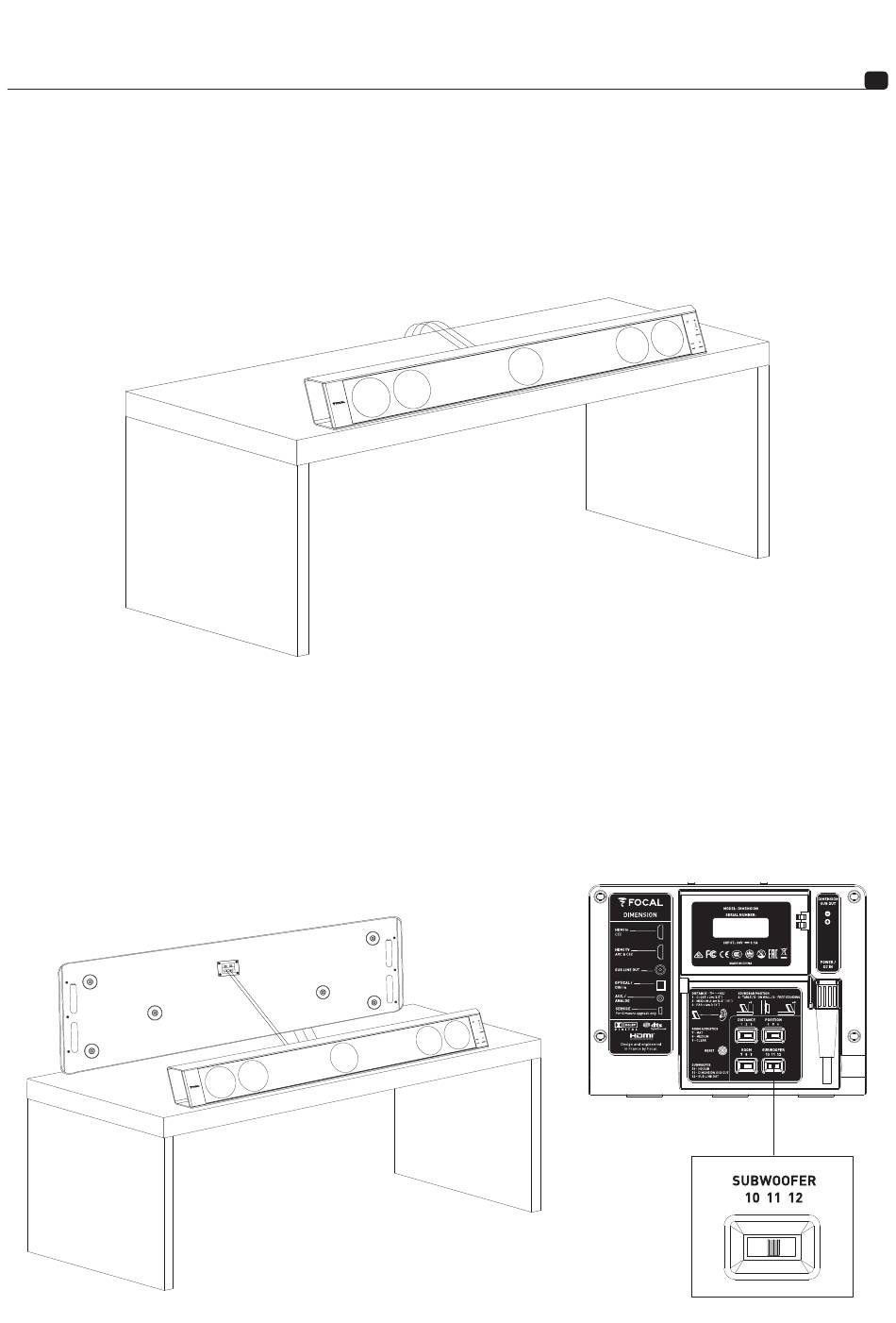

3) Tilt Dimension Sub onto its rear as shown in the following diagram.
4) Connect Dimension Sub to the Dimension sound bar using the dedicated audio cable provided.
Be careful to respect the polarities.
5) Check that the "SUBWOOFER" settings selector on the sound bar is set to 11 – "DIMENSION SUB OUT".
