English

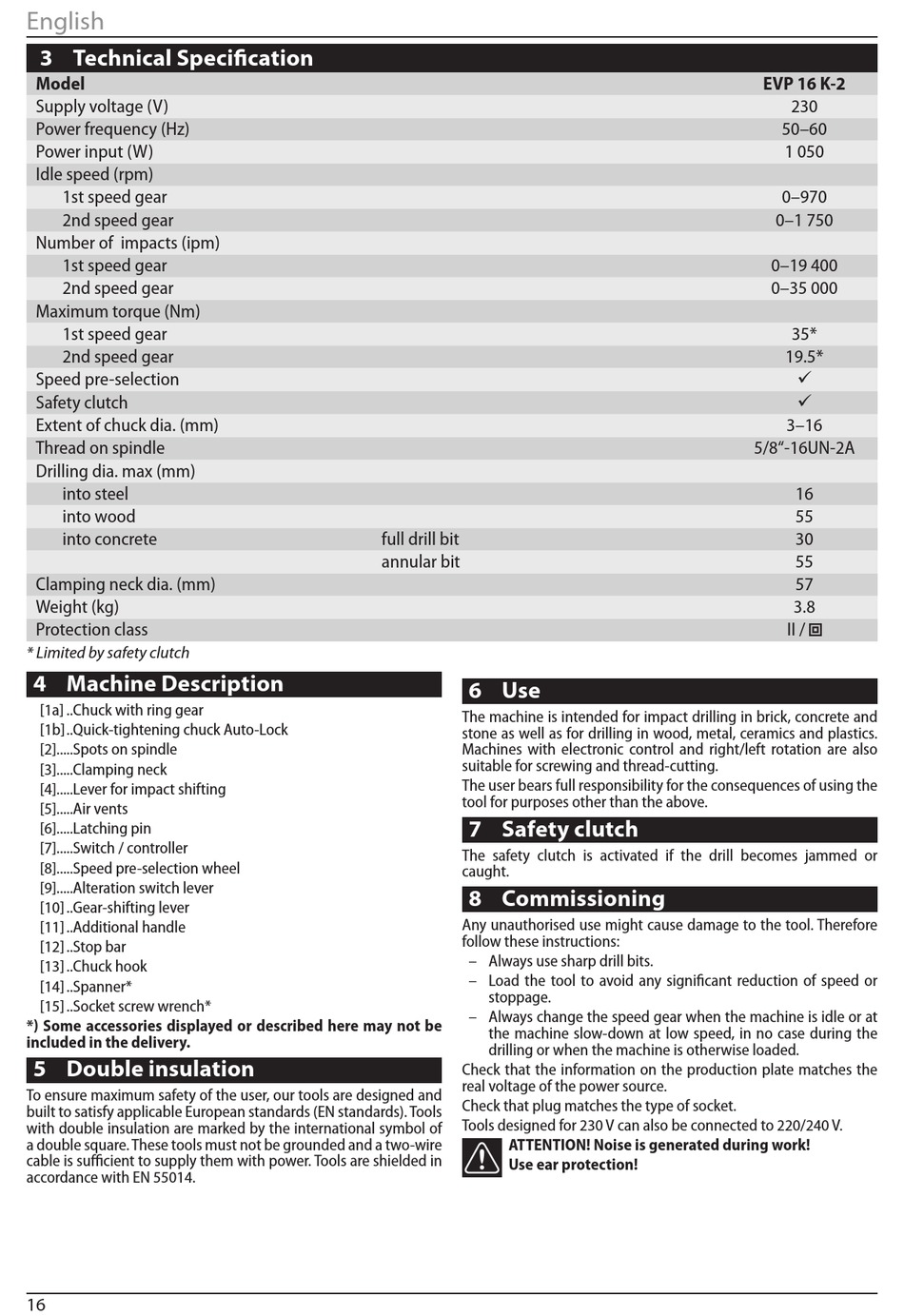

3 Technical Specification
Model
Supply voltage (V)
Power frequency (Hz)
Power input (W)
Idle speed (rpm)
1st speed gear
2nd speed gear
Number of impacts (ipm)
1st speed gear
2nd speed gear
Maximum torque (Nm)
1st speed gear
2nd speed gear
Speed pre‑selection
Safety clutch
Extent of chuck dia. (mm)
Thread on spindle
Drilling dia. max (mm)
into steel
into wood
into concrete
Clamping neck dia. (mm)
Weight (kg)
Protection class
* Limited by safety clutch
4 Machine Description
[1a] ..Chuck with ring gear
[1b] ..Quick‑tightening chuck Auto‑Lock
[2].....Spots on spindle
[3].....Clamping neck
[4].....Lever for impact shifting
[5].....Air vents
[6].....Latching pin
[7].....Switch / controller
[8].....Speed pre‑selection wheel
[9].....Alteration switch lever
[10] ..Gear‑shifting lever
[11] ..Additional handle
[12] ..Stop bar
[13] ..Chuck hook
[14] ..Spanner*
[15] ..Socket screw wrench*
*) Some accessories displayed or described here may not be
included in the delivery.
5 Double insulation
To ensure maximum safety of the user, our tools are designed and
built to satisfy applicable European standards (EN standards). Tools
with double insulation are marked by the international symbol of
a double square. These tools must not be grounded and a two‑wire
cable is sufficient to supply them with power. Tools are shielded in
accordance with EN 55014.
16
full drill bit
annular bit
6 Use
The machine is intended for impact drilling in brick, concrete and
stone as well as for drilling in wood, metal, ceramics and plastics.
Machines with electronic control and right/left rotation are also
suitable for screwing and thread‑cutting.
The user bears full responsibility for the consequences of using the
tool for purposes other than the above.
7 Safety clutch
The safety clutch is activated if the drill becomes jammed or
caught.
8 Commissioning
Any unauthorised use might cause damage to the tool. Therefore
follow these instructions:
– Always use sharp drill bits.
– Load the tool to avoid any significant reduction of speed or
stoppage.
– Always change the speed gear when the machine is idle or at
the machine slow‑down at low speed, in no case during the
drilling or when the machine is otherwise loaded.
Check that the information on the production plate matches the
real voltage of the power source.
Check that plug matches the type of socket.
Tools designed for 230 V can also be connected to 220/240 V.
ATTENTION! Noise is generated during work!
Use ear protection!
EVP 16 K-2
230
50–60
1 050
0–970
0–1 750
0–19 400
0–35 000
35*
19.5*
3–16
5/8"‑16UN‑2A
16
55
30
55
57
3.8
II /
