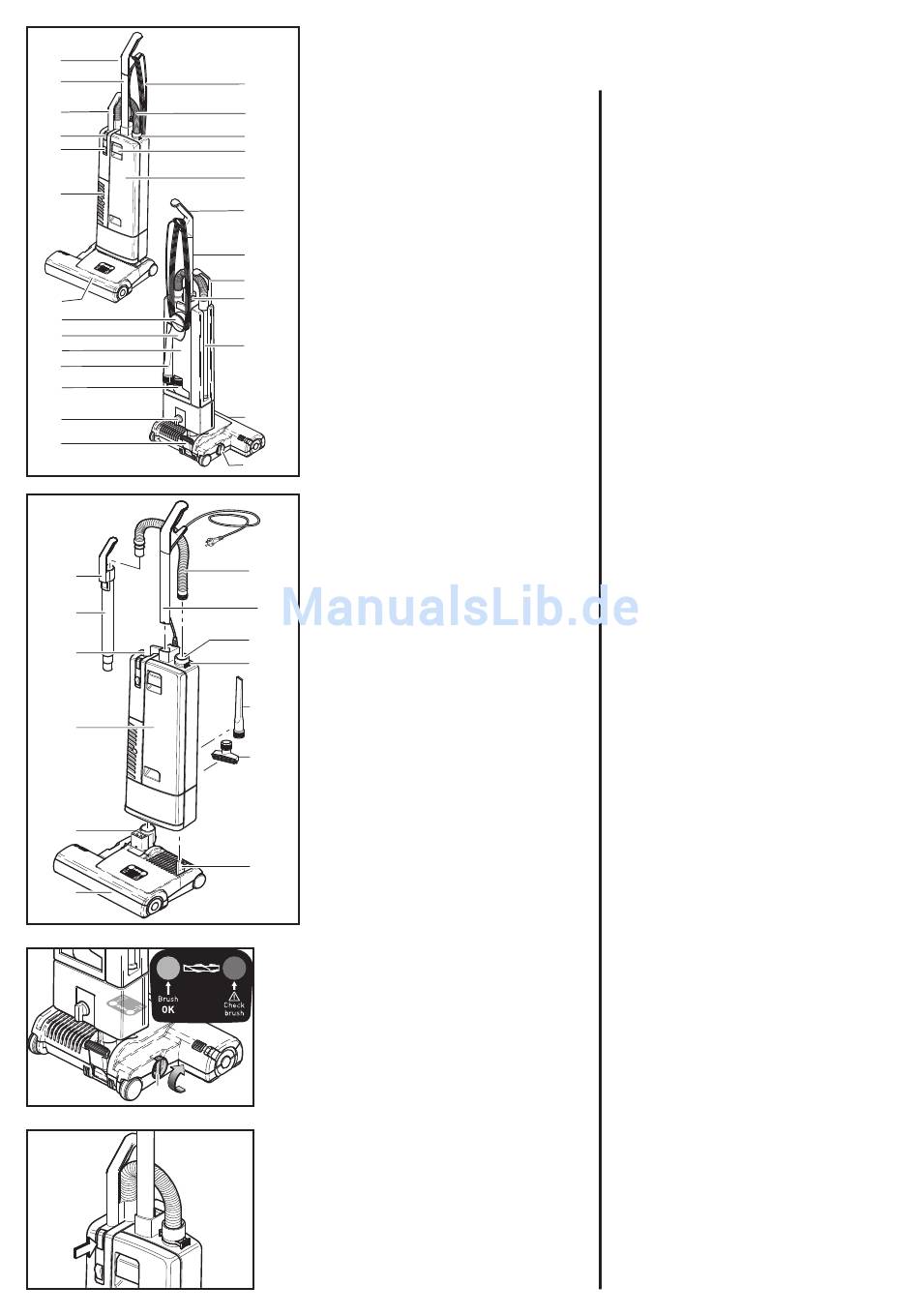

Universalstaubsauger 370/470 COMFORT
Carpet Vacuum 370/470 COMFORT
14
1
Griff
2
Stiel
12
3
Filterfüllanzeige
13
4
Schalter
5
5
Deckelschloß
6
Ausblasgitter
7
7
Deckel
9
Elektrobürste
1
10 Verriegelungsknopf
11 Rastpedal
12 Schlauch
2
13 Sicherungsring
15
14 Anschlußleitung
16
15 Handgriff des Teleskopsaugrohres
16 Exzenterhebel
17 Griffmulde / Tragegriff
18 Leitungshaken
19
19 Teleskopsaugrohr
20 Filtergehäuse
21 Fugendüse
22 Polsterdüse
9
23 Stellknopf

5. Inbetriebnahme

23
Elektrobürste (9) auf ebene Unterlage stellen, Ge-
lenk (26) und Gelenkarm (27) senkrecht aufrichten.
Verriegelungsknopf (10) am Filtergehäuse (20) ca.
45° nach links drehen, Filtergehäuse senkrecht
auf Gelenk und Gelenkarm aufstecken und Ver-
12
riegelungsknopf wieder nach rechts in senkrechte
Stellung drehen. Für die Stielbefestigung den Ex-
2
zenterhebel (16) am Filtergehäuse (20) nach vorn
drehen, Stiel (2) in Aufnahme im Filtergehäuse
25
stecken bis der Stiel im Gehäusegrund aufstößt,
Exzenterhebel nach hinten drehen. Teleskopsaug-
13
rohr (19) in seitliche Gehäusemulde einführen und
nach unten in die Gehäuseöffnung drücken, der
21
Handgriff des Teleskopsaugrohres (15) muß sich
dabei über den Nocken (24) schieben. Die pas-
sende Schlauchseite in das Teleskopsaugrohr (19)
einführen. Zum Anschließen des Schlauches (12)
22
an das Filtergehäuse, das Ende mit der schwarzen
Buchse in die Verbindungshülse (25) einführen und
ganz einschieben. Zum Lösen des Schlauchs den
Sicherungsring (13) an den Griffflächen zusam-
mendrücken.
27
Bürstenkontrolle
Die Bürstenkontrolle überwacht ständig die Funk-
tion der Bürste.
Grün-Licht: Bürste arbeitet gut.
Grün- und Rot-Licht: Teppichbürste durch Drehen
des Stellknopfes (23) auf eine niedrigere Zahl stel-
len.
Bei Stellung 1 und Grün- und Rot-Licht: Wechsel
des Bürstenstreifens.
Rot-Licht blinkt: Die Bürste wurde blockiert oder
überlastet. Das Gerät ausschalten, den Netzstek-
ker ziehen und die Bürste auf Verunreinigung prü-
fen.
Filterfüllanzeige
Bei Aufleuchten der Kontrollleuchte (3) bitte
prüfen:
a) ist die Filtertüte voll ?
b) ist die Teppichbürste verstopft ?
c) ist der Saugschlauch verstopft ?
Entweder Filtertüte wechseln oder Verstopfung
beseitigen. Es liegt keine Störung vor, wenn beim
Saugen mit dem Saugschlauch das Handrohr ver-
schlossen wird und die Lampe aufleuchtet.
1
Handle grip
2
Handle assembly
3
Bag full indicator
4
On / Off switch
5
Cover release latch
6
Exhaust filter cover
7
Front cover
9
Power head
10 Locking catch
11 Foot pedal
12 Hose
13 Retaining ring
14 Cable
15 Attachment tube handle
16 Handle catch
17 Carrying handle
18 Cable hook
19 Attachment tube
20 Dust bag housing
21 Crevice nozzle
22 Upholstery nozzle
23 Pile adjustment knob

5. Preparation

Put the power head (9) on the floor with swivel neck
(26) and support lever (27) upright. Turn the lock-
ing catch (10) on the filter bag housing (20) to the
left and place it carefully on the swivel neck and the
support lever. Then turn the locking catch back.
To lock the handle turn the handle catch (16) at the
handle joint of the filter bag housing (20) forward,
then slide the handle assembly (2) in as far as pos-
sible and lock it with the handle catch.
Insert the attachment tube (19) into its storage
position on the side of the machine. The attach-
ment tube handle (15) must be placed on the pro-
jection (24). Slide the proper end of the hose into
the tube (19). To connect the hose with the filter bag
housing insert the black hose end into the connect-
ing tube (25) and slide it in completely. To unlock
the hose press the retaining ring (13) at the project-
ing sections.
Brush controller
The electronic brush controller monitors the op-
eration of the brush.
Green light: brush set correctly and running.
Green and red light: Brush too high. Adjust the
brush setting by turning the pile adjustment knob
(23) to a lower number.
If the green and red light are still on at position
number one the brush strips is worn out and must
be replaced.
Red light blinking: The brush is blocked and is not
turning. Switch machine off, unplug from the sock-
et and clear the blockage.
Bag full indicator
If warning light (3) comes on check:
a) Is the dust bag full ?
b) Is there a blockage in the hose or power head?
