VC-H88GM
Format:
Video recording system:
Video signals:
Recording/playing time:
Tape width:
Tape speed:
Antenna:
Receiving channel:
RF converter output signal:
Power requirement:
Power consumption:
Operating temperature:
Storage temperature:
Weight:
Dimensions:
Video
Input:
Output:
S/N ratio:
Horizontal resolution:
Audio
Input:
Output:
S/N ratio:
Hi-Fi dynamic range:
Hi-Fi wow and flutter:
Frequency responce:
Accessories included:
Note:

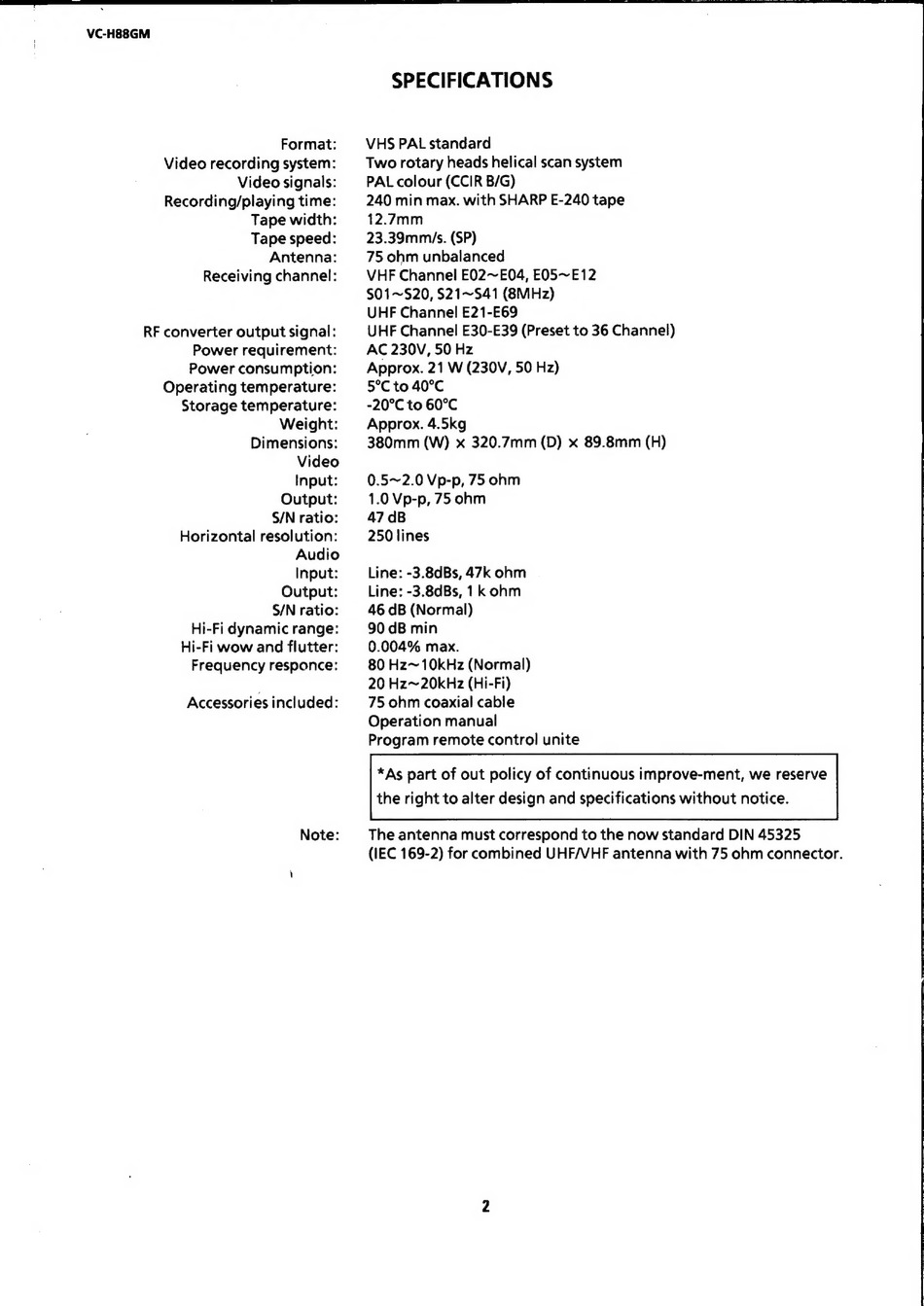

SPECIFICATIONS
VHS PAL standard
Two rotary heads helical scan system
PAL colour (CCIR B/G)
240 min max. with SHARP E-240 tape
12.7mm
23.39mm/s. (SP)
75 ohm unbalanced
VHF Channel E02~£04, EOS5~E12
$01~$20, $21~$41 (8MHz)
UHF Channel E21-E69
UHF Channel E30-E39 (Preset to 36 Channel)
AC 230V, 50 Hz
Approx. 21 W (230V, 50 Hz)
5°C to 40°C
-20°C to 60°C
Approx. 4.5kg
380mm (W) x 320.7mm (D) x 89.8mm (H)
0.5~2.0 Vp-p, 75 ohm
1.0 Vp-p, 75 ohm
47 dB
250 lines
Line: -3.8dBs, 47k ohm
Line: -3.8dBs, 1k ohm
46 dB (Normal)
90 dB min
0.004% max.
80 Hz~ 10kHz (Normal)
20 Hz~20kHz (Hi-Fi)
75 ohm coaxial cable
Operation manual
Program remote control unite
*As part of out policy of continuous improve-ment, we reserve
the right to alter design and specifications without notice.
The antenna must correspond to the now standard DIN 45325
(IEC 169-2) for combined UHF/VHF antenna with 75 ohm connector.
