Sunshower PURE Montageanleitung Seite 6

A
B
C
E
PREPARATION
D
INSTALLATION MANUAL PURE | PART I | P1528 REV F

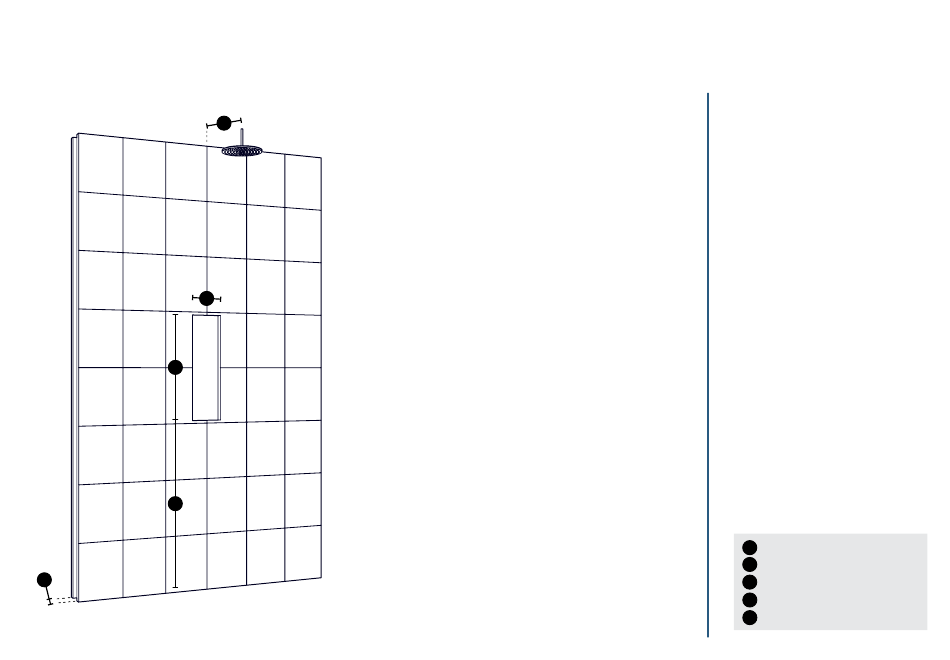

DIMENSIONS
INSTRUCTIONS
Make the recess in the wall
according to the dimensions shown.
A recess height of 91 cm can be used
for users between 170 cm and 190
cm in height.
For other heights, the following size
is advised:
Hip height - 4 cm
REQUIRED TOOLS
□ Measuring tape
□ Spirit level
A
176 MM
B 596 MM
C
910 MM
D 450 MM
E
MIN 110 MM
P9 / P10
SEE
6
