Quick guide
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT
In order to receive a more complete assistance, please
register your product on

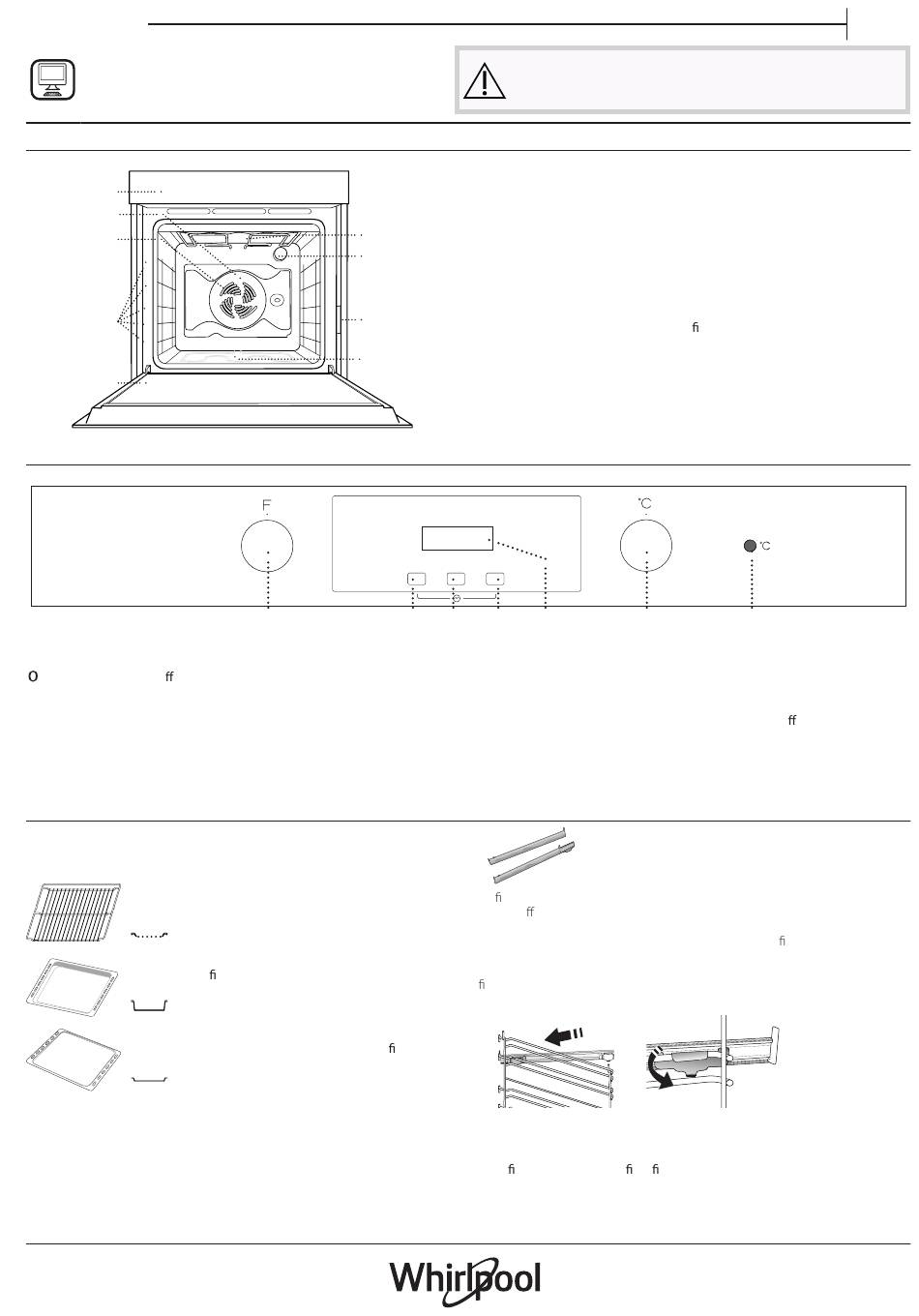

PRODUCT DESCRIPTION
1
2
3
5
4
3
4
2
1
5
CONTROL PANEL
1. SELECTION KNOB
For switching the oven on by selecting a function. Turn to the position
to switch the oven o .
2. - / + BUTTONS
To decrease or increase the value shown on the display.
3. TIME BUTTON
For selecting the various settings: duration, cooking end time, timer.
ACCESSORIES
The number and type of accessories may vary depending on which model
is purchased. Other accessories that are not supplied can be purchased
separately from the After-sales Service.
WIRE SHELF. Use to cook food or as a support
for pans, cake tins and other ovenproof items of
cookware.
DRIP TRAY. Use as an oven tray for cooking
meat, sh, vegetables, focaccia, etc. or position
underneath the wire shelf to collect cooking
juices.
BAKING TRAY. Use for cooking all bread and
pastry products, but also for roasts, sh en
papillotte, etc.
Insert the wire shelf horizontally by sliding it across the shelf guides,
making sure that the side with the raised edge is facing upwards. Other
accessories, such as the drip tray and the baking tray, are inserted
horizontally in the same way as the wire shelf.
* Available only on certain models
www.whirlpool.eu/register
6
7
5
4
3
8
2
1
9
1 2
Before using the appliance carefully read the Safety
Instruction.
3 2 4
4. DISPLAY
5. THERMOSTAT KNOB
Turn to select a desired temperature, activating the selected function.
6. LED THERMOSTAT / PREHEATING
Switches on during the heating process. Switches o once the desired
temperature is reached.
Please note: The knobs are retractable. Press the knobs in the middle and
they pop up.
SLIDING RUNNERS.*
To facilitate inserting or removing accessories.
To t the sliding runners, remove the shelf guides and take the protective
plastic o of them. Fasten the upper clip of the runner to the shelf guide
and slide it along as far as it will go (1). Lower other clip into position. To
secure the guide, press the lower portion of the clip rmly against the shelf
guide (2). Make sure that the runners can move freely. Repeat these steps
on the other shelf guide on the same level. The sliding runners can be
tted on any level. Reposition the shelf guides and rest the accessories on
them.
1
REMOVING AND REFITTING THE SHELF GUIDES
To remove the shelf guides, lift the guides up and then gently pull the
lower part out of its seating: the shelf guides can now be removed.
To re t the shelf guides, rst t them back into their upper seating.
Keeping them held up, slide them into the cooking compartment, then
lower them into position in the lower seating.
1.
Control panel
2.
Circular heating element
(non-visible)
3. Fan
4. Shelf guides
(the level is indicated on the front of the
oven)
5. Door
6. Upper heating element/grill
7.
Lamp
8.
Identi cation plate
(do not remove)
9. Bottom heating element
(non-visible)
5 6
2
EN
