Swim & Fun 600 Bedienungsanleitung Seite 63

UK
4.1 Filter parts installation

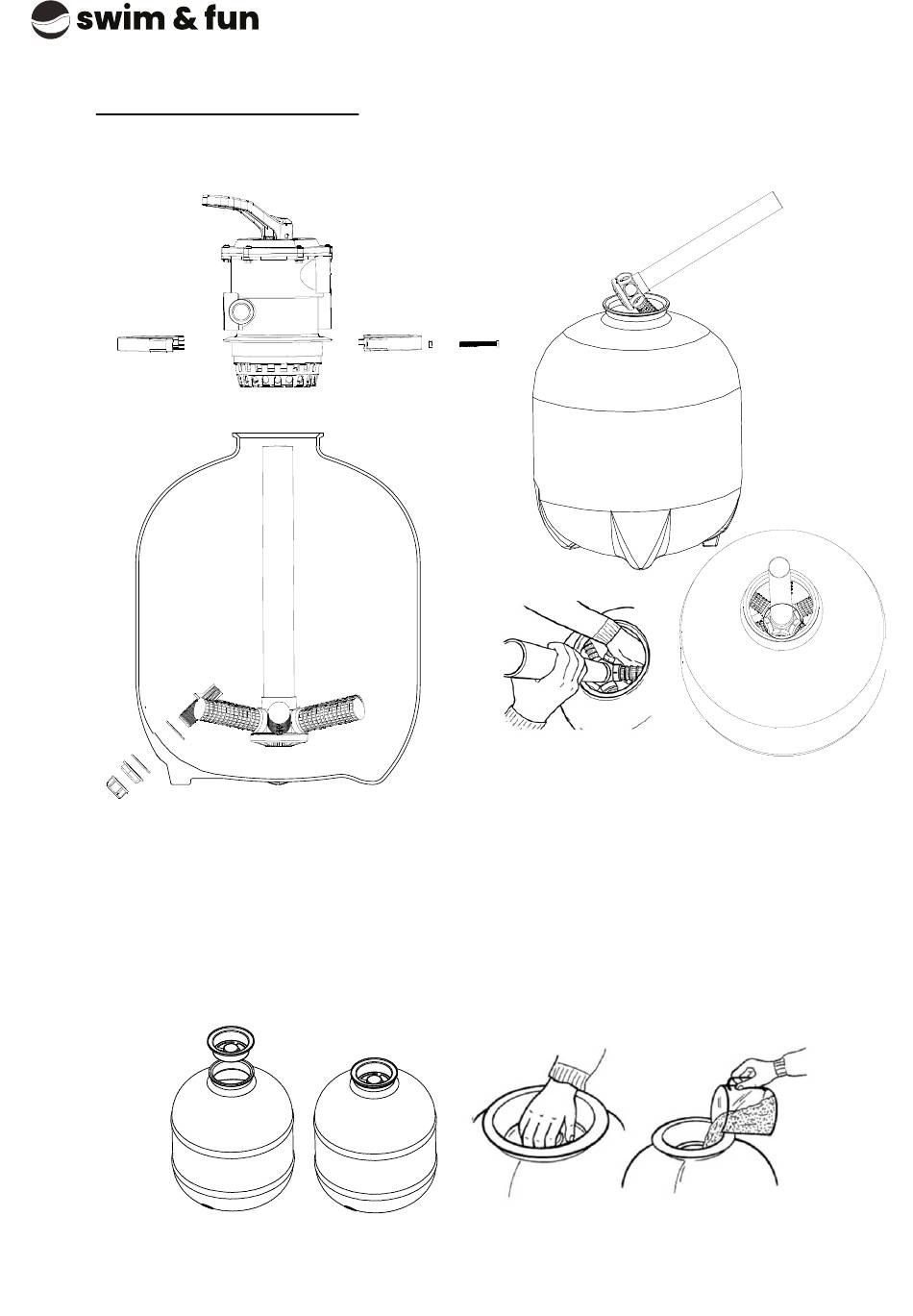

Insert the tube with the manifold in the tank (fig.1) and screw the small sand guard filters to the
manifold (fig.2).
Fig. 1 Fig. 2
Place the completed manifold on the foundation in the middle of the tank and fill halfway with
water to stabilize it. Make sure that the star-shaped gauze is well centralized in the bottom of the
filter and that the purge screw is tight.
Fill the tank with filtermaterial (see volume under section 1).
If you use sand/ filter glass: To prevent sand/filter glass from getting into the manifold during
filling, and make sure that the tube is centered on the manifold, place the spigot (part no. 9) on the
mouth of the container as shown in fig. 3 & 4.
Fig 3 Fig 4
MV-1042-06-2022 . © Alle rettigheder forbeholdes Swim & Fun A/S
63
