Celestron POWERSEEKER 80AZS Kurzanleitung Zur Einrichtung Seite 2

10 10

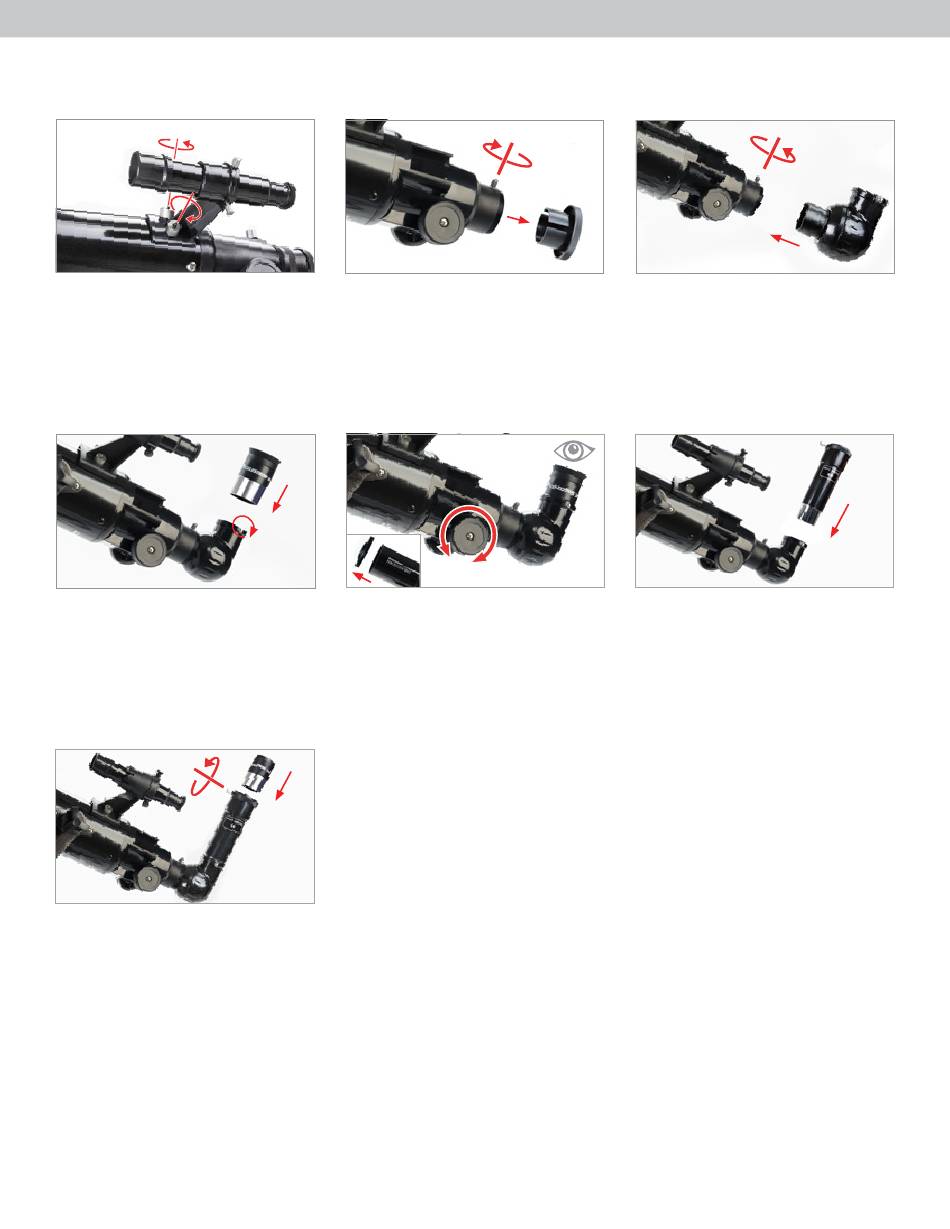

Locate the finderscope and remove plastic caps on front and back of
lens. Orient the finderscope so that the longer lens is facing towards
the front of the tube as shown here. Place finderscope over the posts
on the tube and replace knurled nuts to secure.
13 14 13
Insert the barrel of the 20mm eyepiece into the diagonal and tighten
the set screw, being careful not to overtighten.
16 16
Next, insert the barrel of the 20mm eyepiece into the Barlow and
tighten the set screws to secure it in place.
2 | E N G L I S H
11 11
Loosen the screws on the focuser so they do not obstruct the
inner diameter of the focuser. Remove the plastic cap covering the
end of the focuser.
14 14
Remove the lens cap from the front of the telescope. To observe, look
through the eyepiece as shown above. Focus the image by turning the
knobs below the focuser.
12 12
Locate the diagonal and remove the plastic covers. Insert the barrel
of the diagonal into the focuser and secure in place by tightening
the set screws.
15 15
For additional magnification, you can use the included 3x Barlow lens.
Place the Barlow lens in the diagonal in place of the eyepiece. Remove
the cap from the Barlow.
