• Installing on biological microscopes

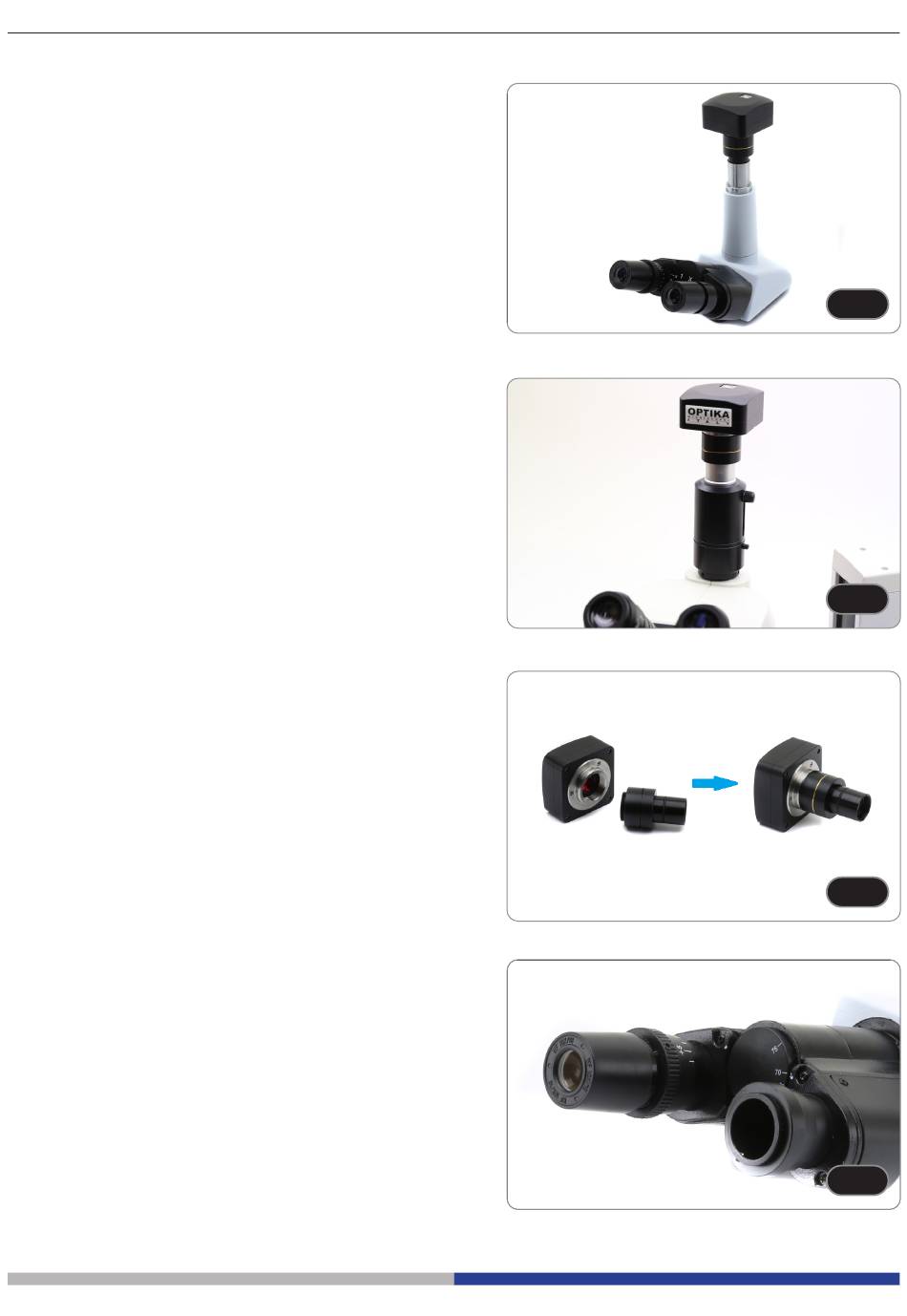

3. Insert the final part of the projection lens into the empty hole
of the photo tube. (Fig. 5)
• Installing on stereo microscopes
4. Insert the final part of the projection lens into the empty hole
of the photo tube. (Fig. 6)
8.1.3 Binocular or monocular head
• Any OPTIKA monocular or binocular microscope/stereo mi-
croscope (eyepiece sleeve with diameter 23 mm).
• Any non-OPTIKA monocular or binocular microscope/stereo
microscope (eyepiece sleeve with diameter 23 mm).
1. Remove the dust cover from camera and from projection
lens.
2. Screw the projection lens to the camera's thread. (Fig. 7)
3. Remove one eyepiece from the observation head. (Fig. 8)
Page 8
F ig. 5 F ig. 5
F ig. 6 F ig. 6
F ig. 7 F ig. 7
F ig. 8 F ig. 8
