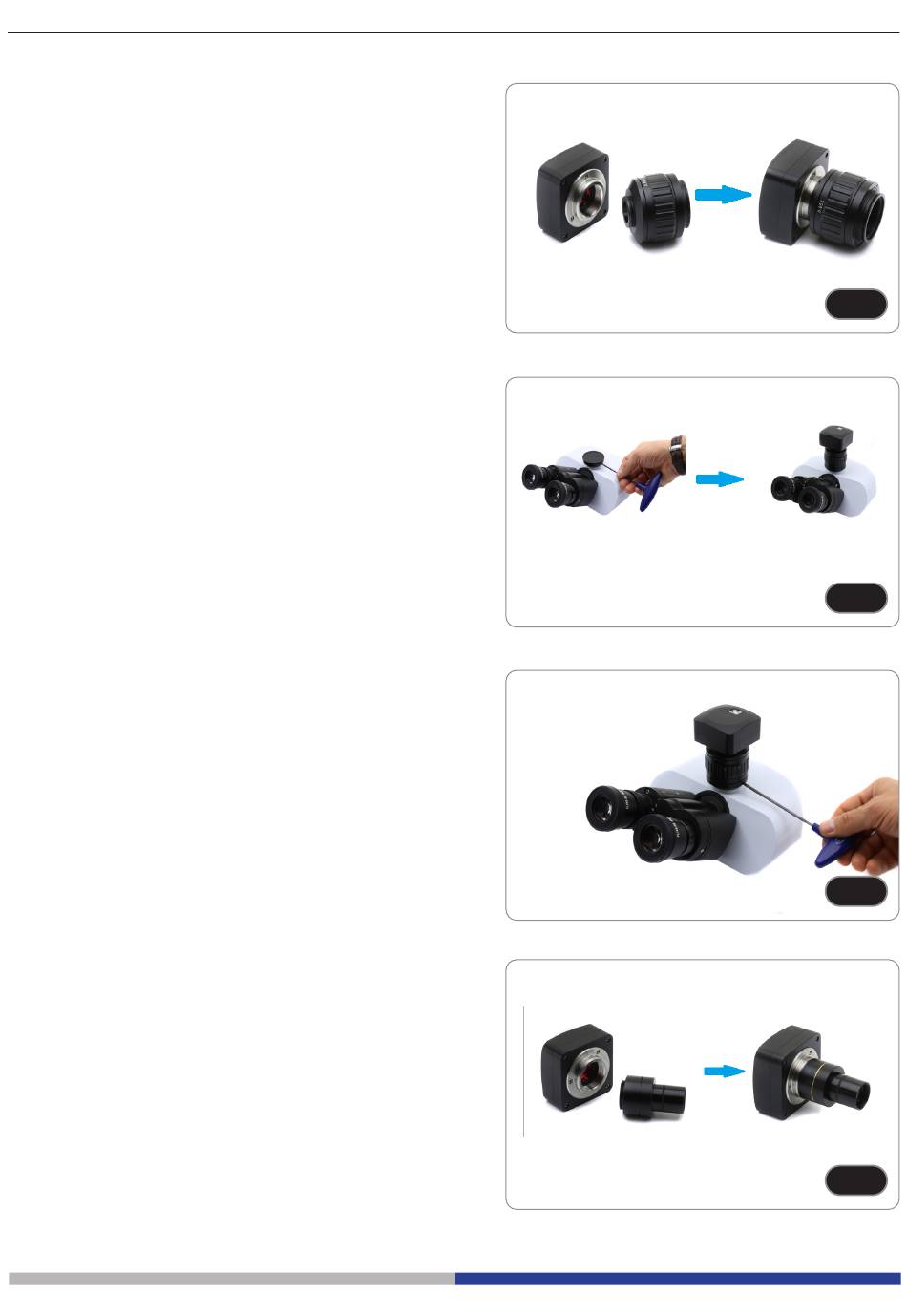

8. Assembling
8.1 Assembling on microscope
8.1.1 Trinocular port with focusable "C" mount adapter
1. Remove the dust cover from camera and from "C" mount
adapter.
2. Screw the "C" mount adapter to the camera's thread. (Fig. 1)
** These images represent the installation of a generic camera. The C-WF2 is
installed in exactly the same way.
3. Loosen the clamping screw on the trinocular port of the mi-
croscope, remove the dust cover and install the camera "C"
mount unit previously assembled. (Fig. 2)
4. Tighten the clamping screw firmly. (Fig. 3)
8.1.2 Trinocular port with projection lens
1. Remove the dust cover from camera and from projection
lens.
2. Screw the projection lens to the camera's thread. (Fig. 4)
Page 7
F ig. 1 F ig. 1
F ig. 2 F ig. 2
F ig. 3 F ig. 3
F ig. 4 F ig. 4
