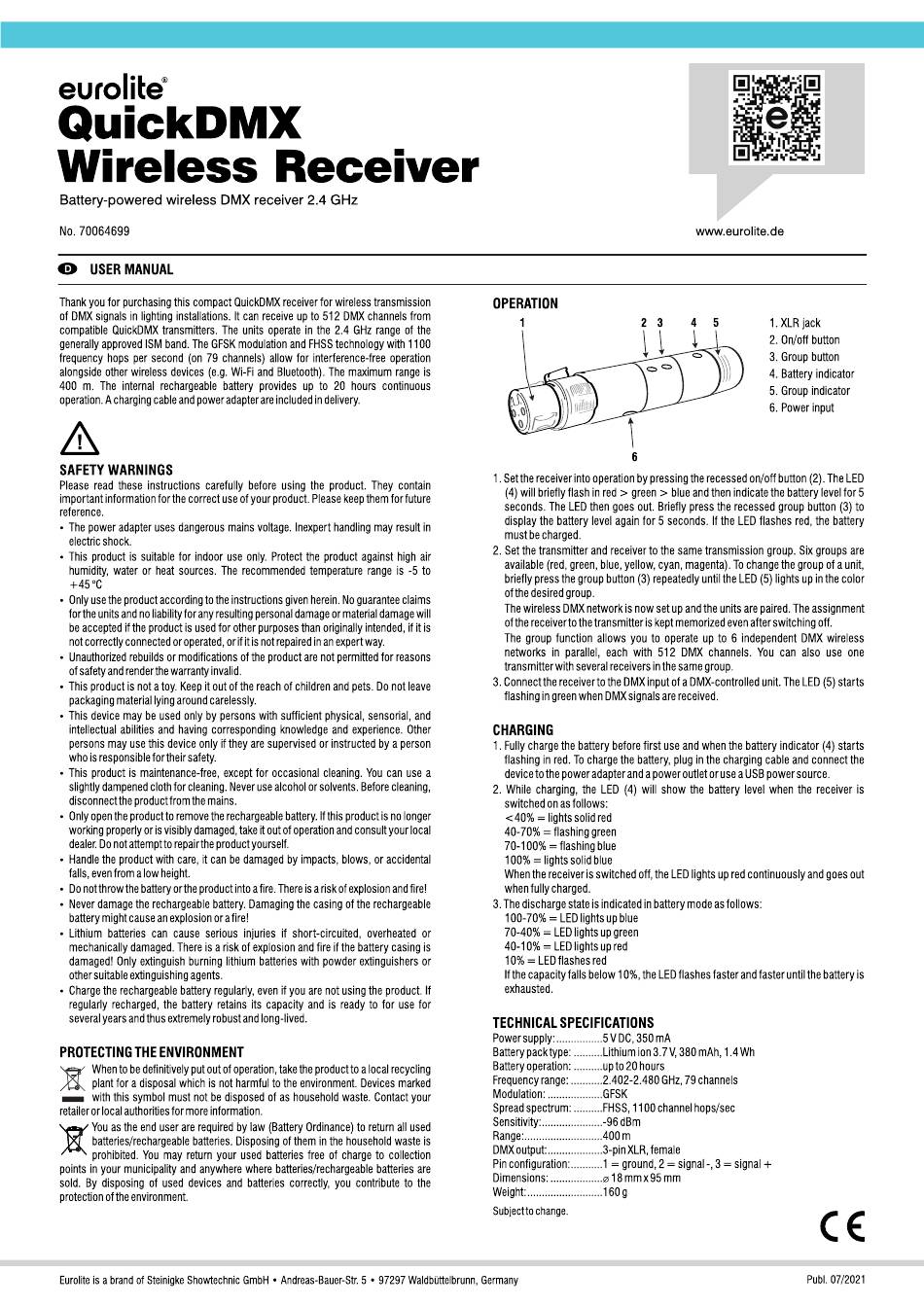

EuroLite QuickDMX Bedienungsanleitung Seite 2

eucolite
QuickDMX
Wireless
Battery-powered wireless DMX receiver 2.4 GHz
No. 70064699
O USER MANUAL
Thank you for purchasingthis compact QuickDMXreceiverfor wirelesstransmission
of DMX signals in lighting installations.It can receiveup to 512 DMX channelsfrom
compatible QuickDMXtransmitters The units operate in the 24 GHz range of the
generallyapprovedISM band.The GFSKmodulationand FHSS technology with 1100
frequency hops per second (on 79 channels) al ow for interferencefree operation
alongsideother wireless devices (e.g. Wi-Fi and Bluetooth).The maximum range is
400 m. The internal rechargeable battery provides up to 20 hours continuous
operation.A chargingcableandpoweradapterareincludedin delivery.
SAFETY WARNINGS
Please read these instructions carefully before using the product. They contain
important informationfor the correct use of your product. Pleasekeepthem for future
reference
• The power adapteruses dangerousmains votage. Inexperthandling may result in
electric shock.
• This product is suitable for indoor use only. Protectthe product against high air
humidity, water or heat sources. The recommendedtemperature range is -5 to
+45 0C
• Onlyusethe product accordingtothe instructionsgivenherein.Noguaranteeclaims
for the units andno liabilityfor anyresultingpersonal d amageor materialdamagewill
be acceptedif the product is usedfor otherpurposesthan originallyintended,if it is
notcorrectly connectedor operated,or if itis not repairedin an expertway.
• Unauthorizedrebuildsor modificationsof the product are not permittedfor reasons
of safetyandrenderthewarrantyinvalid
• This product is not a toy. Keepit out of the reachof children and pets Do not leave
packagingmateriallyingaroundcarelessly.
• This device may be used only by persons with sufficient physical, sensorial, and
intellectual abilities and having corresponding knowledge and experience.Other
persons may use this device only if they are supervised or instructed by a person
who is responsiblefortheir safety
• This product is maintenance-free,exceptfor occasional cleaning You can use a
slightlydampenedclothfor cleaning.Neverusealcoholor solvents.Beforecleaning,
disconnectthe productfrom the mains
• Onlyopenthe productto removethe rechargeablebattery.Ifthis product is no longer
working properlyor isvisibly damaged,take it outof operationand consultyour local
dealer.Donotattemptto repairtheproductyourself.
• Handlethe product with care, it can be damagedby impacts, blows, or accidental
falls, evenfrom a low height
• Donotthrowthe batteryorthe productinto afire. Thereis a risk of explosionandfire!
• Neverdamagethe rechargeablebattery. Damagingthe casing of the rechargeable
batterymight causean explosionor afire!
• Lithium batteries can cause serious injuries if short-circuited, overheated or
mechanicallydamaged There is a risk of explosionand fire if the battery casing is
damaged! Only extinguish burning lithium batteries with powder extinguishers or
othersuitableextinguishingagents
• Chargethe rechargeablebattery regu arly, evenif you are not using the product. If
regularly recharged, the battery retains its capacity and is ready to for use for
severalyears andthus extremelyrobust and long-lived
PROTECTING THE ENVIRONMENT
Whento be definitivelyputout of operation,takethe productto a localrecycling
plantfor a disposal which is not harmful to the environment.Devices marked
with this symbol must not be disposed of as householdwaste. Contact your
retailer or local authorities for more information.
You as the end user are required by aw (BatteryOrdinance)to return all used
batteries/rechargeable batteries Disposingof them in the householdwaste is
prohibited. You may return your used batteries free of charge to collection
points in your municipality and anywherewhere batteries/rechargeable batteriesare
sold By disposing of used devices and batteries correctly, you contribute to the
protectionofthe environment
Euroliteis a brand of SteinigkeShowtechnic GmbH • Andreas-Bauer-Str 5 • 97297 Waldbüttelbrunn, Germany
Receiver
OPERATION
31
1
6
1 Setthereceiverinto operation bypressing therecessed on/offbutton(2).TheLED
(4) will briefly flash in red > green > blue and then indicate the battery levelfor 5
seconds. The LEDthen goes out. Briefly press the recessed group button (3) to
display the battery level again for 5 seconds. If the LEDflashes red, the battery
mustbe charged
2 Set the transmitter and receiver to the same transmission group. Six groups are
available(red, green,blue, yellow, cyan, magenta).Tochangethe group of a unit,
briefly pressthe group button (3) repeatedlyuntil the LED(5) lights up in the color
ofthe desiredgroup.
The wireless DMXnetwork is now set up andthe units are paired.The assignment
ofthe receiverto thetransmitter is keptmemorizedevenafter switching off
The group function allows you to operate up to 6 independent DMX wireless
networks in parallel, each with 512 DMX channels. You can also use one
transmitter with severalreceiversin the same group
3 Connect t hereceiver t otheDMXinputofa DMX-controlled u nit TheLED(5)starts
flashing in greenwhen DMXsignals are received
CHARGING
1. Fully chargethe battery before first use and when the battery indicator (4) starts
flashing in red. To chargethe battery, plug in the charging cable and connect the
deviceto the power adapterand a poweroutlet or usea USBpowersource
2. While charging, the LED (4) will show the battery evel when the receiver is
switched on as follows:
= lights solid red
40-70% = flashing green
70-100% = flashing blue
100% = lights solid blue
Whenthe receiver is switched off, the LEDlights up red continuously and goesout
whenful y charged.
3. Thedischargestate is indicated in battery modeasfollows:
100-70% = LEDlights up blue
70-40% = LEDlights up green
40-10% = LEDlights up red
10% = LED flashes red
If the capacity falls below 10%,the LEDflashesfaster and faster untilthe batteryis
exhausted
TECHNICAL SPECIFICATIONS
Powersupply: 5VDC,350mA
Batterypacktype: .Lithiumion3.7V, 380mAh,1 4Wh
Batteryoperation: up to 20 hours
Frequencyrange: 2 402-2 480 GHz,79 channels
Modulation: GFSK
Spreadspectrum: FHSS,1100 channelhops/sec
Sensitivity: -96 dBm
Range: 400m
DMXoutput: 3-pin XLR,female
Pinconfiguration: .1 = ground,
Dimensions: ø18mmx95 mm
Weight: .160g
Subject to change.
www.eurolite.de
4 5 1 XLRjack
2 On/off button
Group button
3
4 Batteryindicator
5 Group indicator
6 Powerinput
signal = signal +
Publ 07/2021
