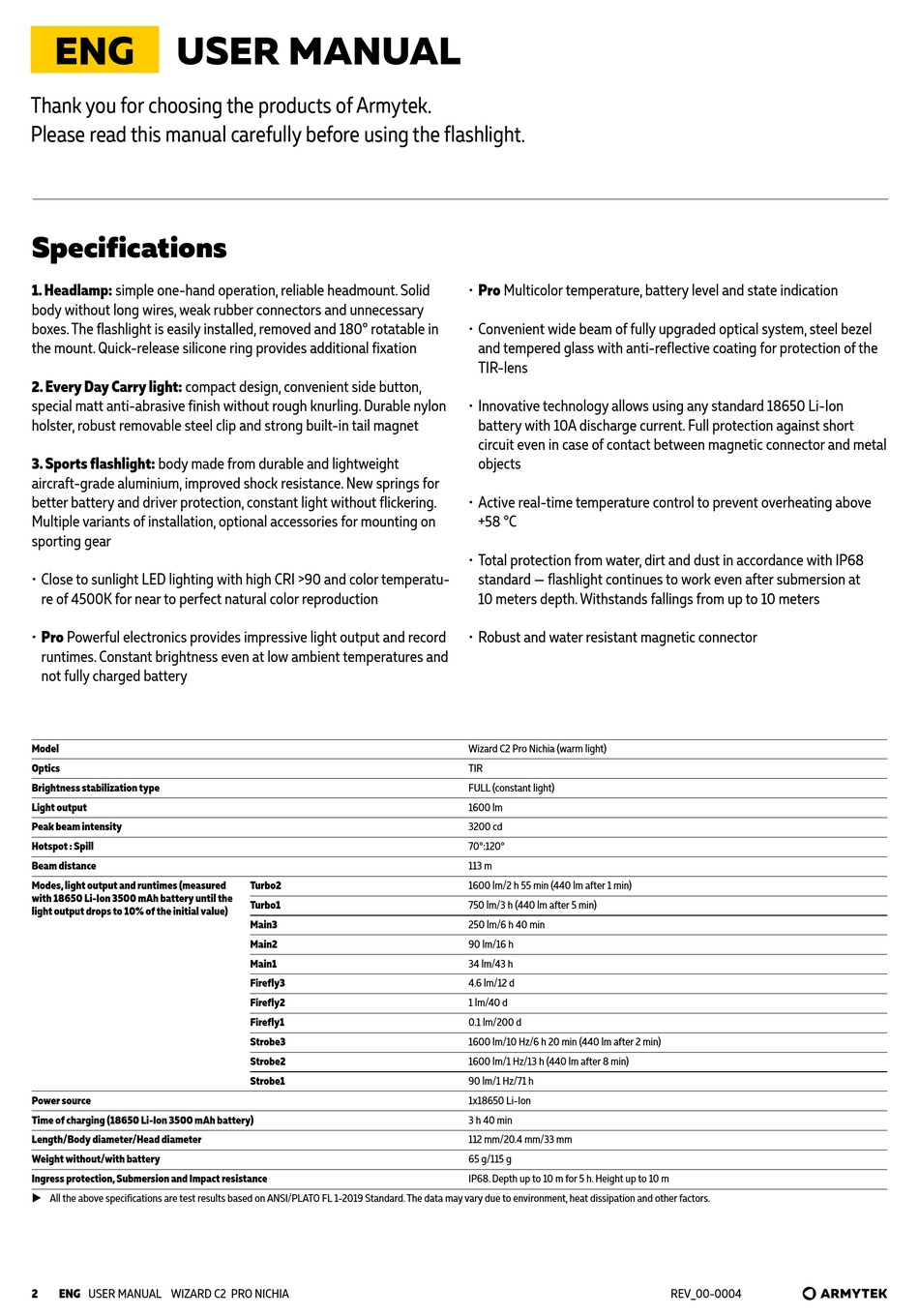

ENG USER MANUAL
Thank you for choosing the products of Armytek.
Please read this manual carefully before using the flashlight.
Specifications
1. Headlamp: simple one-hand operation, reliable headmount. Solid
body without long wires, weak rubber connectors and unnecessary
boxes. The flashlight is easily installed, removed and 180° rotatable in
the mount. Quick-release silicone ring provides additional fixation
2. Every Day Carry light: compact design, convenient side button,
special matt anti-abrasive finish without rough knurling. Durable nylon
holster, robust removable steel clip and strong built-in tail magnet
3. Sports flashlight: body made from durable and lightweight
aircraft-grade aluminium, improved shock resistance. New springs for
better battery and driver protection, constant light without flickering.
Multiple variants of installation, optional accessories for mounting on
sporting gear
• Close to sunlight LED lighting with high CRI >90 and color temperatu-
re of 4500K for near to perfect natural color reproduction
• Pro Powerful electronics provides impressive light output and record
runtimes. Constant brightness even at low ambient temperatures and
not fully charged battery
Model
Optics
Brightness stabilization type
Light output
Peak beam intensity
Hotspot : Spill
Beam distance
Modes, light output and runtimes (measured
with 18650 Li-Ion 3500 mAh battery until the
light output drops to 10% of the initial value)
Power source
Time of charging (18650 Li-Ion 3500 mAh battery)
Length/Body diameter/Head diameter
Weight without/with battery
Ingress protection, Submersion and Impact resistance
X All the above specifications are test results based on ANSI/PLATO FL 1-2019 Standard. The data may vary due to environment, heat dissipation and other factors.
2 ENG USER MANUAL WIZARD C2 PRO NICHIA
Turbo2
Turbo1
Main3
Main2
Main1
Firefly3
Firefly2
Firefly1
Strobe3
Strobe2
Strobe1
• Pro Multicolor temperature, battery level and state indication
• Convenient wide beam of fully upgraded optical system, steel bezel
and tempered glass with anti-reflective coating for protection of the
TIR-lens
• Innovative technology allows using any standard 18650 Li-Ion
battery with 10A discharge current. Full protection against short
circuit even in case of contact between magnetic connector and metal
objects
• Active real-time temperature control to prevent overheating above
+58 °C
• Total protection from water, dirt and dust in accordance with IP68
standard — flashlight continues to work even after submersion at
10 meters depth. Withstands fallings from up to 10 meters
• Robust and water resistant magnetic connector
Wizard C2 Pro Nichia (warm light)
TIR
FULL (constant light)
1600 lm
3200 cd
70°:120°
113 m
1600 lm/2 h 55 min (440 lm after 1 min)
750 lm/3 h (440 lm after 5 min)
250 lm/6 h 40 min
90 lm/16 h
34 lm/43 h
4.6 lm/12 d
1 lm/40 d
0.1 lm/200 d
1600 lm/10 Hz/6 h 20 min (440 lm after 2 min)
1600 lm/1 Hz/13 h (440 lm after 8 min)
90 lm/1 Hz/71 h
1x18650 Li-Ion
3 h 40 min
112 mm/20.4 mm/33 mm
65 g/115 g
IP68. Depth up to 10 m for 5 h. Height up to 10 m
REV_00-0004
