SCANGRIP EX PROOF NOVA-EX Bedienungsanleitung Seite 4

7. Special condition for safe use:
• Repairs Ofthe flameproof joints may only be made by the manufacturer or on behalf Ofthe manufacturer and
on his own responsibility. Repair in compliance With the values in tables I and 2 Of IEC60079 1 is not accepted.
he external earth connection facility shall be connected reliably.
• Fasteners related with flameproof joints shall have property class at least A2-70.
he toque for the screws of the terminal box shall be in the range of 22±2kgf.
• When installation, use and maintenance, observe following standards IEC60079 10, IEC60079 14,
EC6007g 17 and 60079
he connection to the power source shall be located in a safe area. If the connection has to be located in Ex-zones,
certified connectors or junction box with enough rating shall be used.

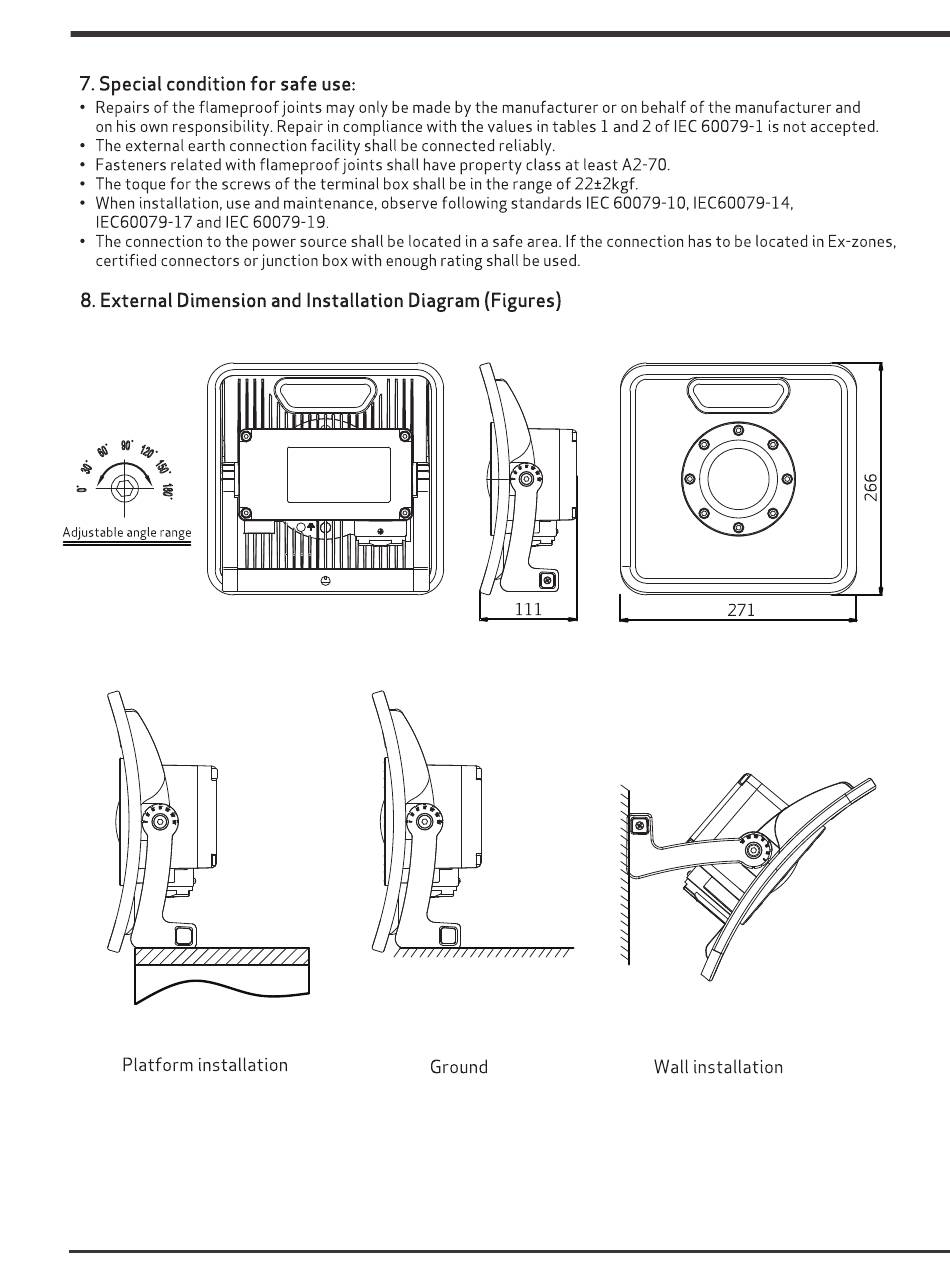

8. External Dimensionand Installation Diagram (Figures)
Platform installation
O
Ground
o
Wall installation
