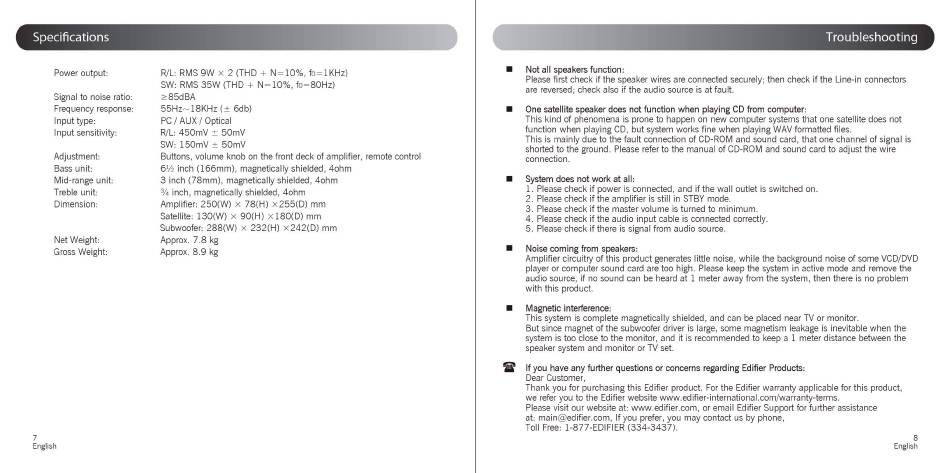

Specifications
Power output: R/L: RMS 9W x 2 (THD +
SW: RMS 35W (THD + N
Signal to noise ratio: 285dBA
Frequency response: 55Hz-18KHz
PC / AUX / optical
Input type:
Input sensitivity: R/L: 450mV ± 50mV
SW: 150mV ± 50mV
Adjustment: Buttons, volume knob on the front deck of amplifier, remote control
Bass unit: 61/2 inch (166mm),
Mid-range unit: 3 inch (78mm), magnetically shielded, 40hm
Treble unit: 3/4inch, magnetically shielded, 40hm
Dimension: Amplifier: 250(W) x 78(H)
Satellite: 130(W)
Subwoofer: 288(W)
Net Weight: Approx. 7.8 kg
Gross Weight: Approx. 8.9 kg
7
English
fo=1KHz)
10%, fo-80Hz)
6db)
magnetically shielded, 40hm
mm
x 90(H) mm
x 232(H) mm
Not all speakers function:
Please first check if the speaker wires are connected securely; then check if the Line-in connectors
are reversed; check also if the audio source is at fault.
One satellite speaker does not function when playing CD from computer:
This kind of phenomena is prone to happen on new computer systems that one satellite does not
function when playing CD, but system works fine when playing WAV formatted files.
This is mainly due to the fault connection of CD-ROM and sound card, that one channel of signal is
shorted to the ground. Please refer to the manual of CD-ROM and sound card to adjust the wire
connection.
System does not work at all:
1. Please check if power is connected, and if the wall outlet is switched on.
2. Please check if the amplifier is still in STBY mode.
3. Please check if the master volume is turned
4. Please check if the audio input cable is connected correctly.
5. Please check if there is signal from audio source.
Noise coming from speakers:
Amplifier circuitry of this product generates little noise, while the background noise of some VCD/DVD
player or computer sound card are too high. Please keep the system in active mode and remove the
audio source, if no sound can be heard at 1 meter away from the system, then there is no problem
with this product.
Magnetic interference:
This system is complete magnetically shielded, and can be placed near TV or monitor.
But since magnet of the subwoofer driver is large, some magnetism leakage is inevitable when the
system is too close to the monitor, and it is recommended to keep a 1 meter distance between the
speaker system and monitor or TV set.
If you have any further questions or concerns regarding Edifier Products:
Dear Customer,
Thank you for purchasing this Edifier product. For the Edifier warranty applicable for this product,
we refer you to the Edifier website www.edifier-international.com/warranty-terms.
Please visit our website at: www.edifier.com, or email Edifier Support for further assistance
at: main@edifier.com, If you prefer, you may contact us by phone,
Toll Free: 1-877-EDIFIER (334-3437).
Troubleshooting
to minimum.
