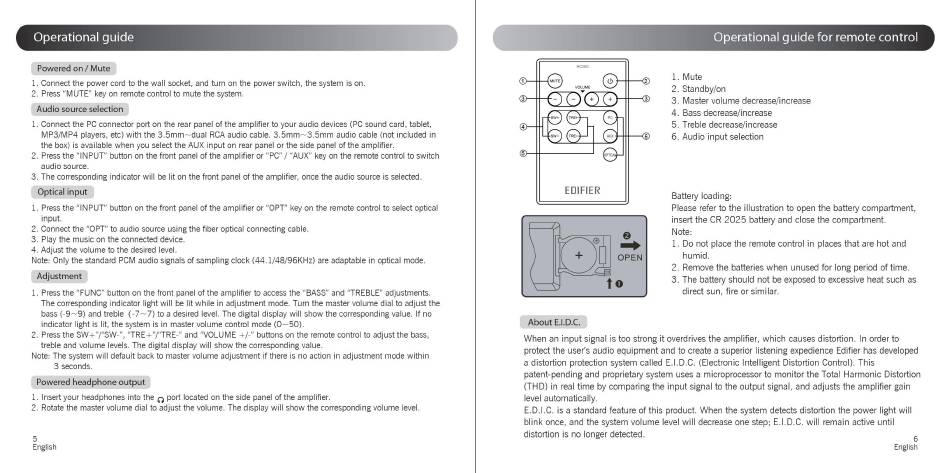

Operational guide
Powered on / Mute
1. Connect the power cord to the wall socket, and turn on the power switch, the system is on.
2. Press "MUTE" key on remote control to mute the system.
Audio source selection
1. Connect the PC connector port on the rear panel of the amplifier to your audio devices (PC sound card, tablet,
MP3/MP4 players, etc) with the 3.5mm—dual RCA audio cable. 3.5mm—3.5mm
the box) is available when you select the AUX input on rear panel or the side panel of the amplifier.
2. Press the "INPUT" button on the front panel of the amplifier or "PC" / "AUX" key on the remote control to switch
audio source.
3. The corresponding indicator will be lit on the front panel of the amplifier, once the audio source is selected.
Optical input
1. Press the "INPUT" button on the front panel of the amplifier or "OPT" key on the remote control to select optical
input.
2. Connect the "OPT" to audio source using the fiber optical connecting cable.
3. Play the music on the connected device.
Adjust the volurne to the desired level.
Note: Only the standard PCM audio signals of sampling clock (44.1/48/96KHz)
Adjustment
1. Press the "FUNC" button on the front panel of the amplifier to access the "BASS" and "TREBLE" adjustments.
The corresponding indicator light will be lit while in adjustment mode. Turn the master volume dial to adjust the
bass (-9—9) and treble (-7—7) to a desired level. The digital display will show the corresponding value. If no
indicator light is lit, the system is in master volume control mode (0—50).
2. Press the SW+"/"SW-", "TRE+"/"TRE-" and "VOLUME +/-" buttons on the remote control to adjust the bass,
treble and volume levels. The digital display will show the corresponding value.
Note: The system will default back to master volume adjustment if there is no action in adjustment mode within
3 seconds.
Powered headphone output
1. Insertyour headphonesinto the O port locatedon the side panel of the amplifier.
2. Rotate the master volume dial to adjust the volume. The display will show the corresponding volume level.
5
English
audio cable (not included in
are adaptable in optical mode.
RC20C
1. Mute
1 MUTE 2
2. Standby/on
VOLLNE
ere
3 3
3. Master volume decrease/increase
4. Bass decrease/increase
SW+ TRE+
Treble decrease/increase
5.
4
6. Audio input selection
AUX 6
5
EDIFIER
Battery loading:
Please refer to the illustration to open the battery compartment,
insert the CR 2025 battery and close the compartment.
Note:
1. Do not place the remote control in places that are hot and
humid.
OPEN
2. Remove the batteries when unused for long period of time.
3. The battery should not be exposed to excessive heat such as
to
direct sun, fire or similar.
About E.I.D.C.
When an input signal is too strong it overdrives the amplifier, which causes distortion. In order to
protect the user's audio equipment and to create a superior listening expedience Edifier has developed
a distortion protection system called E.I.D.C. (Electronic Intelligent Distortion Control). This
patent-pending and proprietary system uses a microprocessor to monitor the Total Harmonic Distortion
(THD) in real time by comparing the input signal to the output signal, and adjusts the amplifier gain
level automatically.
E.D.I.C. is a standard feature of this product. When the system detects distortion the power light will
blink once, and the system volume level will decrease one step; E.I.D.C. will remain active until
distortion is no longer detected.
Operational guide for remote control
6
English
