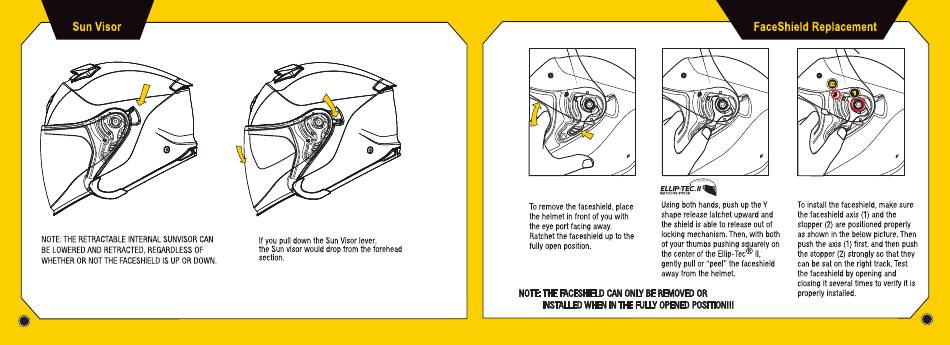

Sun Visor
EN
NOTE: THE RETRACTABLE INTERNAL SUNVISOR CAN
BE LOWERED AND RETRACTED, R EGARDLESS OF
WHETHER OR NOT THE FACESHIELD IS UP OR DOWN.
5
O
If you pull downthe Sun Visor lever,
the Sun visor would drop from the forehead
section.
o
o
o
ELLIP-T
RATCHETING SYSTEM
Using both hands, push up the Y
To removethe faceshield,place
shape release latchet upward and
the helmet in front of you with
the shield
is able to release
the eye port facing away.
locking mechanism. Then, with both
Ratchetthe faceshield up to the
of your thumbs pushing squarely on
fully open position.
thecenter oftheEllip-Tec@
gently pull or "peel" the faceshield
away from the helmet.
NOTE: THE FACESHIELD CAN ONLY BE REMOVED OR
INSTALLED WHEN IN THE FULLY OPENED POSmON!!!
FaceShield Replacement
o
o
To install the faceshield, make sure
the faceshield axis (1) and the
out of
stopper(2) are positionedproperly
as shown in the below picture. Then
push the axis (1) first, and then push
II
the stopper (2) stronglyso that they
can be sat on the right track. Test
the faceshield by opening and
closing it severaltimes to verify it is
properly installed.
EN
EN
6
