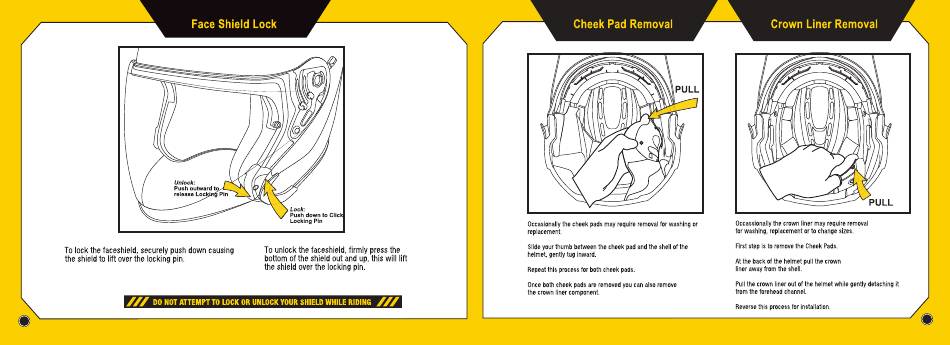

Face Shield
EN
EN
Unlock:
Push outward
release Loc
To lock the faceshield,securelypush down causing
the shield to lift over the locking pin.
DO NOT ATTEMPT
3
Lock
to
Pin
Lock:
Push down to Clic
Locking Pin
To unlock the faceshield,firmly press the
bottom of the shield out and up,this will lift
the shield over the locking pin
TO LOCK OR UNLOCK YOUR SHIELD WHILE RIDING
Cheek Pad Removal
PULL
Occasionally the cheek pads may require removal for washing or
replacement.
Slide your thumb between the cheek pad and the shell of the
helmet, gently tug inward.
Repeat this process for both cheek pads.
Once both cheek pads are removed you can also remove
the crown liner component.
Crown Liner Removal
L)
PULL
Occassionallythe crown liner may require removal
for washing, replacement or to change sizes.
First step is to remove the Cheek Pads.
At the back of the helmet pull the crown
liner away from the shell.
Pull the crown liner out of the helmet while gently detaching it
from the forehead channel.
Reversethis process for installation
