S1CEa tole M ECT Aotorole
RG-F552E/554E -
PLEASE REFER TO THE OPERATION MANUAL.

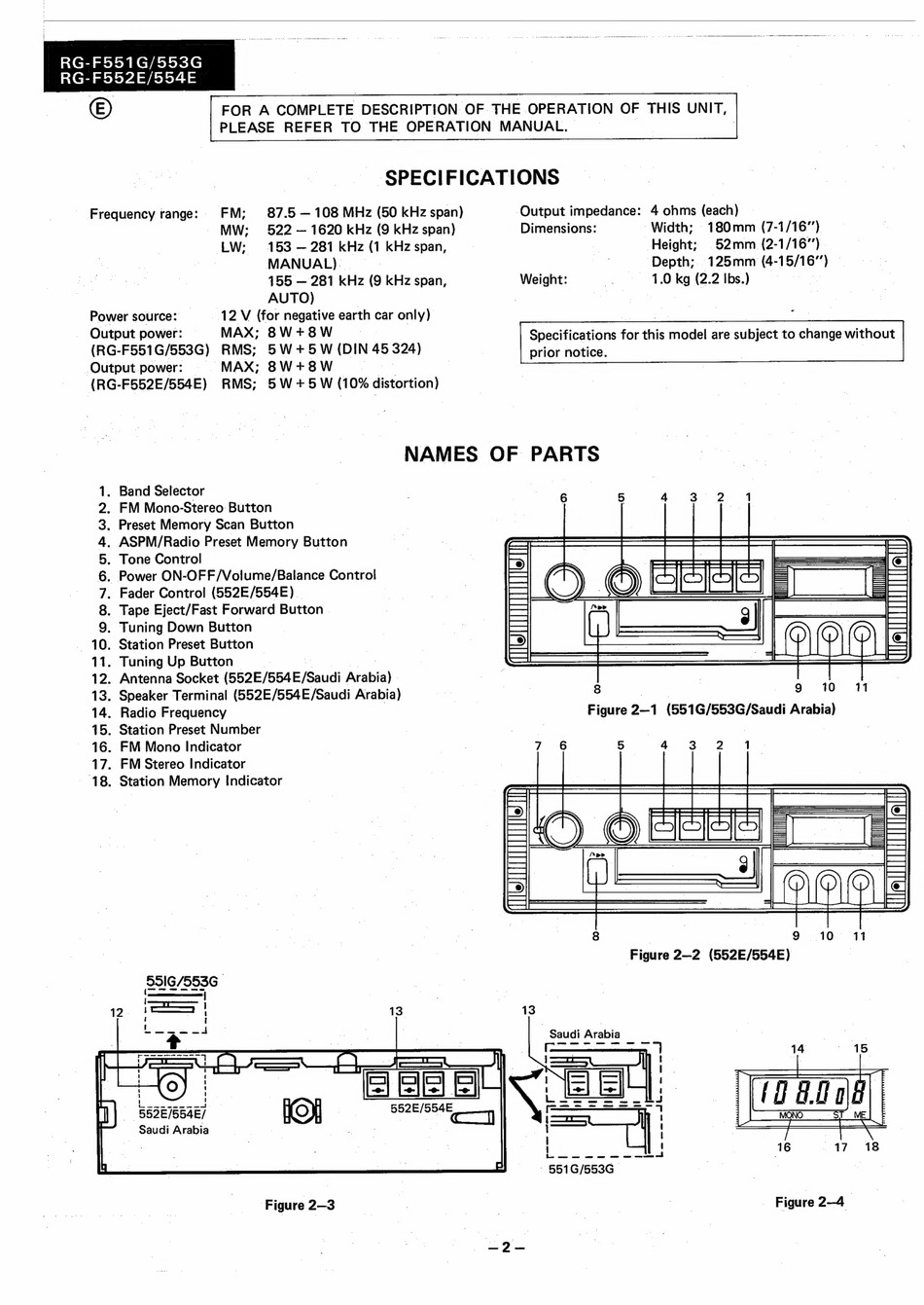

SPECIFICATIONS
- Frequency range: FM;
87.5 — 108 MHz (50 kHz span)
Output impedance:
4 ohms (each)
MW;
522 — 1620 kHz (9 kHz span)
Dimensions:
Width;
180mm (7-1/16")
LW;
= 153 — 281 kHz (1 kHz span,
7 Height;
52mm (2-1/16") .
: MANUAL)
©
7
'Depth; 125mm (4-15/1 6)
155 — 281 kHz (9 kHz span, Weight: 4.0 kg (2.2 Ibs.) |
AUTO)
|
|
Oe
O
Power source:
12. V (for negative earth car only)
ie es
| 7
— Output power:
= MAX; BW+8W
Specifications for this model are subject to change without
(RG-F551G/553G) RMS; 5W +5 W (DIN 45324) |
SFiGk notice:
|
Output power:
© MAX; 8W+8W
|
|
(RG- F552E/554E) RMS; 5W+5W (10% distortion)
NAMES OF PARTS
. Band Selector
FM Mono-Stereo Button
Preset Memory Scan Button
ASPM/Radio Preset Memory Button
Tone Control
. Power ON-OFF/Volume/Balance Control
. Fader Control (552E/554E) ©
. Tape Eject/Fast Forward Button.
. Tuning Down Button
10. Station Preset Button
11. Tuning Up Button :
12. Antenna Socket (552E/S54E/Saudi Arabia) |
:
13. Speaker Terminal (552E/554E/Saudi Arabia) <=
* 8
——
9°70 11
14. Radio Frequency
15. Station Preset Number
16. FM Mono Indicator
17. FM Stereo Indicator
18. Station Memory Indicator
OONAAPYWN>
Figure 2—2 (552E/554E)
55IG/5536
13
- Saudi Arabia
. B52 E/ S54E/
Saudi Arabia
Figure 2—3 | | | : : Figure 2-4
