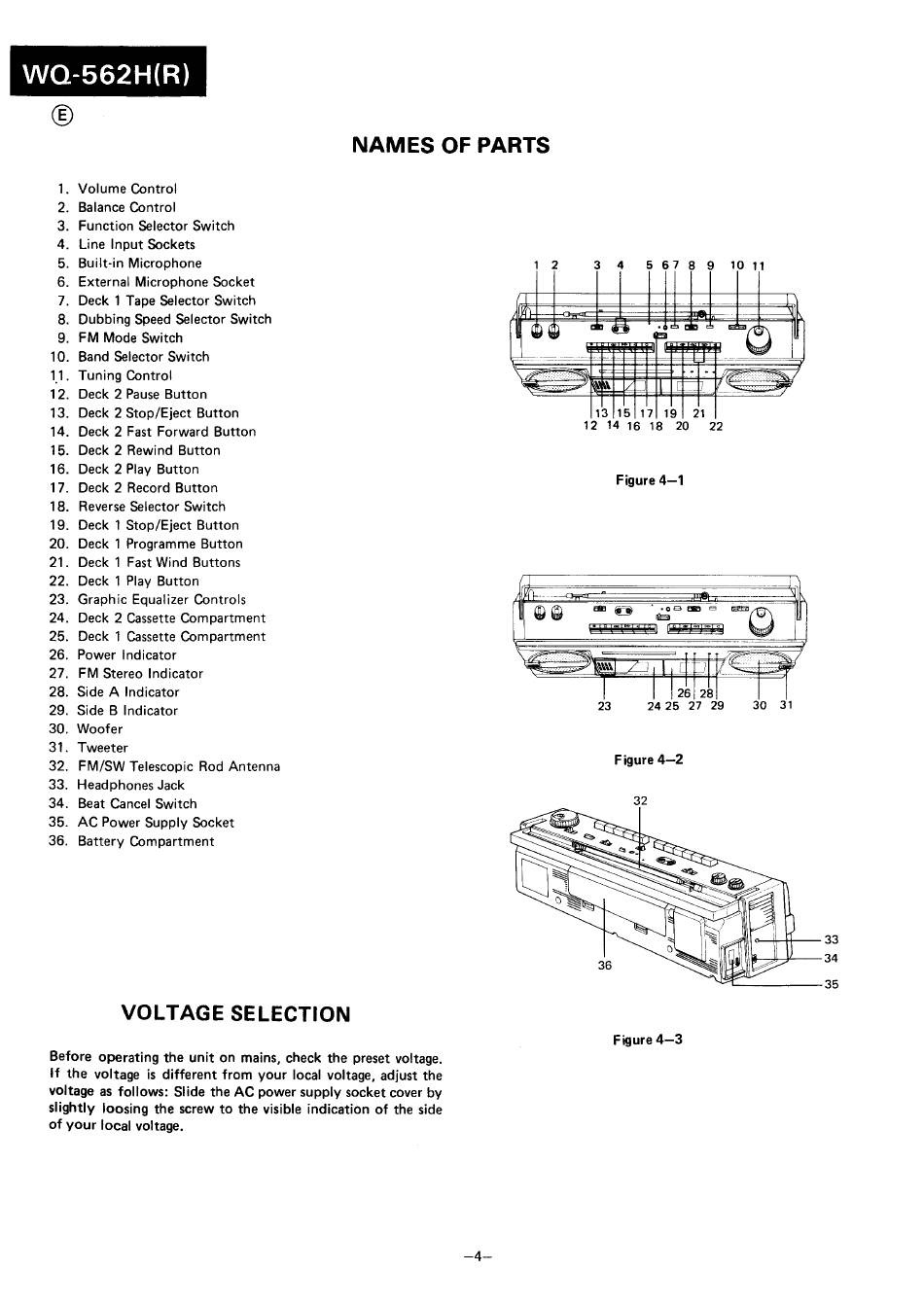

WQ-562H(R)
Volume Control
2. Balance Control
3. Function Selector Switch
Line Input Sockets
4.
5. Built-in Microphone
External Microphone
6.
7. Deck I Tape Selector Switch
8. Dubbing Speed Selector Switch
9. FM Mode Switch
10. Band Selector Switch
II. Tuning Control
12. Deck 2 Pause Button
Deck 2 Stop/Eject Button
13.
Deck 2 Fast Forward
14.
Deck 2 Rewind Button
15.
16. Deck 2 Play Button
Deck 2 Record Button
17.
Reverse Selector Switch
18.
Deck I Stop/Eject Button
19.
20. Deck I Programme Button
21. Deck I Fast Wind Buttons
22. Deck I Play Button
23. Graphic Equalizer Controls
24. Deck 2 Cassette Compartment
Deck I Cassette Compartment
25.
26. Power Indicator
FM Stereo Indicator
27.
28. Side A Indicator
29. Side B Indicator
30. Woofer
31. Tweeter
32. FM/SW Telescopic Rod Antenna
33. Headphones Jack
34. Beat Cancel Switch
35. AC Power Supply Socket
36.
Battery Compartment
VOLTAGE
Before operating the unit on mains, check the presetvoltage.
If the voltage is different from your local voltage, adjust the
voltage as follows: Slide the AC power supply socket cover by
slightly loosing the screw to the visible indication of the side
of your local voltage.
NAMES
Socket
Button
SELECTION
OF PARTS
2 3
13
12 14 16
23
Figure 4-2
o
36
Figure 4—3
56789
4 10 11
15 17 19 21
18 20 22
Figure
26 28
2425 27 29 30 31
32
33
34
35
