EMKE F11 Installationsanleitung Seite 5

SHOWER SYSTEM

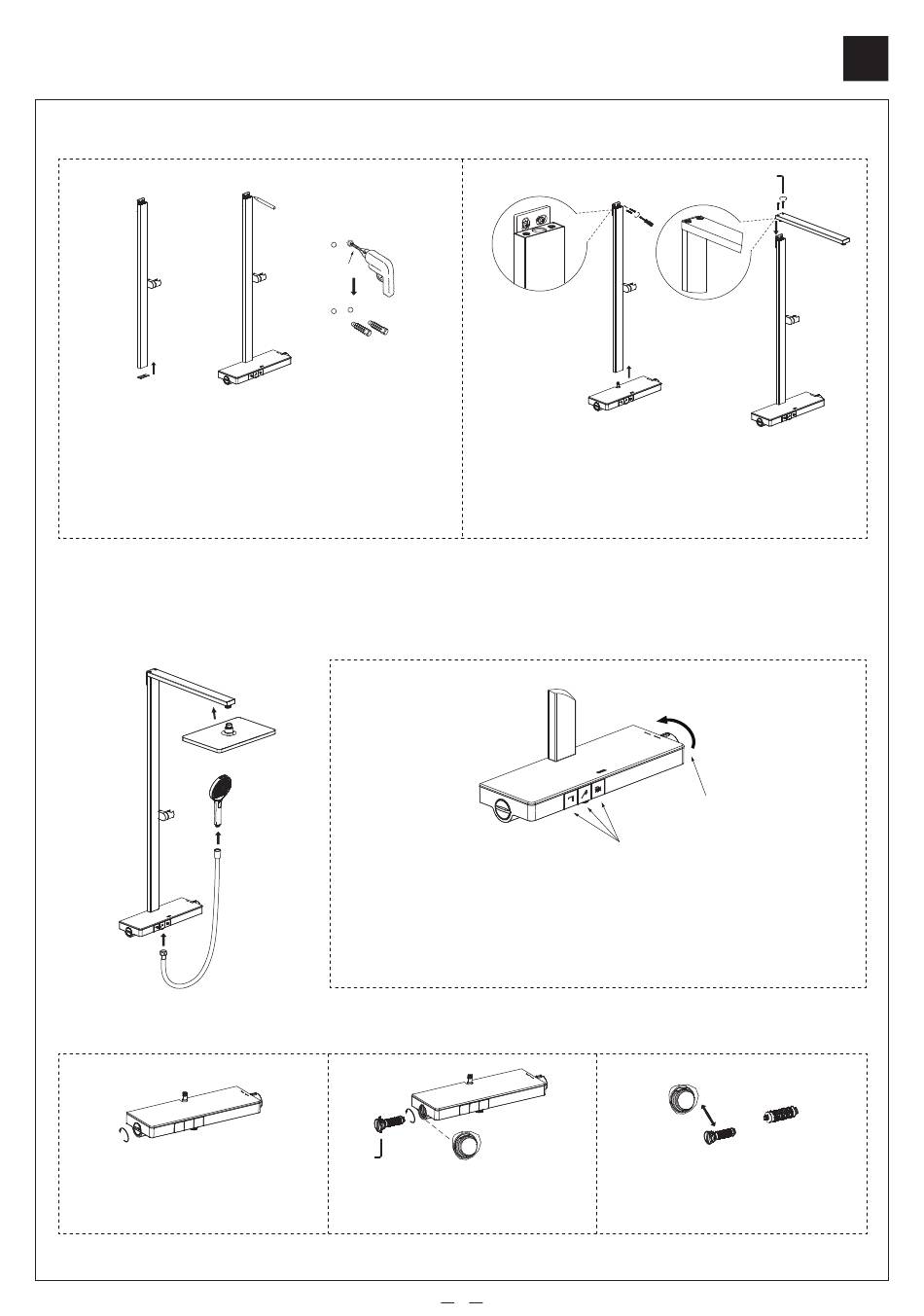

Step 3: Assemble the pipe for the shower head
Figure2
a) Install the rubber seal into the bottom of the raiser rail (Figure 2).
b) Connect the raiser rail to the thermostatic panel and Vmark
the installation position (Figure 3).
c) Remove the raiser rail and drill holes on the marked position
(Figure 4).
Step 4: Assemble the shower head (Make sure there is a washer inside of
the shower head)
a) Connect the hose to the thermostatic shower panel and connect the shower head on the other end.
b) Connect the overhead shower to the arm pipe.
How to change the filter:
a) Twist the left knob of the thermo-
static panel anticlockwise in 90°.
Please cut off the water supply when changing the filter to pervert the accident. After the filter changed, test the water before use.
Φ6mm
Figure 3 Figure 4
Function Guide:
A. Adjust the water temperature:
Press the button and turn the temperature knob up and down to
increase and decrease the temperature.
B. Switch between the hand shower/overhead shower/bottom tap:
press the hand shower / overhead shower and bottom tap button.
b) Pull out the filter and take off the
screws. Then replace the filter.
Figure 5
d) Install the raiser rail to the thermostatic panel and screw it
in the wall (Figure 5).
e) Install the arm pipe and secure it by Allen key (Figure 6).
B
c) Secure the filter with screws.
d) Push the filter back into the thermostatic
panel and turn clockwise to secure.
5
EN
Figure 6
A
